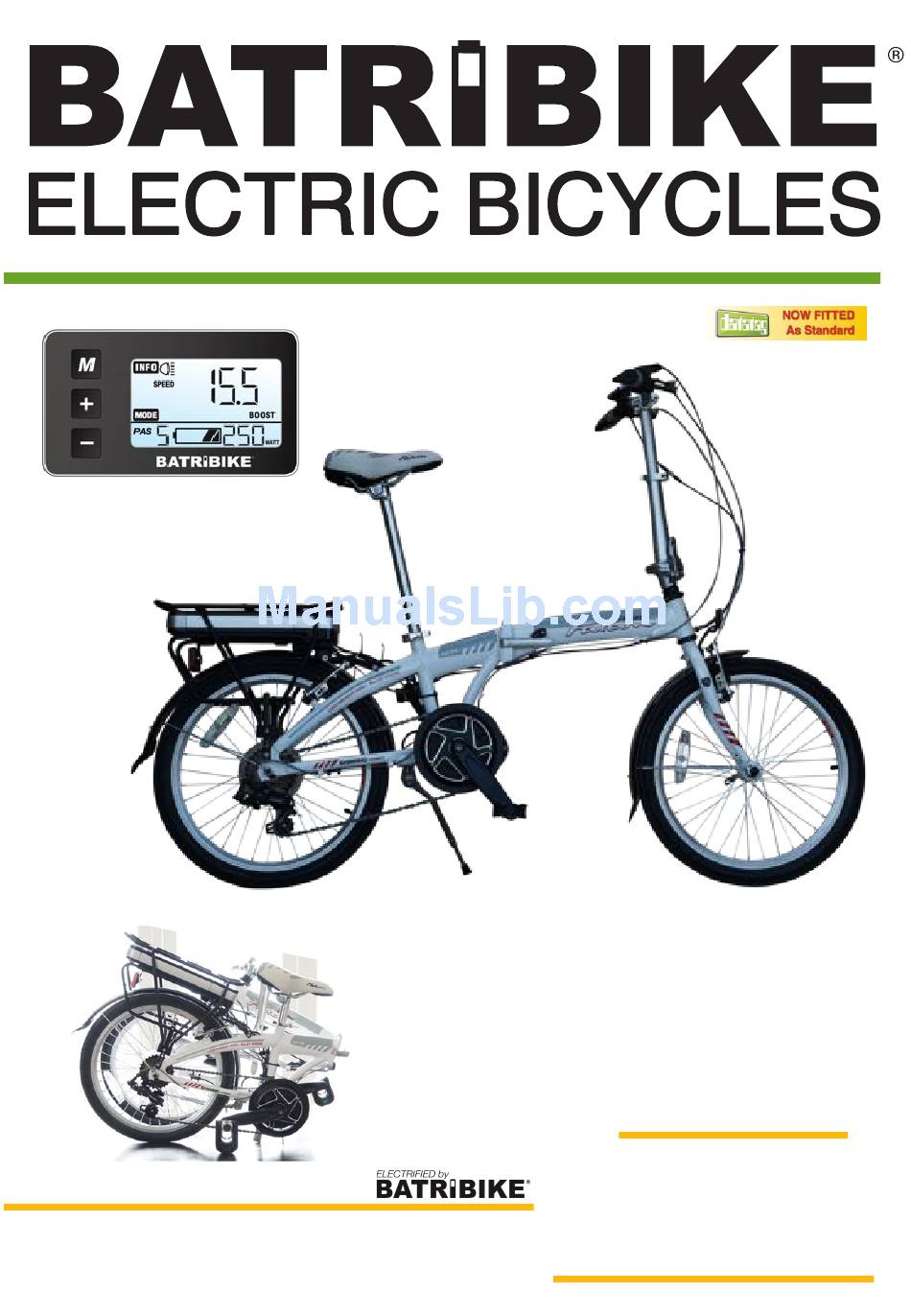

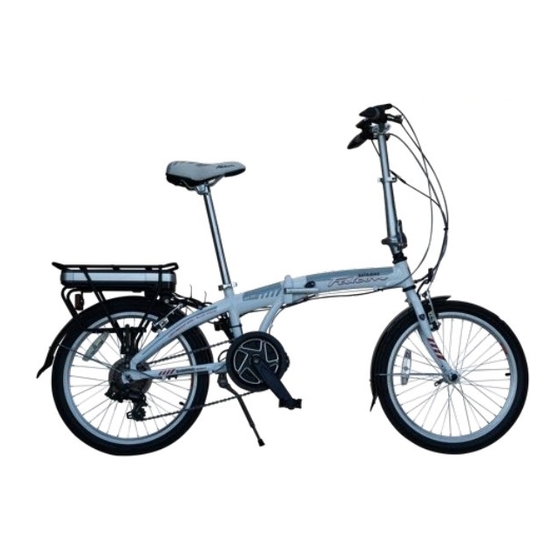

- Page 1 FALCON Owner Manual Crank Motor...
- Page 2 DATATAG ETCH NUMBER:- IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.
-
Page 3: Table Of Contents
Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge. -
Page 4: Parts Identification
PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Frame Fold Lever Bell Safety Lock Lever Front Brake Lever Handlebar Fold Lever LCD (Display) Front Vee Brake Handlebar Adjust (rotate) - Page 5 ON BOTTOM BRACKET HOUSING ON TOP OF FRAME...
-
Page 6: Battery Care & Charging
BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. Storage Batteries do not like to be stored in very hot or very cold conditions or to be subject to conditions of high moisture. - Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.
-
Page 8: Using The Power Assistance
Usage Your BATRIBIKE Electric Bicycle can be used as a normal pedal cycle by simply not switching on the battery. (or using in Zero Assist - see below) Display Information Areas FUNCTION CYCLE ASSIST TYPE COMPUTER LEVEL Buttons POWER DOWN... - Page 9 ELECTRIC BICYCLE FUNCTIONS Switching On To use under electric power, switch on at the power switch on the underside of the battery, turn on the power meter by pressing the button on the top of the battery, then press the POWER button on the handlebar LCD display.
- Page 10 Battery Meter The LCD shows the charge remaining in the battery in the lower right of the display. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE FLASHING...
- Page 11 Speed Display The top right large digits will normally display the current speed of the bicycle. For the UK market this is set to show miles per hour (MPH). The display is accurate to about 10% when the wheel size is correctly calibrated and the tyre inflated as per the manufacturers recommendations.
- Page 12 Pedal Assistance There are 5 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (ECO), to Level 5 (BOOST). The motor will then be activated upon pedalling. There is a rotation sensor located near the crank which senses when the pedals are being used.
- Page 13 Weather and terrain will affect the performance. In hilly areas, or when the bike is heavily loaded, there will be a significant increase in the power used from the battery and hence the range will decrease accordingly. A lightly loaded bike will achieve higher performance levels.
- Page 14 No Assistance - Normal Pedal Bicycle If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
-
Page 15: Programmable Functions
Programmable Functions As delivered the BATRIBIKE Falcon is set up to use straight away in the most popular configuration, but there are a number of functions which can be tailored to suit the individual rider. These are user set as per the following sections. - Page 16 Backlight Contrast The backlight of the display can be set to one of three values. level 3 is the brightest, level 2 medium and level 1 is the lowest setting. Adjust to suit for night time riding. To change the level use the UP and DOWN buttons.
- Page 17 Max Speed There is a Max Speed setting available on the User Menus. Setting values above 25 has no effect on the performance of the bike as the system hardware has been internally set to cut off the motor assistance at 25 km/h and cannot be overridden. The default setting is 25 to comply with UK and EU Electric Bike Regulations.
-
Page 18: Cycle Computer Functions
CYCLE COMPUTER The BATRIBIKE Pro Range has useful Cycle Computer functions built in. There is a built in sensor and pickup located in the rear wheel and frame which activates the speed and distance readings. Initial Display (SPEED) When first turned on... - Page 19 Average Speed since Current Speed in MPH last reset Maximum Speed since Trip Time since last reset last reset Trip Distance in Miles Total Distance in Miles (Cannot be reset)
- Page 20 Resetting the Trip To reset the TRIP Distance and Trip Time at the start of a journey, ensure that either TRIP or TRIP TIME is showing on the display and simply press and hold the MODE and DOWN buttons simultaneously, and hold for 2 seconds. Average Speed and Maximum Speed reset automatically on power down.
-
Page 21: Troubleshooting
TROUBLESHOOTING Diagnostic Error Messages The display can also show diagnostic information in the event of a malfunction. If an error occurs the display will show a code as in the example shown. Make a note of the error number and turn off the bicycle power at both the LCD and the battery switch. -
Page 22: Standard Bicycle Functions
STANDARD BICYCLE FUNCTIONS Gears The FALCON is provided with 7 speed Shimano RevoShift gears. To change gear you use the right handlebar twist selector. Gear number 1 is low for hills and rough terrain and gear 7 is high for normal road use. An indicator window shows the selected gear. - Page 23 The luggage rack provided is designed to carry a maximum load of 25kg. Make sure that any items carried are securely strapped and nothing is able to get caught in the rear wheel. All other operation of your BATRIBIKE Electric Bicycle is as per a normal pedal cycle.
- Page 24 Quick Release fittings for Seat and Handlebar heights With the locking lever in the loose position, tighten the nut until finger tight. The final tightening is done by moving the lever to the locked position. To undo move the lever to the loose position to enable height adjustment.
- Page 25 3. FOLD HANDLEBARS Loosen the clamp and fold in the direction shown. Take care not to trap the wires and cables. Slide locking latch upwards Fold down locking lever Allow handlebars to fold down Reverse procedure to return bicycle to riding position.
-
Page 26: Datatag
® The Datatag UV “Stealth” PRO Cycle System is ideal for BATRIBIKE Electric Bicycles and is a Police Preferred Crime Prevention Product. The system protects your bicycle frame, forks and battery, plus the Datadots® are used to mark many of your electric and non-electric cycle components. - Page 27 Number, found on the label attached to your frame, and the Datatag Stealth Etch Code marked on the frame, forks and battery. (Only visible in UV light). You also need the bike Serial Number. This is a separate registration system to our Batribike Warranty Registration.
-
Page 28: Maintenance Schedule
Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable. - Page 29 (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures The tyres should be pumped up to within the range stated on the sidewall. This should be regularly checked as running with the correct pressures will ensure maximum range from the battery.
-
Page 30: Special Battery Features
SPECIAL BATTERY FEATURES Battery Meter CLICK ONCE The battery has a useful meter TO TURN ON located on the top surface. This is handy when the battery is not fitted to the bicycle as it gives an indication of resting charge level. - Page 31 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
-
Page 32: Warranty
Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●... -
Page 33: Important Notice
6. In the unlikely event of a battery failure, the battery must be returned to Batribike for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer. - Page 34 FALCON Technical Specification...
- Page 36 BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow Lincoln BATRIBIKE are LN1 2AH Members of the Bicycle Association Phone: 01427 787774 of Great Britain E-mail: support@batribike.com ----- USER MANUAL FALCON - ISSUE 1 - ©2016 Fallowgate Limited -----...
