Owner
Manual
ELECTRIC BICYCLES
Hand Built in Europe
batribike.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Delta and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Batribike Delta

Summary of Contents for Batribike Delta

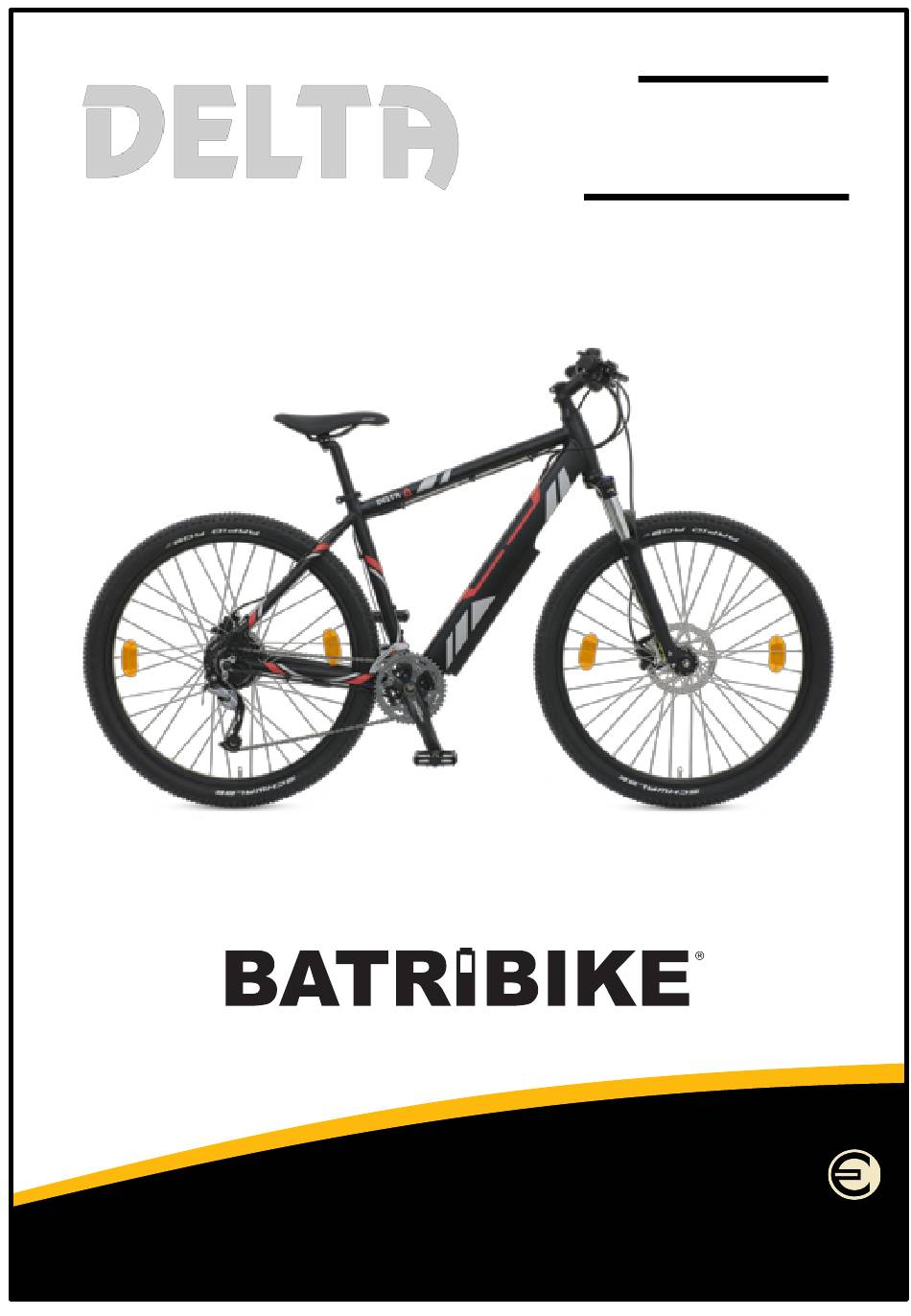

  • Page 1 Owner Manual ELECTRIC BICYCLES Hand Built in Europe batribike.com...
  • Page 2 YEAR IMPORTANT PLEASE READ THIS MANUAL FULLY BEFORE USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.

  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.

  • Page 4: Parts Identification

    PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Rear Brake Lever Display (Mini LCD shown) Suspension Lock Out Bell Front Tyre 29 x 2.25 (Schwalbe) Front Brake Lever Suspension Forks Throttle (Pedalling Only) / Walk Assist...
  • Page 5 OTHER SIDE NOT USED ON DELTA HANDLEBAR DISPLAY OPTIONS STANDARD FITMENT (Mini LCD) SHOWN LEFT CENTRE LCD (NOT SHOWN) ALSO AVAILABLE AS UPGRADE NOT USED ON DELTA...

  • Page 6: Battery Care & Charging

    BATTERY CARE & CHARGING Your Batribike Electric Bicycle uses a Lithium battery for it's power and the following points will directly affect battery life and performance. First time use Your battery will be supplied in a state of sleep from the factory. The first time you use the battery it requires activation by being fully charged.
  • Page 7 Using the Charger Two types of battery charger are used by BATRIBIKE. (Only one will be supplied). Both have a charge light which will display RED when charging and change to GREEN when the battery is charged. The alternative type charger also has a second light which shows RED when mains power is applied.

  • Page 8: Using The Power Assistance

    Usage Your BATRIBIKE electric bicycle has a choice of display options available. For the DELTA the Mini LCD type is fitted as standard to the bike. Mini LCD See page 10 for operation The operation of the Mini LCD system has four selectable POWER levels.
  • Page 9 Display Options Centre LCD See separate manual for this upgrade. The Centre LCD system provides more power levels than the Mini LCD and a larger display makes it easier to read. This is available as an easy to fit upgrade.
  • Page 10 Mini LCD Operation Switching On To use under electric power, switch on by pressing and holding the POWER button on the handlebar unit until the display lights. Control Buttons By means of the three buttons, UP, DOWN and MODE, on the handlebar mounted display unit, the various functions of the power controller can be utilised.
  • Page 11 Battery Meter To the left of the LCD is the battery meter which shows the charge remaining in the battery. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE REMAINING...
  • Page 12 Pedal Assistance There are 4 levels of pedal assistance available from the motor. Using the UP and DOWN buttons you can select from Level 1 (Lowest), to Level 4 (Highest). The motor will then be activated upon pedalling. RANGE SHOWN WITH PEDAL ASSISTANCE FROM THE MOTOR STANDARD BATTERY LEVEL / RANGE...
  • Page 13 No Assistance - Normal Pedal Bicycle If the assistance level is set to ZERO, then the motor will not be turned on. Your BATRIBIKE will now act and feel like a normal bicycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise purposes.
  • Page 14 CYCLE COMPUTER The BATRIBIKE mini LCD has useful Cycle Computer functions built in. Initial Display (SPEED and ODO) When first turned on the display shows the Speed in the top of the display, and the Total Distance (ODO) in the lower part.
  • Page 15 Resetting the Trip To reset the Trip Distance at the start of a journey simply press and hold the MODE button until the Trip display resets to zero. The Odometer distance displays the total distance travelled by the bicycle since leaving the factory and cannot be reset. Setting Distance Units (Miles or Km) The display can be changed to show distances and speeds in Miles or Kilometres.
  • Page 16 If you change the tyre size then the display will need to be reset to suit the new circumference. This will ensure that the speed and distance readouts are as accurate as possible. TOGETHER Value for DELTA with standard tyre is L230 (Schwalbe 57-622 Rapid Rob) Set first digit Set second digit...

  • Page 17: Troubleshooting

    TROUBLESHOOTING Diagnostic Error Messages If an error occurs the Mini LCD display will show a code as in the example shown. Make a note of the error number and turn off the bicycle power at the LCD. After 2 minutes turn on the power again. If the code re-occurs contact your dealer for assistance.

  • Page 18: Standard Bicycle Functions

    STANDARD BICYCLE FUNCTIONS Gears Your BATRIBIKE is provided with 27 speed Shimano derailleur gears with twin lever gear changers. To change gear you use the right handlebar levers for the rear 9 speed and the left handlebar levers for the front 3 speed (chainwheel).
  • Page 19 Braking To stop, cease pedalling and pull the brake levers. Also ensure that the throttle is not operated. Remember that the DELTA is equipped with powerful hydraulic brakes and will stop quickly. Braking will be less effective in wet conditions and your riding style should be adjusted accordingly.

  • Page 20: Adjusting To Suit The Rider

    The height of the saddle can be adjusted to suit the rider. If you do not feel confident with making these adjustments then your BATRIBIKE Dealer will be able to set up the bike initially. The saddle height is adjusted...
  • Page 21 Suspension Forks The DELTA is equipped with Suspension Forks with a Hydraulic Lock-Out. Using the blue lever on top of the right fork, the forks can be locked to disable the suspension. If the lever is turned fully clockwise then the forks will be locked.

  • Page 22: Removing The Battery

    Removing the Battery To remove the battery, turn off at the handlebar display, unlock the battery using the key provided. Push the battery locking tab downwards away from the battery and using the finger insert pull the lower part of the Refitting the Battery To refit the battery, simply reverse the above procedure.
  • Page 23 Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.

  • Page 24: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
  • Page 25 After 3,000 miles (5,000 km) (or YEARLY if sooner) ● General inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. Tyre Pressures Recommended Tightening Torques Item Torque Item Torque The tyres should be...

  • Page 26: Warranty

    Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be obtained from your local cycle shop. In the event of a Warranty claim ●...
  • Page 27 5. In the unlikely event of a battery failure, the battery must be returned to Batribike, via your Batribike dealer for testing. If upon testing it is found that the above conditions have not been met then the warranty will not apply and the cost of replacement and carriage will be payable by the Customer.

  • Page 28: Specifications

    DELTA - Specifications (SUBJECT TO CHANGE WITHOUT NOTICE) MOTOR GEARS 250W Rear Hub mounted 27 Speed (9 x 3) Promovec Motor with 3 year Warranty Shimano Acera Derailleur Gears BRAKES WEIGHT of BIKE Shimano hydraulic disc brakes front 18.1 kg (39.9 lbs) without battery and rear 20.5 kg (45.2 lbs) with Standard...
  • Page 32 Batribike Limited Unit 4, Ingleby Grange Ingleby Lincoln BATRIBIKE are LN1 2PQ Members of the Phone: 01427 787774 Bicycle Association of Great Britain E-mail: support@batribike.com ----- USER MANUAL DELTA - ISSUE 4 - ©2019 Batribike Limited -----...
