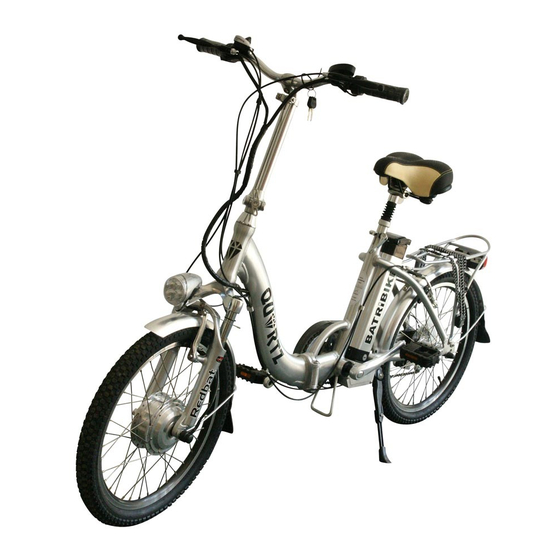

Quartz

User Manual

Thank you for purchasing a BATRIBIKE Electric Bicycle

from Fallowgate Limited.

With care and correct usage your bicycle

will give many years of service.

Please read the manual fully before use.

Table of Contents

Advertisement

Table of Contents

Need help?

Need help?

Do you have a question about the Quartz and is the answer not in the manual?

Questions and answers

Summary of Contents for Batribike Quartz

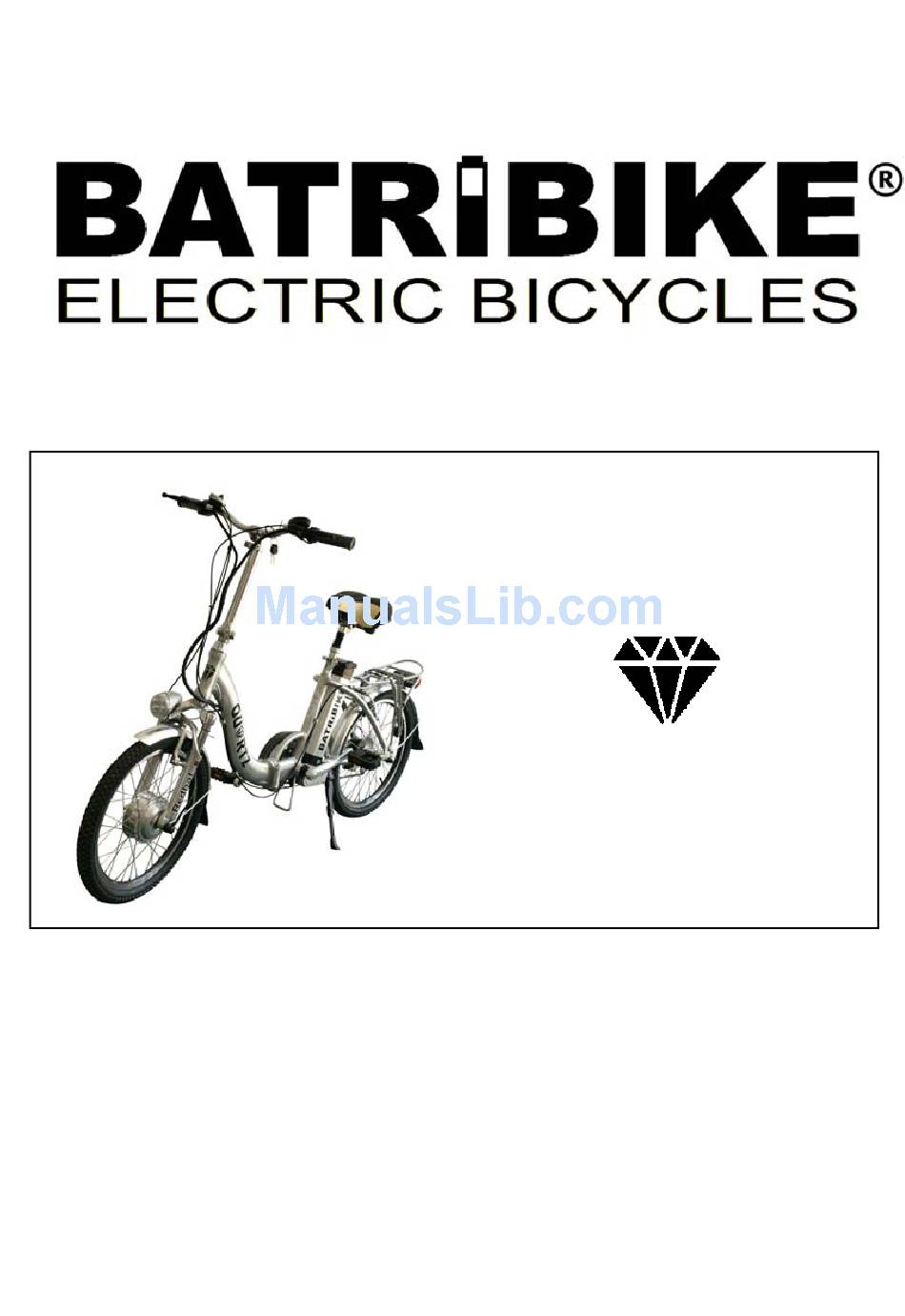

Page 1 Quartz User Manual Thank you for purchasing a BATRIBIKE Electric Bicycle from Fallowgate Limited. With care and correct usage your bicycle will give many years of service. Please read the manual fully before use.
Page 2 6 weeks of purchase, free of charge. If it is more con- venient for you a local cycle shop could carry out this operation at your expense. Your BATRIBIKE bicycle uses standard cycle parts wherever possible. Items such as tyres, tubes, lights, brake pads/blocks and cables may be obtained direct from us or your local cycle shop or retailer.
Page 3: Assembly Instructions
CAUTION Your new BATRIBIKE Quartz needs assembling by a competent person. If you are in any doubt about assembly you should contact a local cycle shop for assistance. Assembly Instructions Open box and lift out loose packaging. Lift out seat and put to one side.
Page 4 To ensure maximum battery life charge your battery after each ride & DO NOT leave fully discharged. If your BATRIBIKE Quartz is not in use for an extended period, charge the battery once a month to prevent deterioration.
Page 5 Quick release fittings for seat & handle bar height adjustment. With the locking lever in the loose position, tighten the nut until finger tight, The final tightening is done by moving the lever to the locked position. To undo move lever to loose position to enable height adjustment.
Page 6 Riding To turn on the power, lift the handle on the battery and press the red switch to the on position. The battery indicator will light up on the handlebars. Pressing the 6km/h button will immediately power the motor to approximately 6km/h (4 mph), and is useful to assist in setting off from standstill.
Page 7 Press once more and all three LEDs light up. In this mode the throttle will work and you can travel without pedalling. Speed is regulated by twisting the throttle. Twisted fully towards you gives full power. Releasing fully gives no power. Pressing will drop back to high power setting, pressing again will reduce to...
Page 8 BATRIBIKE or may be obtained from your local cycle shop. BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow Lincoln LN1 2AH Phone: 01427-787774 E-mail: support@batribike.com ————————— USER MANUAL—BATRIBIKE Quartz — ISSUE 1 — ©2009 Fallowgate Limited —————————...
