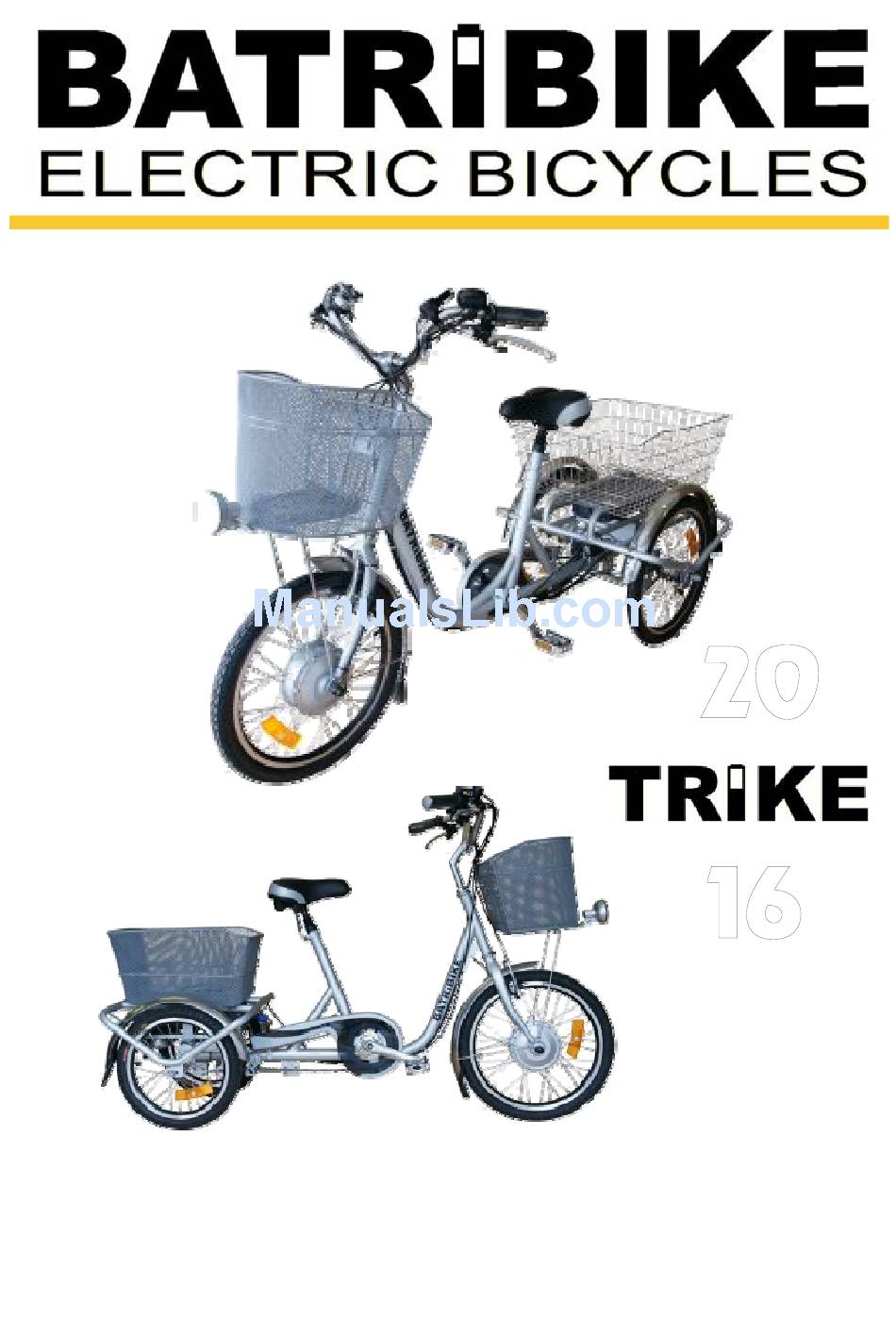

- Page 1 ® User Manual ELECTRIC TRICYCLES...
- Page 2 IMPORTANT PLEASE READ THIS MANUAL FULLY PRIOR TO ASSEMBLY AND USE For your safety and to ensure a long and trouble free life of your Batribike Trike, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.
- Page 3 Thank you for purchasing a BATRIBIKE Electric Trike With care and correct usage your Trike will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE TRIKE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.
-
Page 4: Charging The Battery
Charging the Battery The battery can be charged on or off the Trike. To remove the battery, unplug the battery from the Trike, (Blue Plug), then unlock with the one of the two keys provided, hold down the plastic clamping tab and slide out the battery from the rear of the carrier. - Page 5 It is perfectly acceptable to recharge the battery after a short ride so that the battery is fully charged before the next ride. If your BATRIBIKE is not in use for an extended period it is imperative that you charge the battery before storage and then charge the battery once a month to prevent deterioration.
- Page 6 Usage Your BATRIBIKE Electric Trike can be used as a normal pedal cycle by simply not switching on the battery. To use under electric power, put the blue plug into the socket in the battery located near the seat under the rear basket.
- Page 7 Four Power Levels To enable the rider to have complete control over speed and assistance the Trike 16 and Trike 20 have four levels of assistance. When initially switched on the controller automatically selects power level 3. To change power assistance level press the...
- Page 8 Braking To stop, release the throttle and pull the brake levers. Parking Brake The Trike 16 and the Trike 20 are both fitted with Parking Brake OFF parking brakes. This allows the rider to leave the Trike with confidence, knowing that it will not roll away.
- Page 9 Tilting Mechanism The Batribike Trikes are fitted with a tilting mechanism which aids the rider to corner more easily. Using the tilting facility also allows for greater stability when cornering, reducing the risk of lifting a rear wheel. The lever to release the tilt lock is located on the handlebars Trike 16 –...
- Page 10 Do not use the Trike with the markings showing. Carrying Capacity The Batribike Trikes are fitted with useful load carrying baskets front and rear. Please note the maximum load for the rear basket is 40kg and the maximum combined weight for Rider and load is 130kg.
- Page 11 Refer to your local cycle shop if you are not familiar with this operation. Your BATRIBIKE Trike uses standard cycle parts wherever possible. Items such as tyres, tubes, lights, brake pads/blocks and cables may be obtained from your local cycle shop or retailer.
- Page 12 In the event of warranty repairs becoming necessary you should return your tricycle to your Authorised Batribike Dealer, (where you originally purchased your Batribike). Delivery & collection charges are not redeemable under war- ranty. Warranty is non transferable and applies only to the original owner.
