Summary of Contents for Batribike Breeze

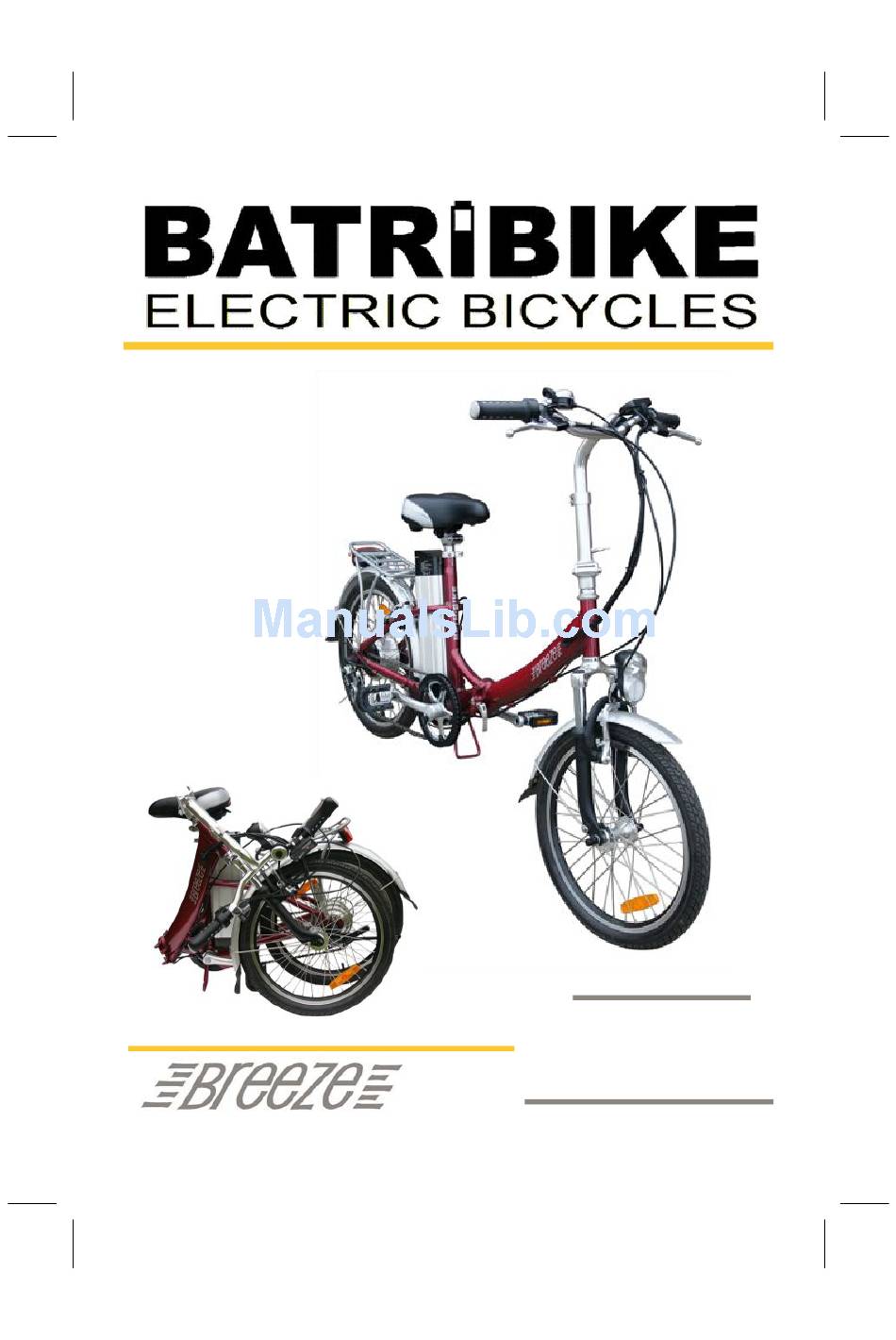

  • Page 1 ® Owner Manual...
  • Page 2 IMPORTANT PLEASE READ THIS MANUAL FULLY PRIOR TO ASSEMBLY AND USE For your safety and to ensure a long and trouble free life of your Batribike bicycle, check the operation of brakes, lights, bell and gears, and check tyre pressures are correct.
  • Page 3: Table Of Contents

    Thank you for purchasing a BATRIBIKE Electric Bicycle With care and correct usage your bicycle will give many years of service. Important PLEASE CHARGE THE BATTERY BEFORE FIRST USING THE BICYCLE Even though the battery indicator will show charge this cannot be relied upon until the battery has had the initial full charge.
  • Page 4: Parts Identification

    PARTS IDENTIFICATION We continually strive to ensure that we provide you with the best possible products, therefore SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE Display Battery Tipping Saddle Twist Grip Throttle Battery Power Switch Front LED Light Rear Brake Lever Charging Socket Rear LED Light Front Brake Lever...
  • Page 5 Detail views of Battery Components...
  • Page 6: Battery Charging

    CHARGING THE BATTERY The battery can be charged on or off the bike. To remove the battery, unlock by pushing the key and turning anti-clockwise. Tilt or remove the seat. (to tilt the seat, lift the lever located under the rear of the seat and lift the back of the seat. Press the seat down to lock back into position).
  • Page 7 If your BATRIBIKE is not in use for an extended period it is imperative that you charge the battery before storage and then charge the battery once a month to prevent deterioration.
  • Page 8: Using The Power Assistance

    Usage Your BATRIBIKE Electric Bicycle can be used as a normal pedal cycle by simply not switching on the battery. Alternatively switch on at the battery (Key Switch), but do not switch on at the handlebars. ELECTRIC BICYCLE FUNCTIONS Switching On To use under electric power, switch on at the key switch located on the battery beneath the rear of the seat.
  • Page 9: Switching Off

    Battery Meter The LED shows the charge remaining in the battery in the upper right of the display. The indicators will gradually go out as the battery power is used up. Refer to the table below for details. BATTERY METER DISPLAYS THE CHARGE REMAINING IN THE BATTERY SYMBOL CHARGE SYMBOL...
  • Page 10 Pedal Assistance There are 3 levels of pedal assistance from the motor. Using the ASSIST assist button you can select from L (low) M (medium) and H (high). Pressing the button will scroll through the levels, pressing the assist button when in H (high) mode will return to L (low) assist.
  • Page 11 If you turn the battery on but do not press the power button on the display your Batribike Breeze will now act and feel like a normal cycle. This is useful when you are feeling fit at the start of a journey or using your bike for exercise...
  • Page 12 Using the Twist Grip Throttle—Country Specific The throttle is available all the time the power is switched on at the handlebar display. The throttle can be used whilst pedalling in any of the assist modes to give extra help as required. The throttle is not limited by the assistance level selected and is available to give up to maximum power at all times.
  • Page 13 BS EN15194 Compliance Breeze The BATRIBIKE is tested and certified to BS EN15194. For the British market, the addition of a twist grip throttle has rendered this not compliant in some countries. You are recommended to seek advice from the relevant authorities in the country you are visiting before travelling.
  • Page 14: Standard Bicycle Functions

    You must be pedalling forwards as you change gears. Lights Lights are provided on your BATRIBIKE bicycle. These are power efficient LED units which achieve a long life on each set of batteries. SAFETY FEATURE - The power for the...
  • Page 15: Side Stand

    The rear light requires 2 AA batteries. You will require a small Philips screwdriver to take off the red lens for battery replacement. It is switched on and off by the small red push button switch on the underside of the unit. Braking To stop, release the throttle and pull the brake levers.
  • Page 16 Quick Release fittings for Seat Height Adjustment With the locking lever in the loose position, tighten the nut until finger tight. The final tightening is done by moving the lever to the locked position. To undo move the lever to the loose position to enable height adjustment. Loose Locked Folding the Bicycle...
  • Page 17: Adjusting The Handlebars

    The luggage rack provided is designed to carry a maximum load of 25kg. Make sure that any items carried are securely strapped and nothing is able to get caught in the rear wheel. All other operation of your BATRIBIKE Electric Bicycle is as per a normal pedal cycle.
  • Page 18: Maintenance Schedule

    Beyond this manual, it is good to consult your BATRIBIKE dealer for advice if you are at all unsure about any of the procedures described. Normal maintenance is not covered under the warranty and this service may be chargeable.
  • Page 19: Removing The Rear Wheel

    (or YEARLY) Hub motor and general inspection We recommend you arrange to have a thorough inspection of your bicycle by a BATRIBIKE dealer. This includes opening up the hub motor to inspect and lubricate the gears. Tyre Pressures The tyres should be pumped up to within the range stated on the sidewall.
  • Page 20: Warranty

    Compensatory costs arising from damages or accidents. Cost incurred by loss of the bicycle’s usage. Brake blocks/pads, tyres, lights and cables etc. are considered as consumables and replacements are available from BATRIBIKE or may be ob- tained from your local cycle shop.
  • Page 21 In the event of a Warranty claim In the event of warranty repairs becoming necessary you should return your bicycle to your Authorised Batribike Dealer, (where you originally purchased your Batribike). Original defective parts that are sent to the manufacturer for assessment will be replaced by the same or equal value part.
  • Page 22 Breeze Technical Specification...
  • Page 23 Consideration should be given to its safe disposal. Your Local Authority should have the necessary facilities in place. If you prefer you may take your original battery to BATRIBIKE for recycling. Never dispose of batteries in a fire or subject to puncture or crushing.
  • Page 24 BATRIBIKE Electric Bicycles are exclusive to:- Fallowgate Limited Kellaway House Marton Road Sturton-by-Stow Lincoln BATRIBIKE are LN1 2AH Full Members of Phone: 01427-787774 the British Electric Bicycle Association E-mail: support@batribike.com —————— USER MANUAL Breeze 2011 — ISSUE 4 — ©2011 Fallowgate Limited ——————...
