• If able ensure that sterndrives/ trimtabs do not interfere with the water fl ow from the thruster as this can reduce the thrust eff ectiveness considerably. We recommend the use of our Side-Power cowls to enhance the performance and allow installation in shallow draft boats. Side-Power cowls will also minimise the eff...

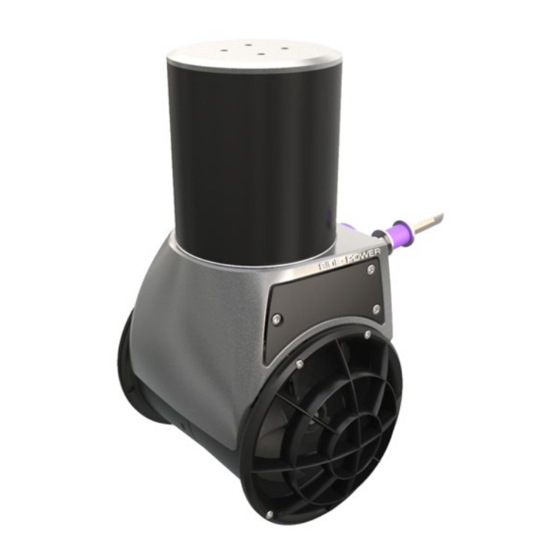

374 mm 14,72” 171 mm 104 mm *106 mm 183 mm 6,73” 4,09” *6,29” 7,20” * For extended hull 50 mm thickness models 1,97” 18 mm 35,80 mm 0,71” 1,41” 65 mm 2,56” 130 mm 5,12” MG_0110 SX35 & SX50 5630 2019...
Engine Engine Water line Water line The thruster can be installed in multiple locations based on object obstructions on the stern. Thruster assembly does not disturb the water flow under the hull. Water flow Engine Thruster tunnel is clear Steering Arm from obstruction.
Cowl water flow redirection Shallow installation Composite material with smooth inner walls for optimal water flow and strength Radiused corners prevent turbulence A standard Sidepower stern thruster tunnel with add-on cowls for shallow installation An angled edge further preventing air attraction into the tunnel cowls to change the water flow direction to...
STERN MG_0162 Positioning of the SX with Hydrodynamical Cover MC_0072 Aim to install the thruster as far forward/ Aft as possible Due to the leverage eff ect around the boats’ pivot point. The relative distance diff erence from the boat pivots’ point to the thruster will determine the amount of real thrust for the boats, rotation.
S-link control system without the designated and approved interface will render all warranties and responsibilities for the complete line of Side-Power products connected void and null. If you are interfacing by agreement with Sleipner and through a designated Side-Power supplied interface, you are still required to also install at least one original Side-Power control panel to enable effi...
Detail #1 ed by Date 06/02/2019 Sheet Size MG_0145 Grids or Cowls assembly MC_0074 1. Install the cowls or grids before mounting the new tunnel to the thruster. (NB: Remember the tunnel can not be removed without being destroyed.) 2. Drill 4 holes in the mould marking on the tunnel. 3.
Align two ends of the tunnel. Ensure top lips tabs into the motor inserts. Push two tunnel ends together. Check snap lock positions around the tunnel. MG_0112 Tunnel Installation MC_0074 ! Please refer to the graphic for special considerations relating to your model ! Ensure grids or cowls are installed if in use.
130 mm 1 - 3 4 - 5 5,12” Hole size for hull Bolt and Washer 18 mm 35,80 mm 0,71” 1,41” 50 mm 65 mm 1,97” 2,56” +15% compression Maximum hull thickness is 50 mm or 150mm Hull thickness Drill holes in hull Sealant (MS Polymer) Cover the...
BAT. + # SX35 CONTROL BOX 5, 6 Nm Hose claps BAT. - 5, 6 Nm MOTOR CABLE - 6 1232i MOTOR CABLE + TORQUE 8Nm BAT. + 5, 6 Nm # SX50 CONTROL BOX BAT. - 5, 6 Nm MOTOR CABLE - Control Box hose clamp...
Tighten to To control panel(s)/remote. # SX35 CONTROL BOX 5, 6 NM 4,13 lb/ft CONTROLLER Tighten to Tighten to Automatic MAIN 5 NM 5 NM SWITCH 3,69 lb/ft 3,69 lb/ft BLUE HOSE (BLUE HOSE) (900mm/ 35”) Tighten to # SX50 CONTROL BOX 5, 6 NM MAIN FUSE 4,13 lb/ft...
Thuster Motor Ext. cable Y cable 4- or 5-lead 4- or 5-lead Ext. cable 4- or 5-lead * 4 OR 5 LEAD EXTENSION CABLES Manual Main switch Automatic Main switch Thuster * 5 LEAD EXTENSION Motor CABLES Y cable Ext. cable 5-lead 5-lead Ext.
Visual Wiring Diagram CONTROLLER CONNECTIONS: <<B+>>: Power supply pos from thruster battery/ Main switch/ Main fuse <<B->>: Power supply neg from thruster battery 2 Motor cables from thruster 4 wires from thruster overtemp switch 2 Control cables from control panel(s)/ remote To control panel(s)/remote.
CONTROL PANEL TEMPLATES For control panels 8950 / 8960 61,1mm For control panels 8950 / 8960 Cut out area: Ø 51,8 mm / 2" Cut out area: Ø 51,8 mm / 2" Ø52 This way Up! Ø 3,0 mm / 0,12" Ø...
Checklist for SX Thrusters MC_0081 ..Propeller is fastened correctly to the shaft... Propeller turns freely in tunnel... Primer and anti-fouling have been applied to the gearhouse and propeller but NOT on the anode or the gearhouse lid where the propeller is fastened...
Spare Parts MC_0024 For the most up to date documentation, we advise you to visit our website www.side-power.com for the spare parts list. Warranty statement MC_0024 1. The equipment manufactured by Sleipner Motor AS (The “Warrantor”) is warranted to be free from defects in workmanship and materials under normal use and service.
Worldwide sales and service www.side-power.com SLEIPNER MOTOR AS P.O. Box 519 N-1612 Fredrikstad Norway The information given in the document was correct at the time it was published. However, Sleipner Motor AS can not accept liability for any inaccuracies or omissions it may contain.
