2 Start-Up
2.3

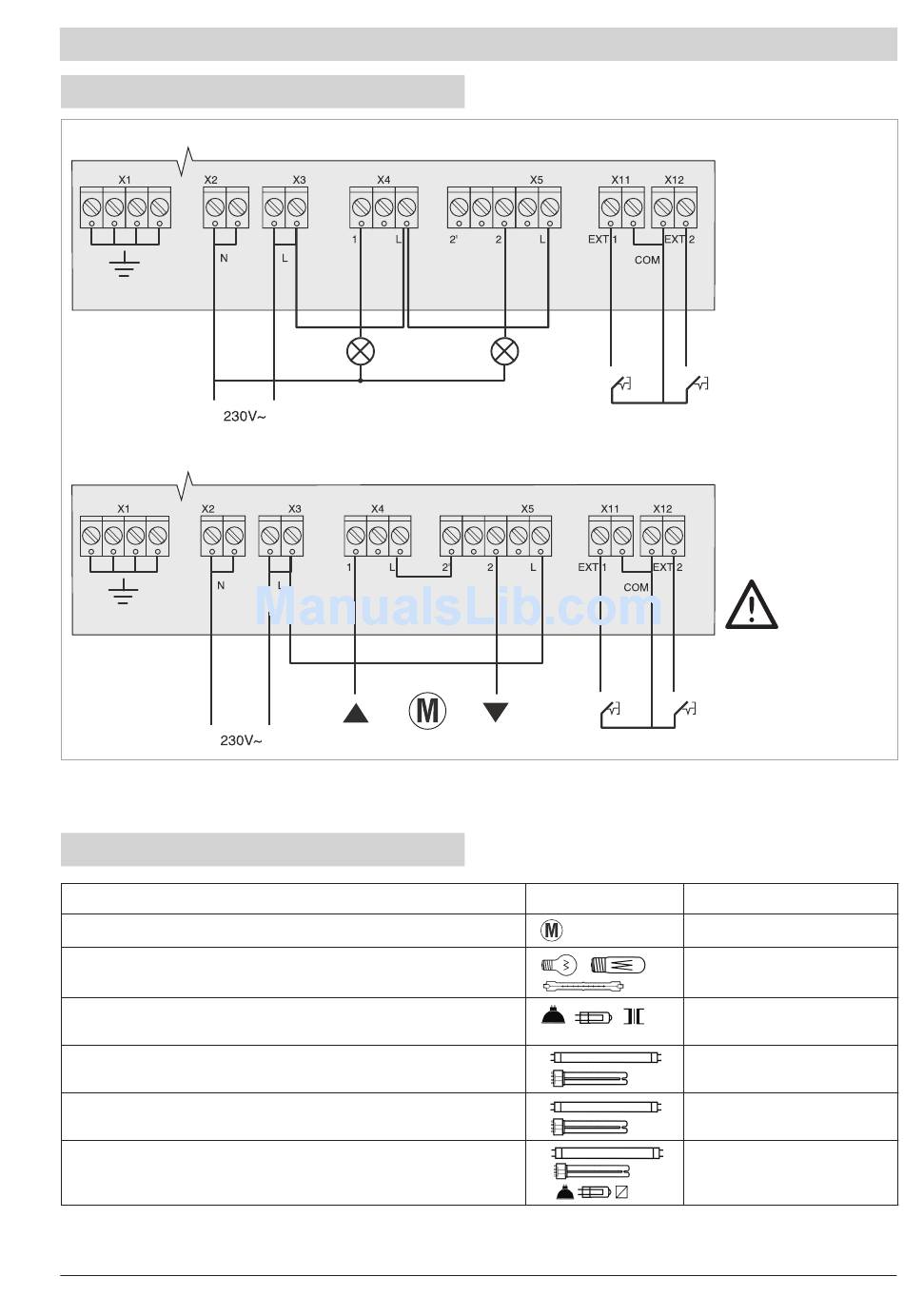

Connection Diagram

2.4

Table of Loads

Type of Load
Motors 230 V, 50 Hz
Resistive load:
bulbs, 230 V halogen lamp etc.
Inductive load: halogen lamps with wound transformers
(transformer at least 85% loaded)
Non- or serial-compensated fluorescent lamps with ferro-
magnetic loads
Parallel-compensated fluorescent lamps with ferro-magnetic
loads
Capacity EB: electronic ballasts,
electronic transformers etc.
Awning Control/
Fan Control
Bridge between
X4 and X5
necessary!
Symbol Max. Duty
4,0 A /
10,0 A /
2,6 A /
10,0 A /
2,6 A /
4,0 A /
Light Control
920 VA
2.300 VA
600 VA
2.300 VA
600 VA
920 VA
5
