Eldat RCJ31 Manual

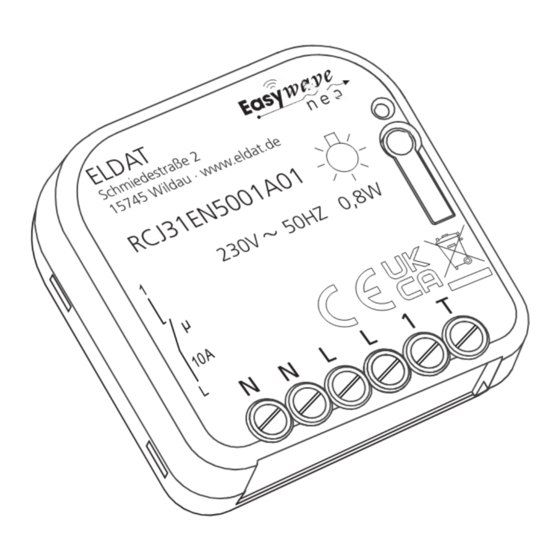

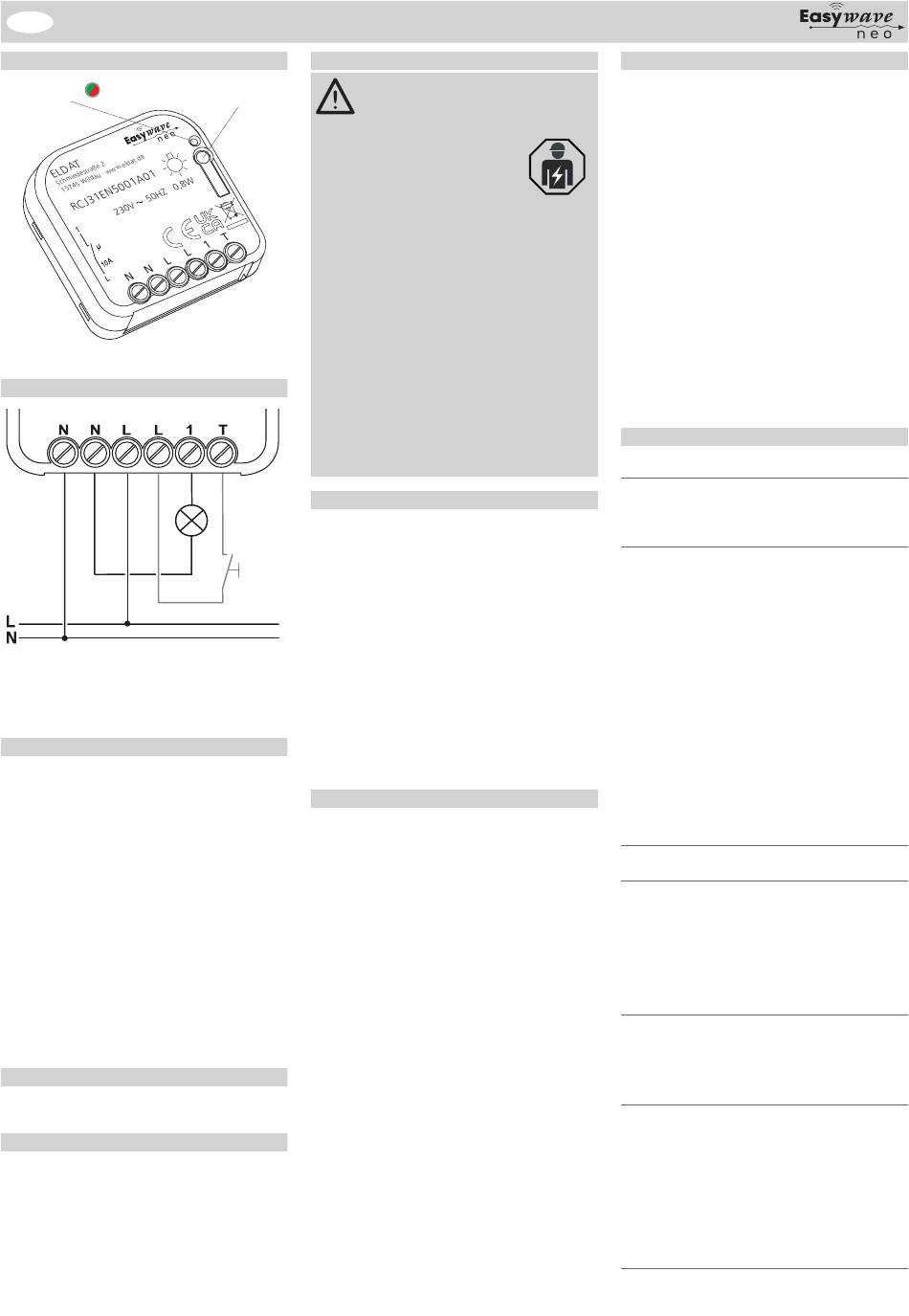

RCJ31 Flush-mounted receiver
EN
Models
LED red|green
RCJ31EN5001A01
Wiring diagram
230 V AC
50 Hz
Wire cross-sections
Only wires with a cable cross-section of 0.5 mm²
to 2.5 mm² shall be connected. The stripping
length of the connecting wires is 6 to 7 mm.
Technical Details
Frequency: 868.30 MHz
Radiated power: 6.38 mW
Modulation: FSK
Coding: Easywave neo,
POTA
Device type: switch
Power supply: 230 V AC, 50 Hz
Input: 1 external button
Output: 1 potential-loaded relay
contact (normally open)
Power consumption: 0.4 W standby
0.8 W max. w/o load
Maximum contact load
10 A / 2,300 VA
- resistive load cosφ = 1,0
3 A /
- inductive load cosφ = 0,8
Operating temperature: -20 °C to +45 °C
Dimensions (H/W/D): 43,0 / 42,0 / 17,5 mm
Weight: approx. 31 g
Scope of Delivery
Flush mounted receiver RCJ31,
operating manual
Intended Use
The device may only be used indoors as a ra-
dio receiver in connection with mains voltage de-
vices. It is operated using Easywave radio trans-
mitters or an external button.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Programming Before installing the device, carefully
read through this operating manual! Fai-
Button P
ling to observe these instructions may
result in fire or other hazards.
- The electrical installation may
only be performed by an autho-
rised and qualified electrician.
- The load current circuit on which the device
is operated must be protected by a circuit
breaker switch in accordance with EN60898-
1 (tripping characteristic B or C, max. 10 A
rated current).
- We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
- Observe the applicable laws, standards and
regulations as well as the manufacturer's
instructions for the devices to be operated!
- Have faulty units checked by the manufactu-
rer!
- Do not open the unit housing!
- Do not make any unauthorized alterations or
modifications to the unit!
Function
The RCJ31 flush-mounted receiver is used to al-
ternately switch an electrical device ON and OFF
using a radio transmitter or an external button.
The operating modes ON/OFF, LOGIC, DEAD
MAN and TIMER are available (see section "Ope-
rating modes").
32 transmission codes can be programmed into
the receiver.
The integrated POTA (Programming Over The
Air) remote programming function can be used to
reprogram an already-installed and no longer ac-
cessible receiver. A detailed POTA programming
manual is available on our website:
https://www.eldat.de/pota_en.pdf
or you can request support from our customer
service.
Push-button input T
The RCJ31 has a push-button input (T), which
has to be connected to L.
When in factory mode, the push-button input
works in the ON/OFF 1-button operation mode
(see „operating modes").
The external button can be programmed in other
operating modes or deleted at any time. This is
done in the same way as programming Easywave
transmitters.
If the external button is deleted from memory, it
returns to the ON/OFF 1-button operation mode.
690 VA
The push-button input works like a transmitter
button with the button code B and should always
be used in 1-button operation.
If the push-button input is programmed in the ON/
OFF 2-button operation mode, it can lock the out-
put. As long as the push-button input is closed,
the switching output remains switched off. Radio
transmitters are ignored during this time.
If the push-button input is programmed in DEAD-
MAN operating mode, it switches the output ON
as long as it is closed. However, radio transmit-
ters can switch the output OFF again at any time.
It is not possible to use the push-button input in
the LOGIC operating mode!
230 V normally open
Operation
Briefly press button P to begin programming
mode for the required operation type. Any Easy-
wave transmitter can then be programmed under
this operation type.
A separate operation type can be assigned to
each transmitter / transmitter button. For local
operation, one external button can be connected.
When in 2-button operation (2-TB), transmitter
buttons A and C switch ON. Transmitter buttons
B and D switch OFF. Only one transmitter button
must be programmed, as the code of the second
button is automatically assigned.
In 1-button operation (1-TB), each function is
triggered with just one transmitter button. Each
button must be programmed individually into the
receiver, there is no automatic assignment.
Timeout
(1)
If no button is pressed within 30 seconds, the
RCJ31 automatically switches to operation mode.
The settings are not saved.
Operating modes
2-button operation
ON/OFF
Transmission code A or C switches ON.
Transmission code B or D switches OFF.
LOGIC
All programmed transmission codes are linked in
accordance with an AND/OR logic.
OR linkage
If one of the programmed transmitters trans-
mits an ON telegram (A/C), the receiver swit-
ches ON.
AND linkage
If all programmed transmitters which have pre-
viously transmitted an ON telegram (A/C) have
transmitted an OFF telegram (B/D), the recei-
ver switches OFF.
This operating mode is subordinate to all other
operation types! This means that any command
from a transmitter under another operation type
will reset this operation type!
1-button operation
ON/OFF
Each transmitter code A/B/C/D can switch ON
and OFF alternately.
If the transmitter button is pressed for longer than
2 seconds, the output is switched OFF, regardless
of its current state (status of switching is synchro-
nized).
DEAD MAN
The output switches as long as the transmitter
button is pressed, but for a maximum of 36 se-
conds (unlimited, when using external button).
TIMER
adjustable, retriggerable
The receiver switches ON and automatically OFF
again after the set time (factory setting: 7 minu-
tes). Any transmission code A/B/C/D can be used.
Pressing the transmission button again before the
timer finishes extends the switching time again to
the set time. The TIMER function can be set by
the user in a range from 1 second to 30 hours
(see "Set TIMER").
