Eldat Easywave neo RCJ35 Manual

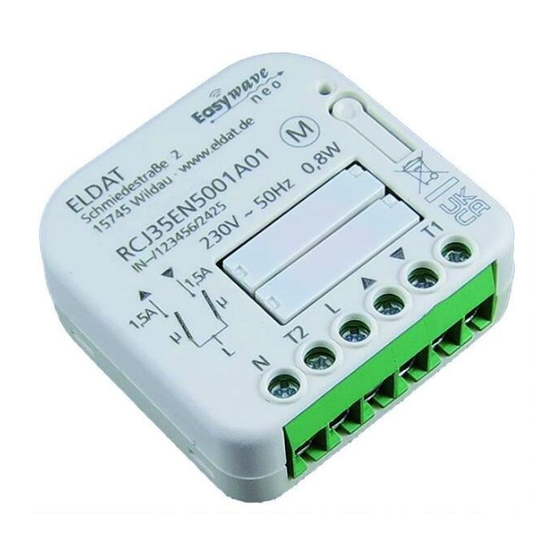

RCJ35 Flush-mounted receiver 230V motor potential-loaded
EN
Models
LED P
red|green
RCJ35
3 3
RCJ35EN5001A01
µ µ

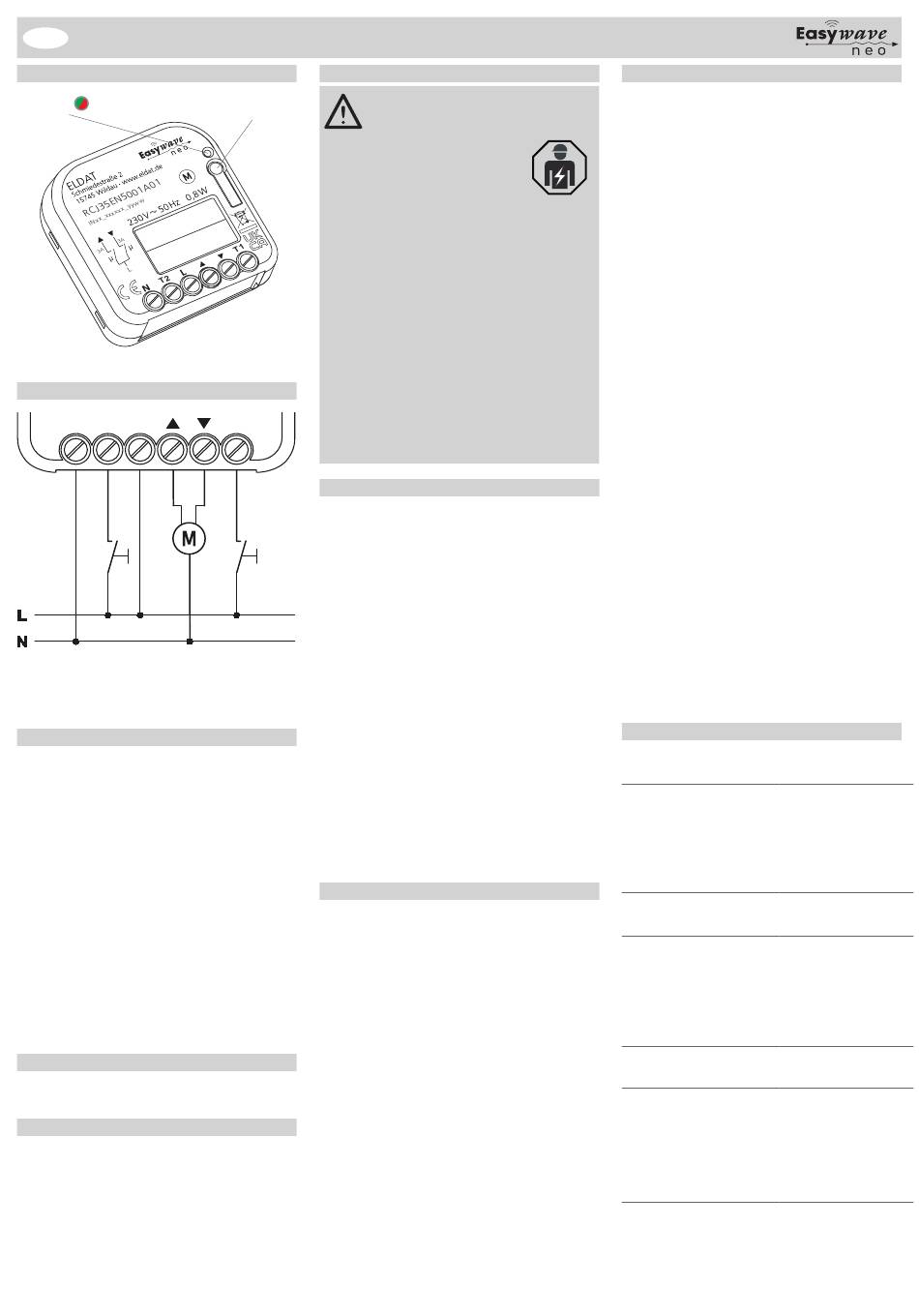

Wiring diagram
L
N T2 L
Wire cross-sections
Only wires with a cable cross-section of 0.5 mm²
to 2.5 mm² shall be connected. The stripping
length of the connecting wires is 6 to 7 mm.
Technical Details
Frequency: 868.30 MHz
Radiated power: 6.38 mW
Modulation: FSK
Coding: Easywave neo
POTA
Device type: motor control
Power supply: 230 V AC, 50 Hz
Input: 2 external buttons
Output: 2 potential-loaded relay
contacts
Power consumption: 0.4 W standby
0.8 W max. w/o load
Maximum contact load
5.0 A / 1,150 VA
- resistive load cosφ = 1.0
3.0 A /
- inductive load cosφ = 0.8
Operating temperature: -20 °C to +45 °C
Dimensions (W/L/H): 43.0 / 42.0 / 17.5 mm
Weight: 31 g
Scope of Delivery
Flush mounted receiver RCJ35,
operating manual
Intended Use
The device may only be used to control tubular
motors and only indoors! It is operated using Ea-
sywave radio transmitters or external buttons.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Before installing the device, carefully
Programming
read through this operating manual! Fai-
Button P
ling to observe these instructions may
result in fire or other hazards.
- The electrical installation may
only be performed by an autho-
rised and qualified electrician.
- The load current circuit on which the
device is operated must be protected by a
circuit breaker switch in accordance with
EN60898-1 (tripping characteristic B or C,
max. 5 A rated current).
- We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
- Observe the applicable laws, standards and
regulations as well as the manufacturer's
instructions for the devices to be operated!
- Have faulty units checked by the manufactu-
rer!
- Do not open the unit housing!
T1
- Do not make any unauthorized alterations or
modifications to the unit!
Function
Using the bidirectional flush-mounted receiver
RCJ35, a tubular motor can be controlled via
Easywave transmitters or via two button inputs.
32 transmission codes can be programmed into
the receiver.
The RCJ35 is equipped with operating modes
UP/DOWN, UP/STOP/DOWN and SEQUENCE.
The „slat adjustment" function is also available
as an option, whereby the motor is controlled in
DEAD MAN mode for the first 2 seconds of trans-
mitter actuation and only then switches to self-
retaining.
The runtime of the motor can be set separately
for each movement direction. The runtime is 90
seconds each ex-factory.
The integrated POTA (Programming Over The
Air) remote programming function can be used to
reprogram an already installed and no longer ac-
cessible receiver. A detailed POTA programming
manual is available on our website:
https://www.eldat.de/pota_en.pdf
or you can request support from our customer
service.
Push-button inputs T1 and T2
(normally open)
The RCJ35 has two push-button inputs (T1 and
T2), which have to be connected to L.
In the factory state, the button inputs operate in
the UP/DOWN 2-button operation mode without
slat adjustment. The external buttons can be pro-
690 VA
grammed in a different operating mode or deleted
at any time. This is done in the same way as pro-
gramming Easywave transmitters.
If an external push-button is deleted, it operates
again in the ex-factory operating mode.
Button input T1 behaves like a transmitter button
with button code A; button input T2 behaves like
button code B.
In 1-button and 2-button operation, the movement
command is carried out by briefly pressing the
connected buttons.
In 3-button operation, the buttons or switches
must remain pressed for the desired period of
movement. As long as a button input is active, no
transmitter commands are accepted in the 3-but-
ton operation.
Operation
Briefly press the programming button P to be-
gin programming mode for the required operati-
on type. Any Easywave transmitter can then be
programmed under this operation type. Each
transmitter can be assigned to its own operating
mode. A separate operation type can be assigned
to each transmitter / transmitter button. For local
operation, 2 external buttons can be connected.
2-button-operation
In this operating mode, movement commands
are triggered by 2 related transmitter buttons. The
movement is stopped by pressing the button for
the opposite direction. Only one transmitter but-
ton must be programmed, the code for the asso-
ciated button is assigned automatically.
3-button-operation
In 3-button operation, movement commands and
the stop command are each triggered by a se-
parate transmitter button. This operating mode is
therefore particularly suitable for central control
and the use of repeaters.
A transmitter with at least three associated but-
tons is required. Only one of these transmitter
buttons must be programmed into the receiver,the
code for the corresponding buttons is assigned
automatically.
1-button-operation
Using a single transmitter button, move and stop
commands are triggered in a defined sequence
each time it is pressed.
A transmitter with four buttons (A, B, C, D) could
therefore be used to control, e.g. four different
devices.
Timeout
If no button is pressed within 30 seconds, the
RCJ35 automatically switches to operation mode.
The settings are not saved.
Operating modes
2-button-operation
UP/DOWN
Transmission code A or C Roller shutter UP
Transmission code B or D Roller shutter DOWN
STOP with opposite direction button
optionally with slat adjustment
3-button-operation
UP/STOP/DOWN
Transmission code A Roller shutter UP
Transmission code C or D Roller shutter STOP
Transmission code B Roller shutter DOWN
optionally with slat adjustment
1-button-operation
SEQUENCE
Transmission code A/B/C/D
The roller shutter executes movement commands one
after another:
UP → STOP → DOWN → STOP → UP → ...
