Eldat secwave RCJ33 Manual

RCJ33 Flush-mounted receiver 12-24 V pulse output (5 seconds)
EN
Models
LED red
RCJ33S5001A01
Technical Details
Frequency: 868.30 MHz
Radiated power: 6.38 mW
Modulation: FSK
Coding: secwave
Encryption: AES 128 Bit
Power supply: 12-24 V AC/DC
Input: 1 external button
Output: 1 potential-free relay
contact (changeover)
Power consumption: 0.2 W standby
1.0 W max. w/o load
(at 24 V AC)
Max. contact rating:
- AC 60 V / 1 A / 60 VA
- DC 30 V / 1 A / 30 VA
Operating temperature: -20 °C to +45 °C
Dimensions (W/L/H): 43.0 / 42.0 / 17.5 mm
Weight: 31 g
Scope of Delivery
Flush mounted receiver RCJ33,
operating manual
Intended Use
The device may only be used indoors as a radio
receiver in connection with low voltage devices. It
is operated using secwave radio transmitters or
an external button.
The manufacturer will not be liable for damage
caused by improper or inappropriate use.
Safety Advice
Before installing the device, carefully
Programming
read through this operating manual!
button P
Failing to observe these instructions
may result in fire or other hazards.
- The electrical installation may
only be performed by an autho-
rised and qualified electrician.
- Make sure that the maximum contact rating
is adhered to during installation.
- We will not accept any liability for personal
injury or damage to property caused by
failure to observe the operating instructions
and in particular the safety advice!
- Observe the applicable laws, standards and
regulations as well as the manufacturer's
instructions for the devices to be operated!
- Have faulty units checked by the manufactu-
rer!
- Do not open the unit housing!
- Do not make any unauthorized alterations
or modifications to the unit!
Function

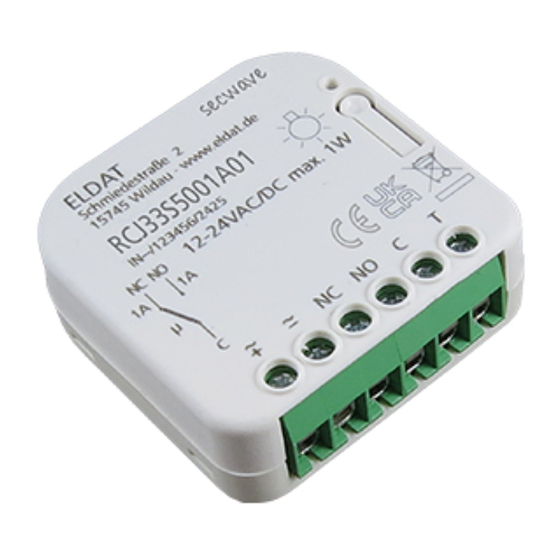

The RCJ33 flush-mounted receiver is used to
switch an electrical device (e.g. a door opener)
using a radio transmitter or an external button.
The flush-mounted receiver works in PULSE ope-
rating mode. If a transmitter button is pressed, the
relay switches for 5 seconds.
200 secwave transmission codes can be pro-
grammed into the receiver.
Push-button input T
The RCJ33 has a push-button input (T), which
has to be connected to „
Alternatively, the PULSE can also be triggered by
a connected external button.
Operation
Briefly press button P to begin programming
mode. Any secwave transmitter can then be pro-
grammed.
On-site operation is possible by connecting the
external button.
Start-up
1. Switch off the power supply.
2. Connect the supply voltage and the devices
3. Switch the power supply back on.
4. Transfer the coding of the transmitter buttons
5. Seal the flush-mounted installation box with

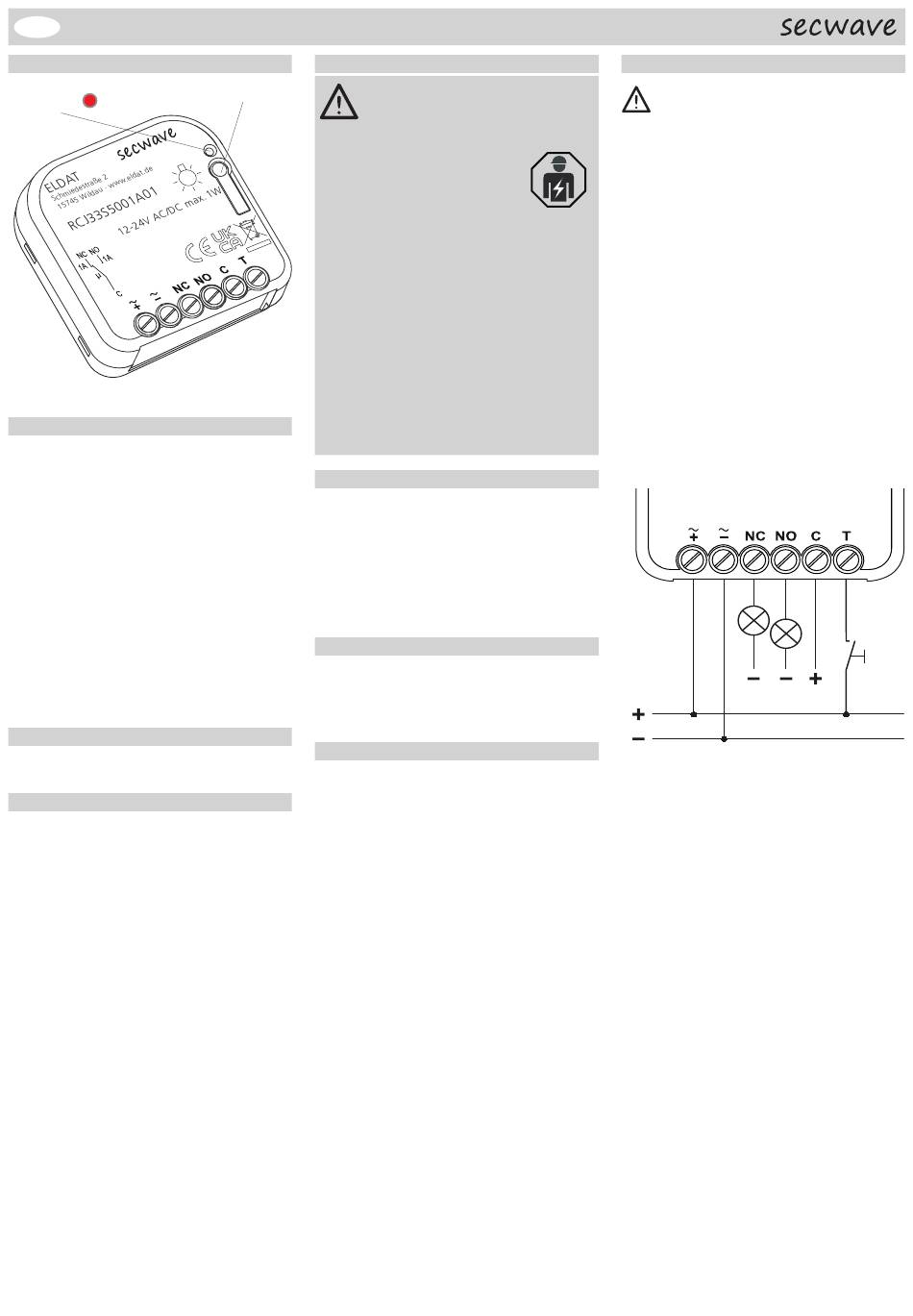

Wiring diagram
+"
.
Wire cross-sections
Only wires with a cable cross-section of 0.5 mm²
to 2.5 mm² shall be connected. The stripping
length of the connecting wires is 6 to 7 mm.
The receiver must be installed and com-
missioned by a qualified electrician in a
commercially available flush-mounted
installation box.
The cable length for connecting external
buttons must not exceed 3 meters.
Make sure there is no interference with
the wireless connection! Do not mount
the device in a distribution box, in metal
casings and in direct proximity to large me-
tal objects.
to be controlled according to the wiring dia-
gram. Observe the applicable electrical regu-
lations!
RCJ33
to the receiver (see „Program transmitters").
the corresponding cover.
12-24V AC/DC max. 1W
