Eldat Easywave RCL07 Manual

RCL07 Call Receiver with internal programming
GB

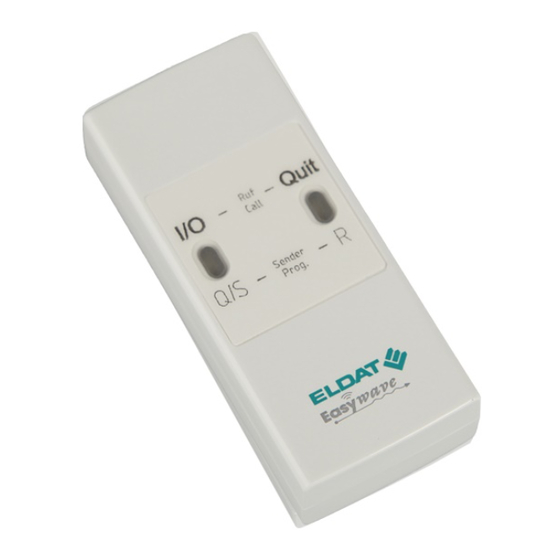

Model
Programming button Q/S
Teach and delete the acknowledge
and switch transmitter
Acknowledge button Quit
Call acknowledge
Cable entry
red LED
with cord
illuminates: Call received
grip
flashes:
Programming
button R
Teaching and
delete the
call transmitter
Switch button
Care function activate/deactivate
green LED
illuminates: RCL07 ready for
operation
flashes: Care function active
not light: RCL07 is off (Priority
channels are still
being received)
or
RCL07 without power supply
RCL07E5002B02 868.30 MHz
RCL07E6002B02
916.50 MHz
Technical Details
Frequency: 868.30 MHz/916.50 MHz
Modulation: FSK
Coding: Easywave
EasywavePlus
Power supply: 12-24 V DC
Current consumption:
12 V DC: 19 mA stand by
65 mA load *)
24 V DC: 11 mA stand by
31 mA load *)
Max. contact rating: 30 V / 1 A / 30 W
Output: 2 potential-free
relay contacts
(1 CO and 1 NO)
Operating temperature: -20 °C to +60 °C
Degree of protection: IP54
Dimensions (w/l/h): 35/80/20 mm
Weight: 38.0 g
Connecting cable: Ø 5 mm
*)
Both relays are switched.
Scope of Delivery
Call receiver RCL07, operating instruction
Intended Use
The unit may only be operated with safety extra
low voltage (SELV) and may only be used as a ra-
dio control for switching devices with safety extra
low voltage (SELV).
The manufacturer shall not be liable for any dam-
age caused by improper or non-intended use.
Safety Advice
Caution! Observe the permissible supply volt-
age and the max. contact rating!
Have faulty radio controls checked by the
manufacturer!
Do not make any unauthorized alterations or
modifications to the receiver!
Battery low voltage
Function
The call receiver RCL07 has two channels. Chan-
nel 1 (CH1) is used for signal incoming calls. If
the RCL07 receives an undervoltage telegram,
the channel 2 (CH2) switches for one second.
The following applications can be realized with
this:
CALL Function
When the RCL07 receives the telegram from a
call transmitter, channel 1 (CH1) switches accord-
ing to the operating mode selected.
A maximum of 32 transmission codes for call and
priority senders can be programmed.
Teaching is carried out using the programming
button R (refer to page 2 „Programming call trans-
mitter").
When the care function is activated and a call has
been received, the red LED R continuously illu-
minates.
This call can be acknowledged using the taught
acknowledge transmitter or the button Quit (refer
to „Acknowledge function").
ACKNOWLEDGE Function
A maximum of eight transmission codes can be
programmed.
Teaching is carried out using the internal pro-
gramming button Q/S (refer to page 2 „Program-
ming acknowledge transmitter").
The acknowledge function can be activated or
deactivated by setting jumper J2 accordingly. The
acknowledgment function is activated at the fac-
tory.
Activated (jumper J2 in position 4)
When the acknowledge function is activated, LED
R will light up red once a call is incoming.
This call can be acknowledged using an acknowl-
edgement transmitter, or on the RCL07 using the
Quit button. LED R will stop illuminating and out-
put channel 1 (CH1) will be reset.
Deactivated (jumper J2 in position 3 and 4)
If the acknowledge function is deactivated, an in-
coming call can not be acknowledged and LED
Quit will not light up. The device will switch to
output channel 1 (CH1) in accordance with the
operating mode selected.
CARE Function
Using the care function, the call function is
disabled for 15 minutes.
Disabling the call function is carried out by a sep-
arate switching transmitter using the transmitter
button B or D.
Alternatively, the call function can also be disa-
bled by pressing the button
<10 s) on the RCL07.
The call function is automatically reactivated after
15 minutes or can be reactivated using the trans-
mitter button A or C, or on the receiver using the
button
Before using the device, carefully read
through the operating instructions!
(> 1.6 s but
.
A maximum of eight switching codes can be pro-
grammed. Teaching is carried out using the in-
ternal programming button Q/S (refer to page 2
„Programming switching transmitter").
SWITCH-OFF Function
When the switch-off function is enabled, the
RCL07 can be switched off using the switch but-
ton.
When switched off, separately programmed
transmitters must be used to trigger a call, the so-
called „Priority transmitters".
These transmitters trigger calls even if the RCL07
is switched off.
Priority transmitters must be programmed sepa-
rately in the RCL07 and can be deleted in the
same way as call transmitters (refer to page 3
„Programming priority transmitter").
RCL07 switch OFF: Press the button
(>10 seconds) until the green LED goes off.
RCL07 switch ON: Press the button
5 seconds) until the green LED lights up.
After a voltage interruption, the RCL07 is always
switched on.
Jumper J1 can be used to disable or enable the
switch-off function. This function is disabled in the
factory settings (J1 in pos. 1), to change refer to
page 2 „Changing the switch-off function".
Please note that it is not possible to con-
trol the power supply when the switch-off
function is activated.
BATTERY UNDERVOLTAGE
If the capacity of the battery of a call tranmitter or
a priority transmitter is low, the transmitter sends
an undervoltage telegram. The relay channel 2
(CH2) is switched for approx. one second and the
LED signals the undervoltage by flashing.
If the RCL07 receives an undervoltage telegram
when the acknowledgment function is activated,
the undervoltage is only displayed on the device
after acknowledgment of the call.
Now replace the battery of the call transmitter.
When the RCL07 receives two consecutive tele-
grams from this transmitter without an undervolt-
age message, the receiver automatically resets
the undervoltage indication.
Operating Modes (OM)
The operating mode is selected by repeatedly
pressing the programming button R in the pro-
gram step „Programming the call transmitter" (re-
fer to page 2).
PULSE
1-button operation
If a transmitter button A/B/C/D is pressed, the cor-
responding relay is triggered for one second.
ON/OFF
2-button operation
The relay can selectively be switched ON or OFF.
The transmitter button A or C switch ON, the
transmitter button B or D switch OFF.
Caution! In order to change the operating mode,
first delete the transmitter transmission code and
then subsequently programming an other trans-
(approx.
