3.3

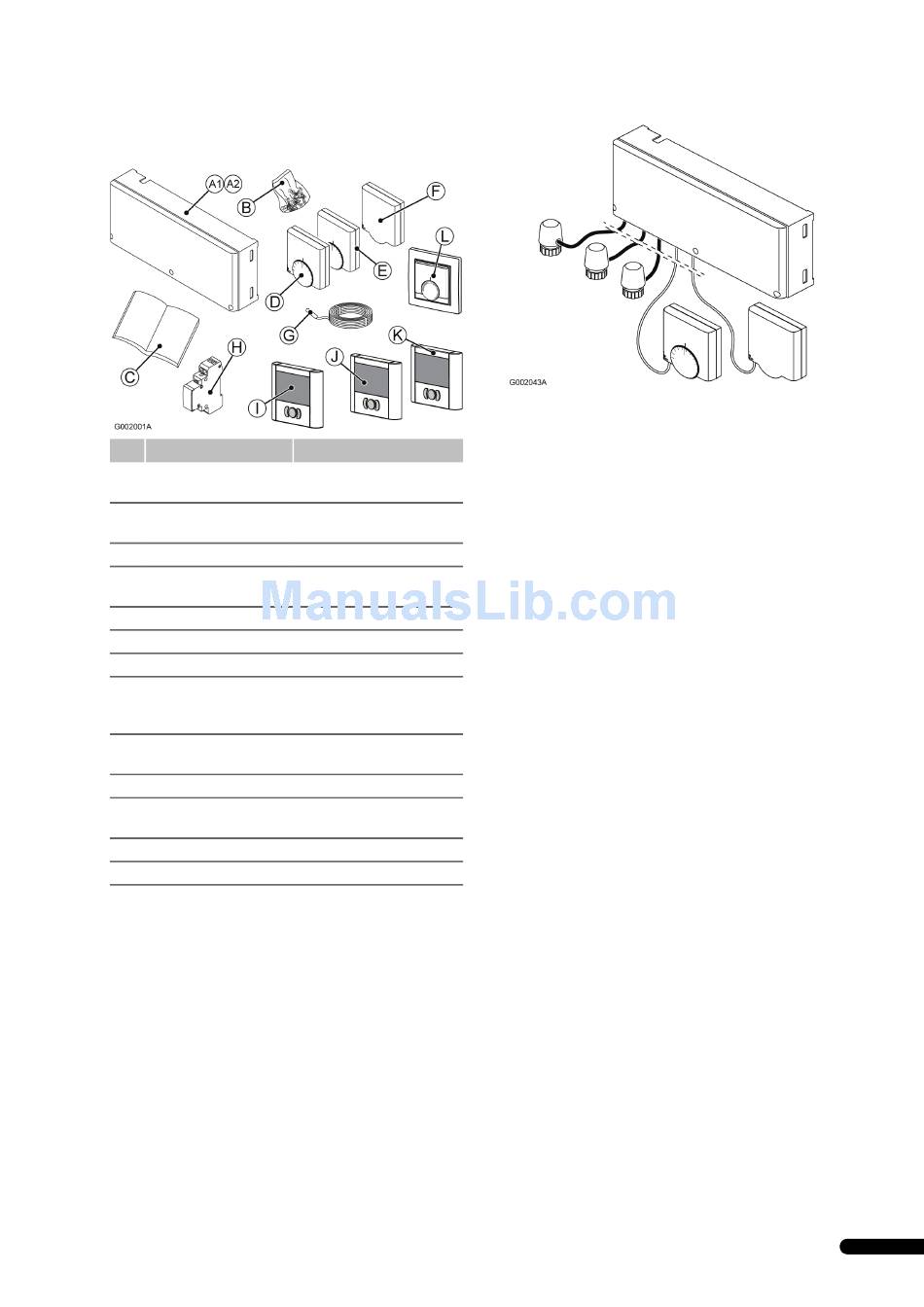

Uponor Control System Wired
components
Pos. Uponor designation
A1
Uponor Controller, 6
Channels C-33 Wired
A2
Uponor Controller, 12
Channels C-35 Wired
B
C
D
Uponor Thermostat T-35 Thermostat
E
Uponor Thermostat T-37 Thermostat for floor sensor
F
Uponor Thermostat T-33 Public thermostat
G
Uponor Floor sensor
H
Uponor Relay
I
Uponor Timer I-36
J
Uponor Thermostat T-38 Digital thermostat with timer
K
Uponor Thermostat T-36 Digital thermostat
L
Uponor Thermostat T-34 Thermostat flush
3.3.1

Controllers

There are two alternative controllers in Uponor Control System
Wired. The figure below shows a controller with actuators and
thermostats.
UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
Description
6-channel controller
12-channel controller
Mounting screws and plugs
Installation and Operation
Manual
Floor sensor for Thermostats
T-36,T-38, T-33 and T-37
(option)
Optional heating-cooling
relay
Optional timer
functions
Uponor Controller, 6 Channels C-33 Wired
The Uponor Controller, 6 Channels C-33 Wired controls up to 6
thermostats and 8 actuators connected to the hydraulic system of
the installation.
The controller drives the actuators according to the information
received from each thermostat and according to the system
parameter settings.
The controller is typically located near the hydraulic system
manifolds.
The window in the actuator shows when a valve is open or closed.
Uponor Controller, 12 Channels C-35 Wired
The Uponor Controller, 12 Channels C-35 Wired controls up to 12
thermostats and 14 actuators connected to the hydraulic system
of the installation.
The controller drives the actuators according to the information
received from each thermostat and according to the system
parameters settings.
The controller is typically located near the hydraulic system
manifolds.
The window in the actuator shows when a valve is open or closed.
Several extensions can be added on to the 12-channel controller:
A timer can be used to add energy saving features in one or
two independent timer zones
If the installation is equipped with a cooling unit, Uponor
Control System Wired can be run through a heating–cooling
relay
If the installation is equipped with a cooling unit, a dew point
sensor can be connected to the control system
7
