4.5
Connecting the controller to AC power
To conclude the installation of the controller:
1. Check that all wiring is complete and correct:
•
Thermostats
•
Actuators
•
Timer
•
Heating–cooling switch
•
Circulation pump
2. Ensure that the 230 V AC compartment of the controller is
closed and the fixing screw is tightened.

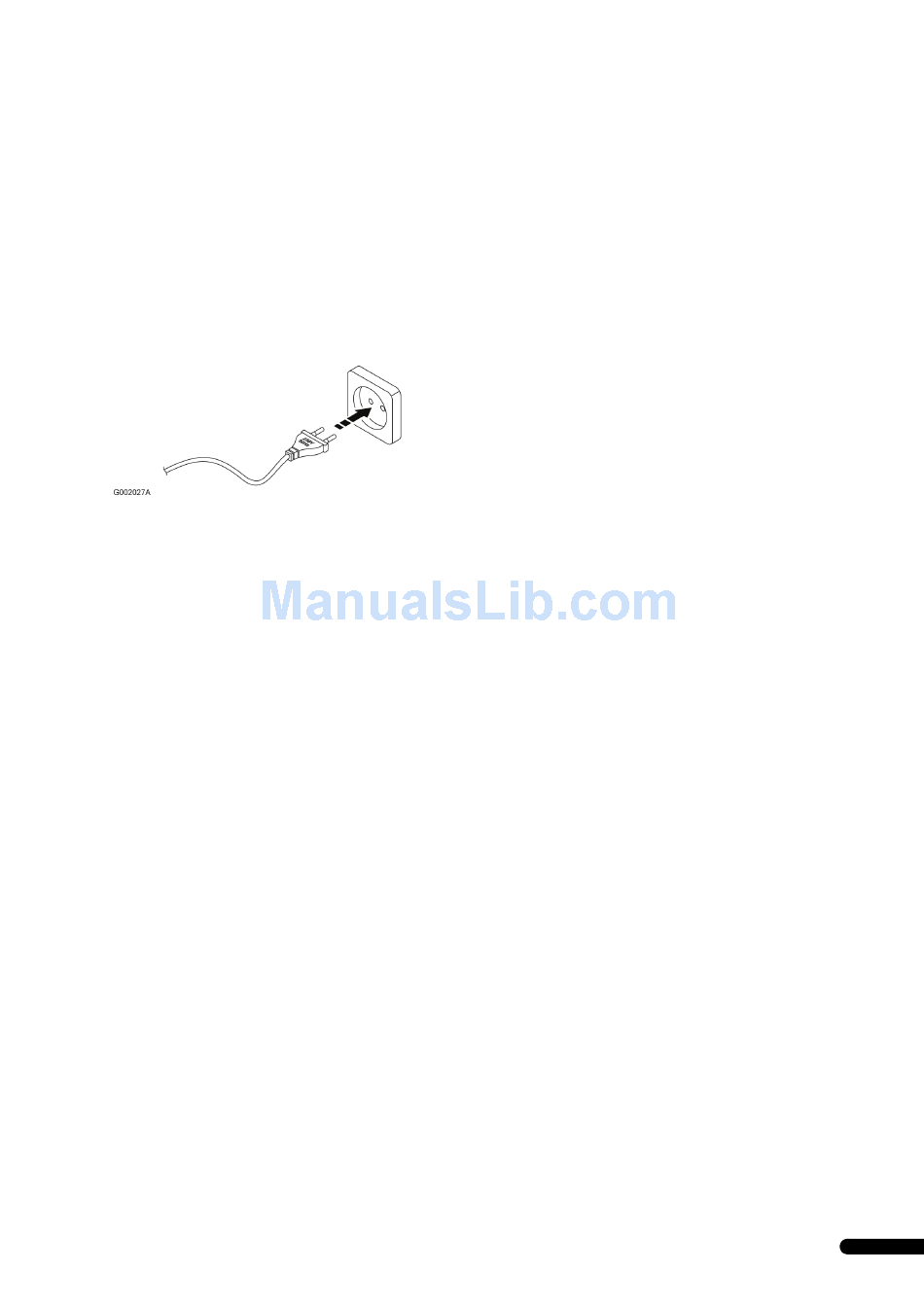

3. Connect the power cable to a 230 V AC wall socket.
UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
17
