NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
4.4.3
Uponor Controller C-35 with four thermostats
and without timer

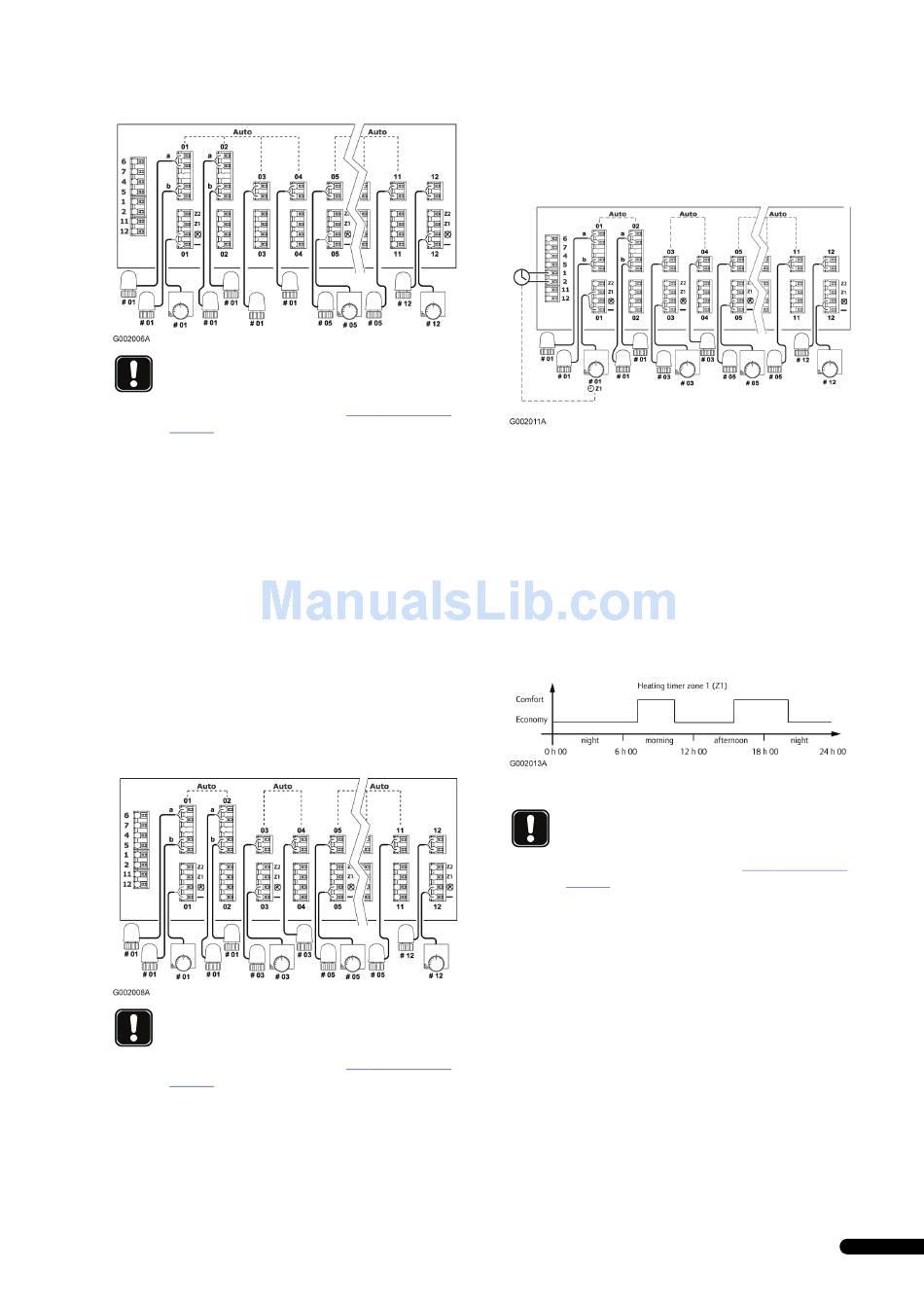

A connection example of Uponor Controller C-35 using four
thermostats is shown in the figure below.
Thermostat #01 controls the actuators on channels 01a, 01b,
02a,and 02b
Thermostat #03 controls the actuators on channels 03 and 04
Thermostat #05 controls all actuators on channels 05 to 11
Thermostat #12 controls the actuator on channel 12
The installation will work in a standard way with the thermostats
regulating each room according to their set temperatures.
See also the wiring diagram on the foldout page.
NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
4.4.4
and timer
A connection example of Uponor Controller C-35 using four
thermostats is shown in the figure below.
4.3.2 Auto linking,
Thermostats and actuators
Timer
See also the wiring diagram on the foldout page.
4.4.5
timer and heating–cooling switch
A connection example of Uponor Controller C-35 using four
thermostats, a timer, and a heating–cooling switch is shown in
the figure below.
4.3.2 Auto linking,
Uponor Controller C-35 with four thermostats
Thermostat #01 controls the actuators on channels 01a, 01b,
02a,and 02b
Thermostat #03 controls the actuators on channels 03 and 04
Thermostat #05 controls all actuators on channels 05 to 11
Thermostat #12 controls the actuator on channel 12
The timer controls the switching between comfort and
economy modes for Thermostat #01, see example diagram
below
NOTE!
When connecting thermostats and actuators to the
Uponor Controller, the auto-linking rules must always
be followed strictly. See section
page 11
Any disregard to follow the auto linking rules will
result in erroneous function of the Uponor Controller.
Uponor Controller C-35 with four thermostats,
4.3.2 Auto linking,
