Installing thermostats

The following thermostats can be connected to Uponor Control
System Wired:
•
Uponor Digital Thermostat T-36 Wired
•
Uponor Programmable Digital Thermostat T-38 Wired
•
Uponor Thermostat Flush T-34 Wired:
•
Uponor Thermostat T-35 Wired:
•
Uponor Thermostat T-37 Wired:
•
Uponor Thermostat Public T-33 Wired:
Analog thermostats
•
Uponor Thermostats T-34 and T-35:
The temperature is adjusted with the dial. The dial must be
removed to set the minimum and maximum setpoints on the
thermostat.
The two thermostats are identical in function but differ in
design.
•
Uponor Thermostat T-37:
The temperature is adjusted with the dial. The potentio-
meters used for the settings are protected with a cover. The
dial and the cover must be removed to set the minimum and
maximum setpoints on the thermostat.
The thermostat can also be used to connect an optional floor
sensor.
•
Uponor Thermostat T-33:
This thermostat is designed for public location. The
potentiometers used for the settings are protected with a
cover.
The thermostat can also be used to connect an optional floor
sensor.
5.1

Selecting locations for thermostats

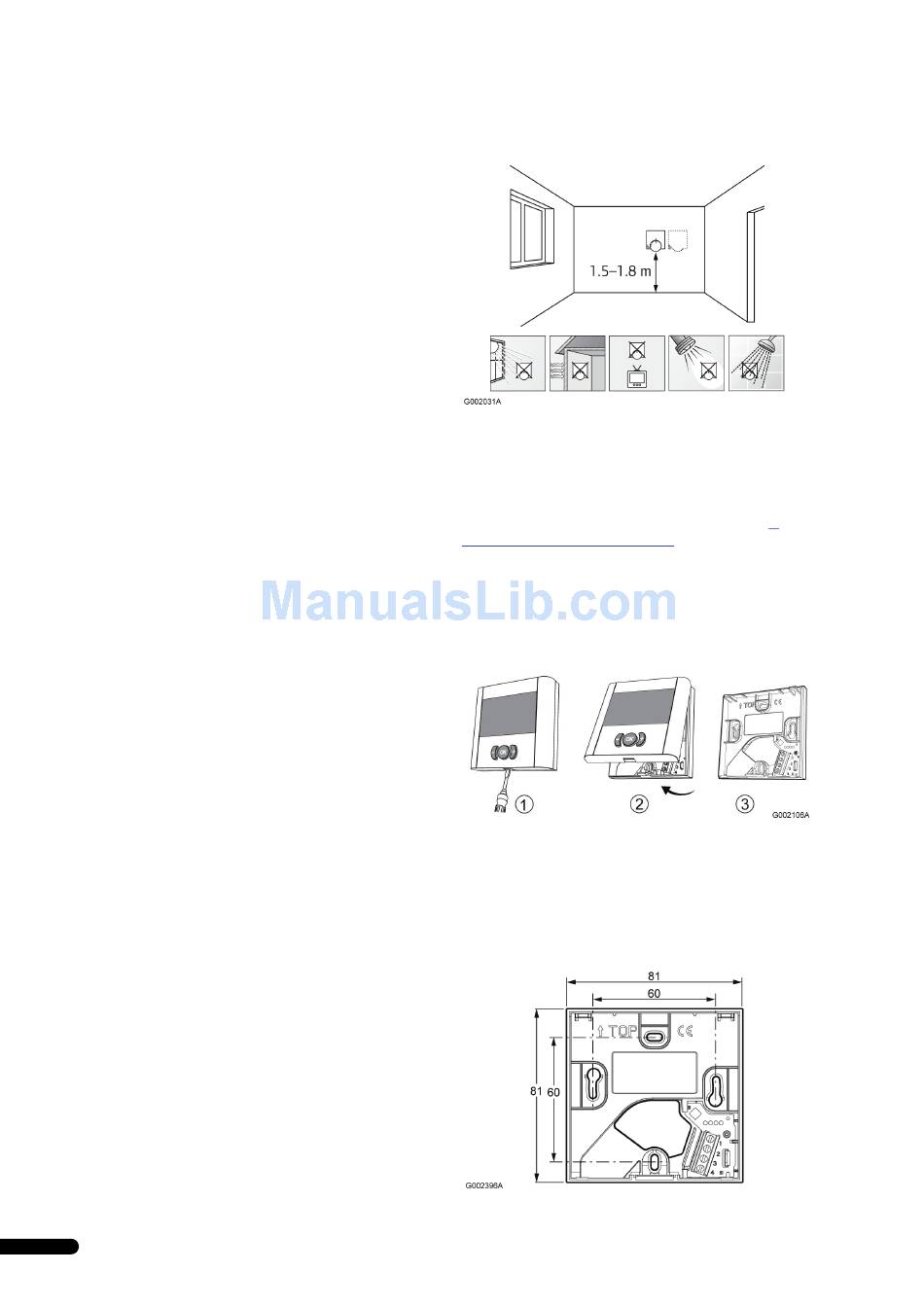

To select a good location for a thermostat:
1. Select an indoor wall and a position 1.5 m to 1.8 m above the
floor.
2. Ensure that the thermostat is away from direct solar
radiation.
3. Ensure that the thermostat will not be heated through the
wall from sunshine.
4. Ensure that the thermostat is away from any source of heat,
for example television set, electronic equipment, fireplace,
spotlights, and so on.
5. Ensure that the thermostat is away from any source of
humidity and water splashes. (IP20)
18
5.2

Installing Uponor Thermostats T-36 and

T-38
Uponor Thermostats T-36 and T-38 are digital thermostats with
three buttons on the front to set the setpoint temperature.
For instructions to operate the thermostats, see section
Operating digital thermostats, page
5.2.1

Opening the thermostats

1. Gently press the tab at the bottom of the thermostat
housing.
2. Lift off the top part from the mounting frame.
5.2.2

Mounting the thermostats

Uponor Thermostats T-36 and T-38 are delivered in kits including
screws and plugs.
The figure below shows required space for the thermostats and
mounting hole positions.
