5.2.3

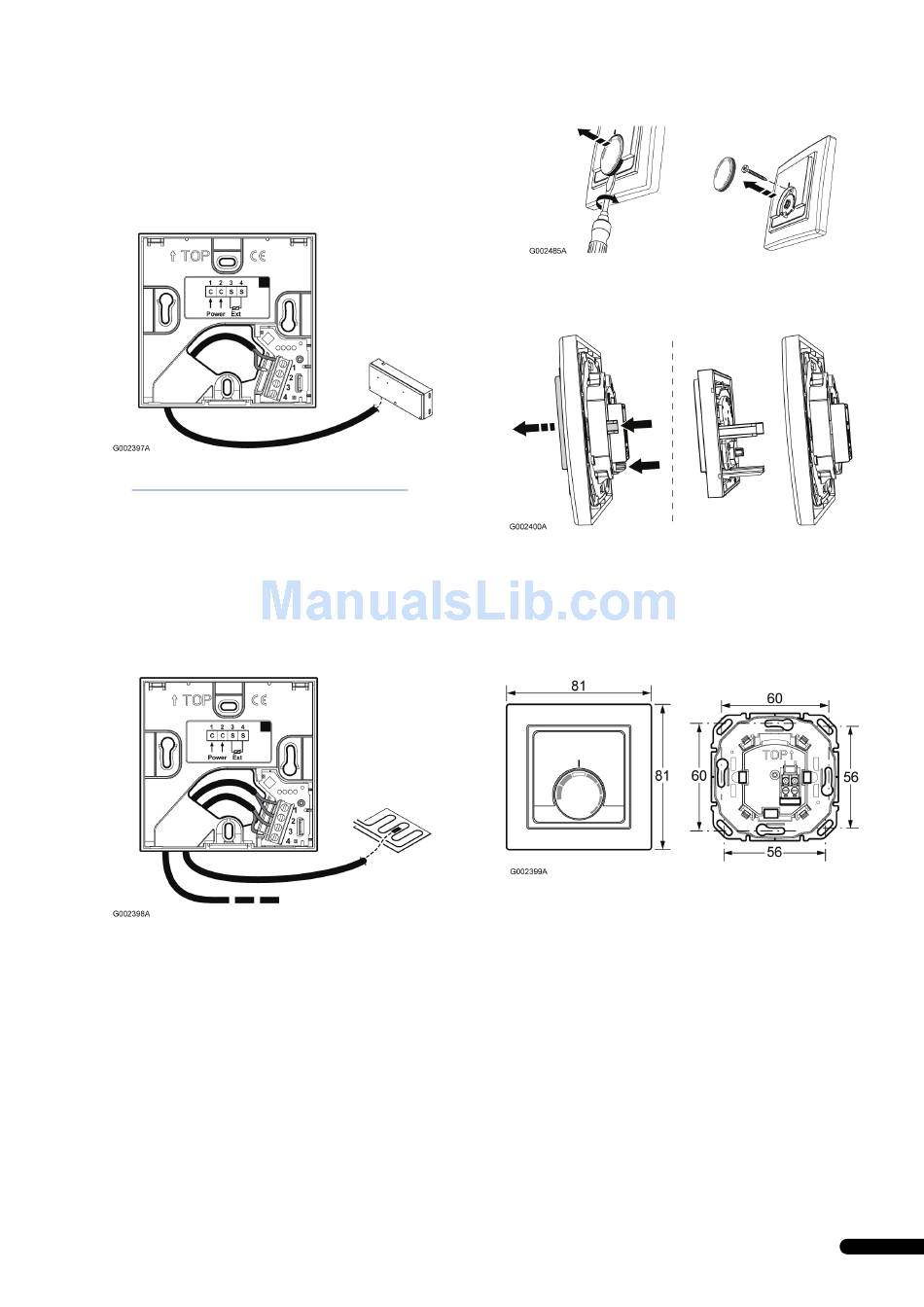

Connecting thermostat to controller

To connect the thermostat to the controller:
1. Insert the two wires of the thermostat cable into the
connector terminals labelled 1 and 2.
2. Tighten the screws fixing the wires in the terminal block.
Connecting the cable to the controller is described in section
4.3 Connecting components to controller, page
5.2.4

Connecting an optional external sensor

It is possible to connect a floor sensor or a remote indoor sensor
to Uponor Thermostats T-36 and T-38.
1. Insert the two wires of the sensor cable into the connector
terminals labelled 3 and 4.
2. Tighten the screws fixing the wires in the terminal block.
The figure below shows how to connect a floor sensor.
5.3 Installing Uponor Thermostat T-34
Uponor Thermostat T-34 is a flush mounted, analog thermostat
with a dial on the front to set the setpoint temperature.
5.3.1

Opening the thermostats

1. Remove the dial and unscrew the fixing screw, see illustration
below.
UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
2. At the back of the thermostat, gently push the three guides
(two indicated in the figure below) to separate the
electronics part from the mounting frame.
10.
5.3.2

Mounting the thermostats

Uponor Thermostat T-34 is delivered in a kit including screws and
plugs.
The figure below shows required space for the thermostat and
mounting hole positions.
5.3.3 Connecting thermostat to controller
To connect the thermostat to the controller:
1. Insert the two wires of the thermostat cable into the
connector terminals.
2. Tighten the screws fixing the wires in the terminal block.
19
