The screen displays CLK (clock).
2. Press OK to enter the clock menu.
The screen displays YR (year) and four digits designating the
year are blinking.
3. Press the + and - buttons to change the setting.
4. Press OK to confirm the setting.
The screen displays MTH (month) and two digits designating
the month are blinking.
5. Press the + and - buttons to change the setting.
6. Press OK to confirm the setting.
The screen displays DAY (day) and two digits designating the
date are blinking.
7. Press the + and - buttons to change the setting.
8. Press OK to confirm the setting.
The screen displays TME (time) and either 24:H or AM/PM
12:H, designating the time format are blinking.
9. Press the + and - buttons to change the setting.
10. Press OK to confirm the setting.
The screen displays TME (time) and four digits designating
the time are blinking.
11. Press the + and - buttons to change the setting:
•
Press once and the time setting increments with a 1
minute step.
•
Press continuously and the time setting increments with
1 minute steps, after a few seconds increments are made
with 10 minute steps and then 1 hour steps.
12. Press OK to confirm the setting.
The screen displays S/W (summer-winter time).
Two alternatives are selectable:
•
S/W and OK displayed: Automatic change of summer-
winter time activated
•
S/W only displayed: Automatic change of summer-
winter time dis-activated
Example: Automatic summer-winter time change selected.
13. Press OK to confirm the setting and proceed to the next
menu, PRG.
10.7 PRG – Programming
The programming menu is used to adjust the settings for comfort
and economy modes.
To change the programming:
1. When PRG is displayed, press OK to enter the menu.
The screen displays the same zone, Z1 or Z2, that was
displayed in run mode.
2. If required, press the + or - button to change zone.
3. Press OK to start the programming.
UPONOR CONTROL SYSTEM WIRED - INSTALLATION AND OPERATION MANUAL
The group of days flashes (day numbers with frames).
4. Press + or - successively to change the group of days.
There are three choices:
•
Monday till Friday, default setting
•
Monday till Saturday
•
Monday till Sunday
5. Press OK to confirm the setting.
The digital clock starts flashing.
6. Press and hold the OK key for 3 seconds to select the default
schedule.

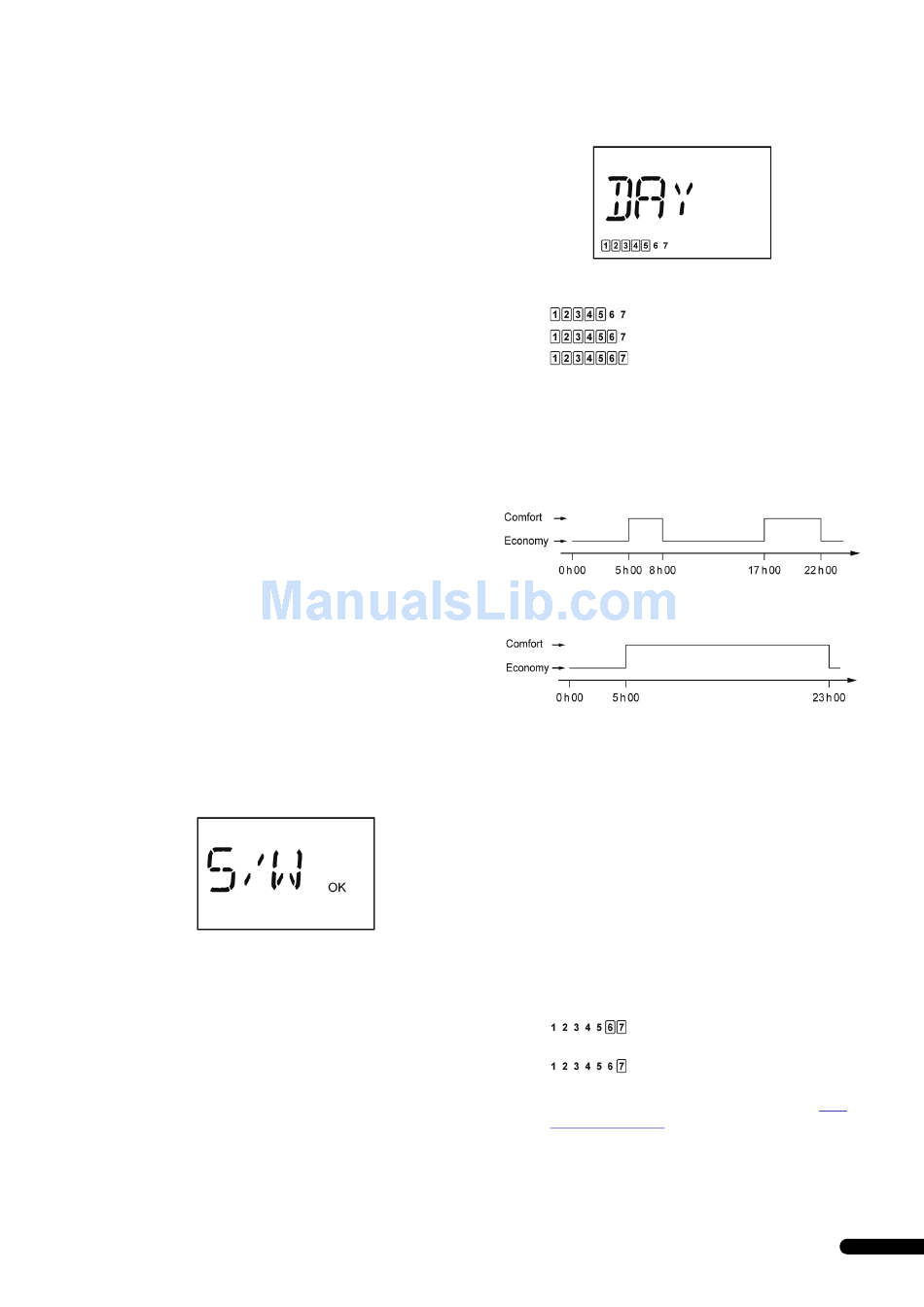

The diagram below shows the default schedule for Monday
till Friday or Monday till Saturday programming groups.
The next diagram shows the default schedule for Monday till
Sunday prgramming group.
7. Press the + and - buttons to modify the default clock setting:
•
Press once and the time setting increments with a 1
minute step.
•
Press continuously and the time setting increments with
1 minute steps, after a few seconds increments are made
with 10 minute steps and then 1 hour steps.
•
Set the clock to the time for the first comfort/economy
changeover.
8. Press the OK key to change between comfort and economy
mode at the desired time.
Continue to the next comfort/economy changeover with the
+ button. Up to 5 changes in 24 hours are permitted.
9. Continue stepping the clock until midnight is passed.
Depending on the selection made in step 4. above, the screen
displays the following:
•
If the group Monday till Friday was selected, then
Saturday till Sunday is displayed.
•
If the group Monday till Saturday was selected, then
Sunday is displayed.
•
If the group Monday till Sunday was selected, then the
screen displays the next menu, HOL, see section
HOL – Holiday mode.
10. Press and hold the OK key for 3 seconds to select the default
schedule.
10.8
