6 Installing Uponor Timer I-36 for C-35
Uponor Timer I-36 for C-35 is a digital timer with three buttons
on the front to adjust various timing functions.
For instructions how to operate the thermostats, see section
Operating digital thermostats, page

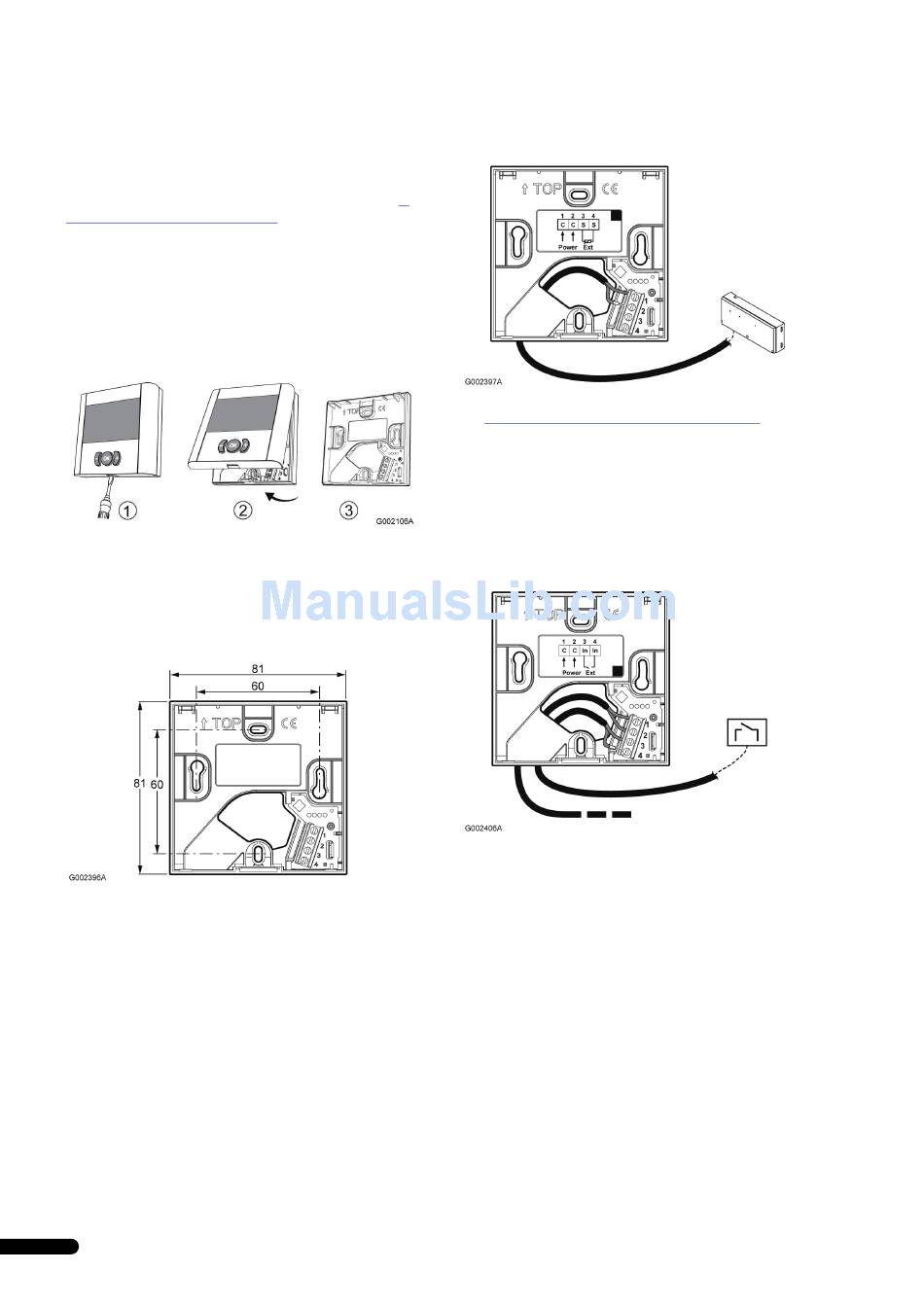

6.1 Opening Uponor Timer I-36
To open Uponor Timer I-36:
1. Gently press the tab at the bottom of the thermostat
housing.
2. Lift off the top part from the mounting frame.
6.2 Mounting Uponor Timer I-36
Uponor Timer I-36 is delivered in a kit including screws and plugs.
The figure below shows required space for the thermostats and
mounting hole positions.
6.3

Connecting Timer I-36 to controller

To connect Uponor Timer I-36 to the controller:
1. Insert the two wires of the timer cable into the connector
terminals labelled 1 and 2.
2. Tighten the screws fixing the wires in the terminal block.
22
9
26.
Connecting the cable to the controller is described in section
4.3 Connecting components to controller, page
6.4

Connecting an optional dry contact

It is possible to connect a dry contact input to Uponor Timer I-36,
for example a Uponor Remote Access Module R-56.
1. Insert the two wires of the dry contact cable into the
connector terminals labelled 3 and 4.
2. Tighten the screws fixing the wires in the terminal block.
