Mounting The Siren - Electronics Line iconnect Installation Manual

3. Open the housing – lift the front cover away from the rear housing.
4. Insert the batteries while paying attention to polarity (see Figure 3-2
and Figure 3-3).
5. The Siren will send a transmission. If the transmission is successfully received
by the system it will play a confirmation sound. If no confirmation sound is
heard send another transmission by pressing and releasing the tamper switch
of the Siren.
6. As soon as 'Save?' appears press '√ʹ.

4. Mounting the Siren

After the Siren has been registered mount the unit as follows:
1. Place the back cover in position against the wall and mark the upper and lower
mounting holes.
2. Install wall anchors in the appropriate positions.
3. Attach the back cover to the wall using supplied screws (see Figure 4-1).

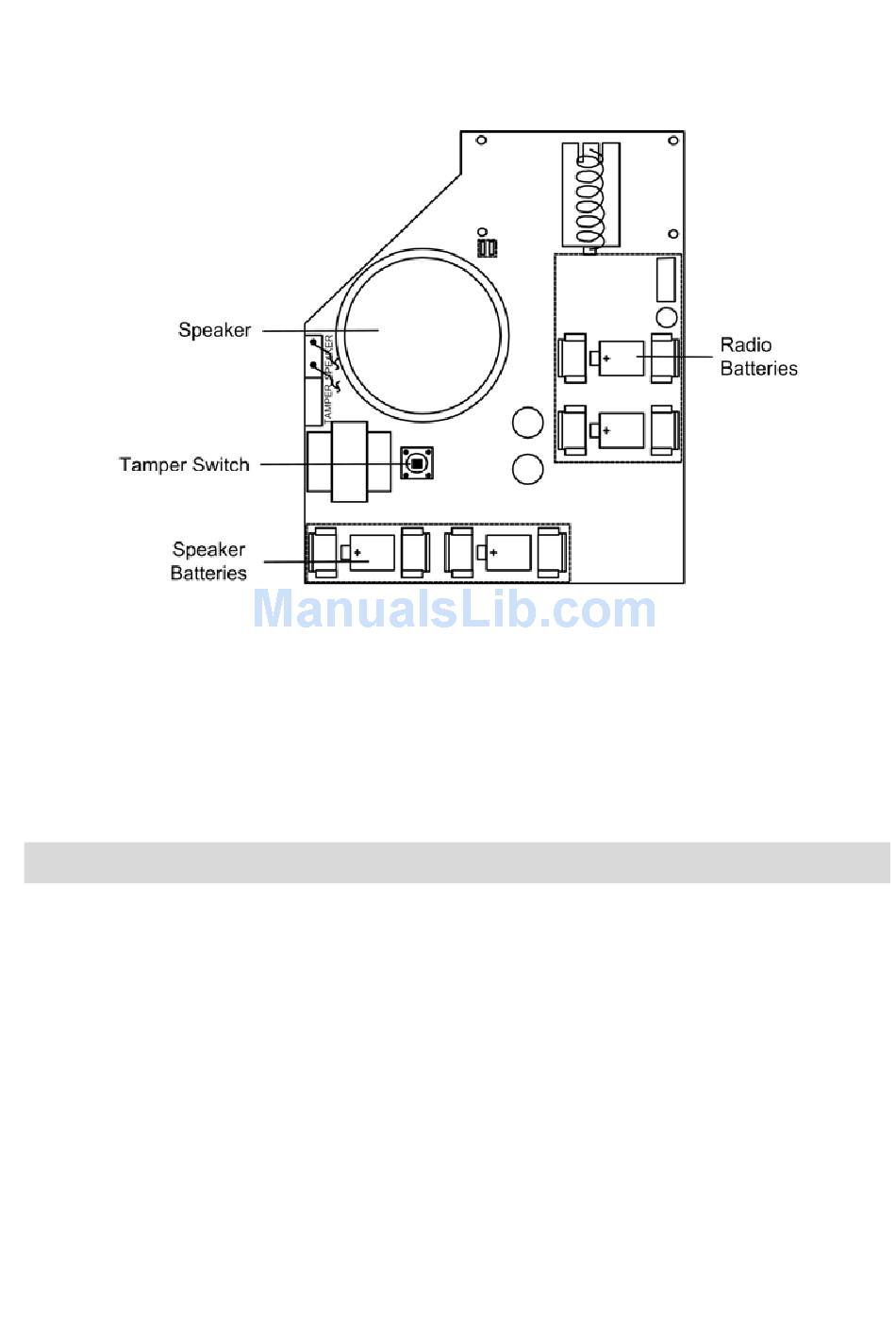

Figure 3-3: Inserting the batteries #2
4
