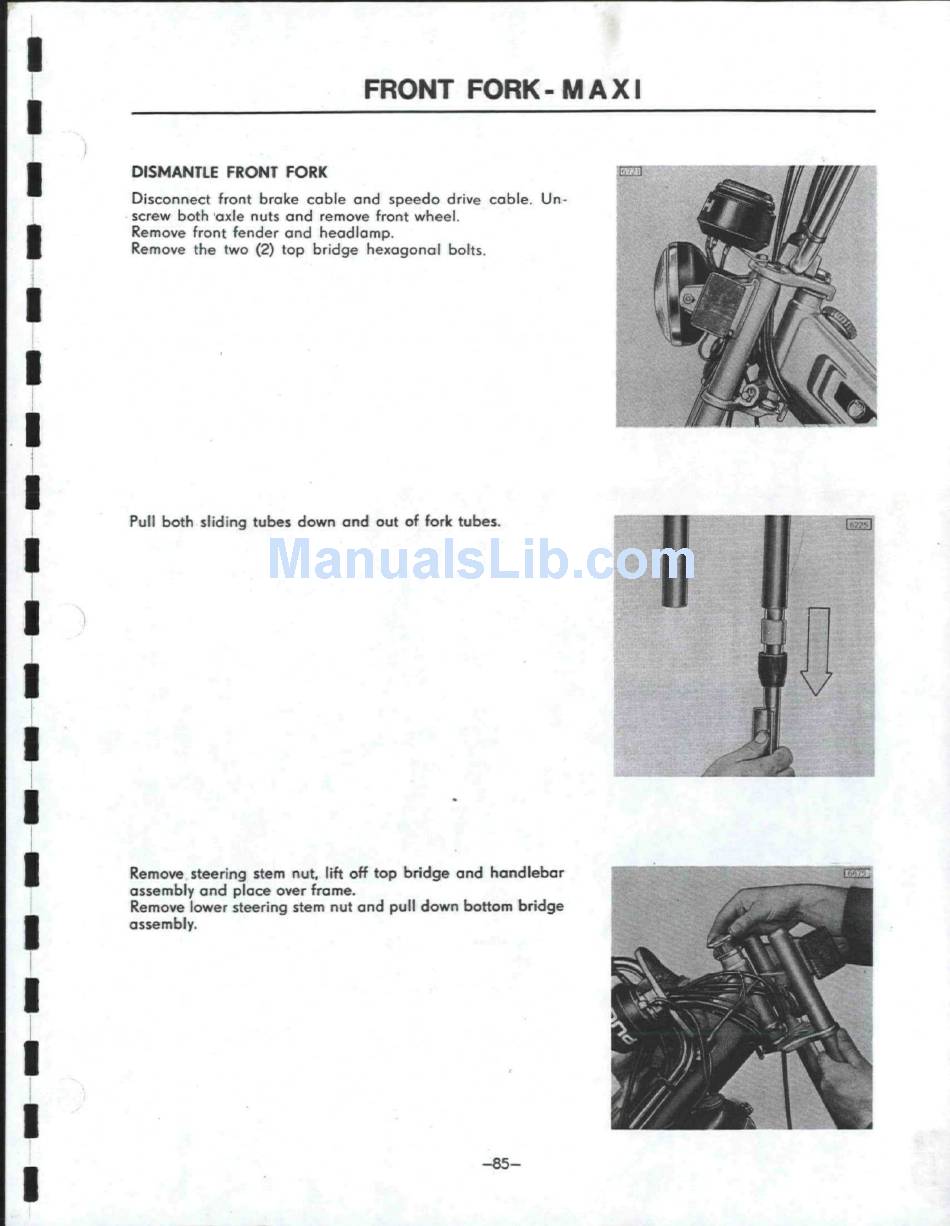

Front Fork-Maxi - Puch 1980-1981 Maintenance Manual

FRONT FORK-MAX I
DISMANTLE FRONT FORK
Disconnect front broke coble and speedo drive coble. Un-
screw both axle nuts and remove front wheel.
Remove front fender and headlamp.
Remove the two (2) top bridge hexagonal bolts.
Pull both sliding tubes down and out of fork tubes.
I"?:"-!
Remove steering stem nut, lift off top bridge and handlebar
assembly and place over frame.
Remove lower steering stem nut and pull down bottom bridge
assembly.
- 8 5 -
