ELECTRICAL EQUIPMENT
-¥$&
m I
IGNITION FUNCTION
Baa FLYWHEEL MAGNETO

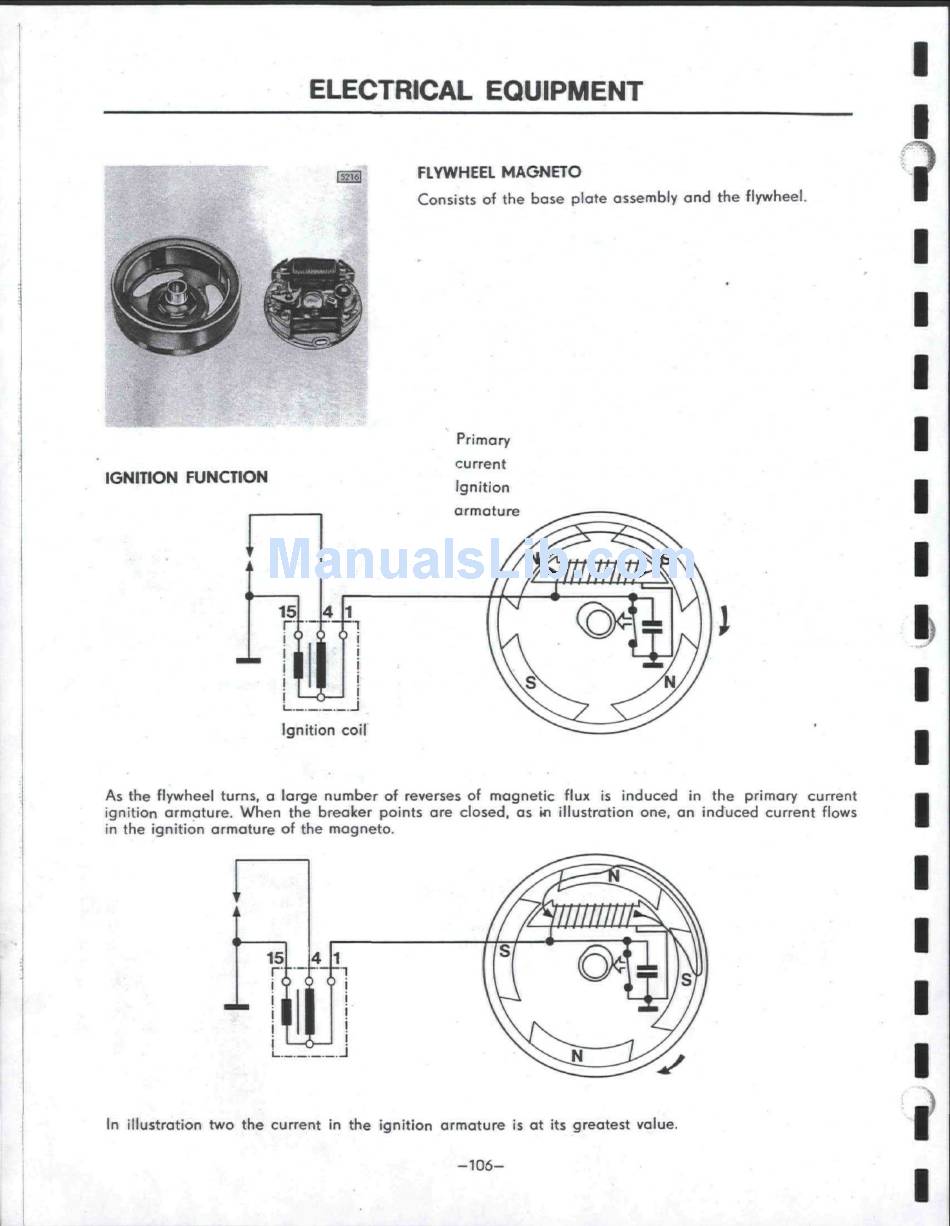

Consists of the base plate assembly and the flywheel.
"
Primary
current
Ignition
armature
mm
I
I
Ignition coi
As the flywheel turns, a large number of reverses of magnetic flux is induced in the primary current
ignition armature. When the breaker points are closed, as in illustration one, an induced current flows
in the ignition armature of the magneto.
15
m
mam
I
In illustration two the current in the ignition armature is at its greatest value.
- 1 0 6 -
