Idler Gear-Drive Sprocket - Puch 1980-1981 Maintenance Manual

I

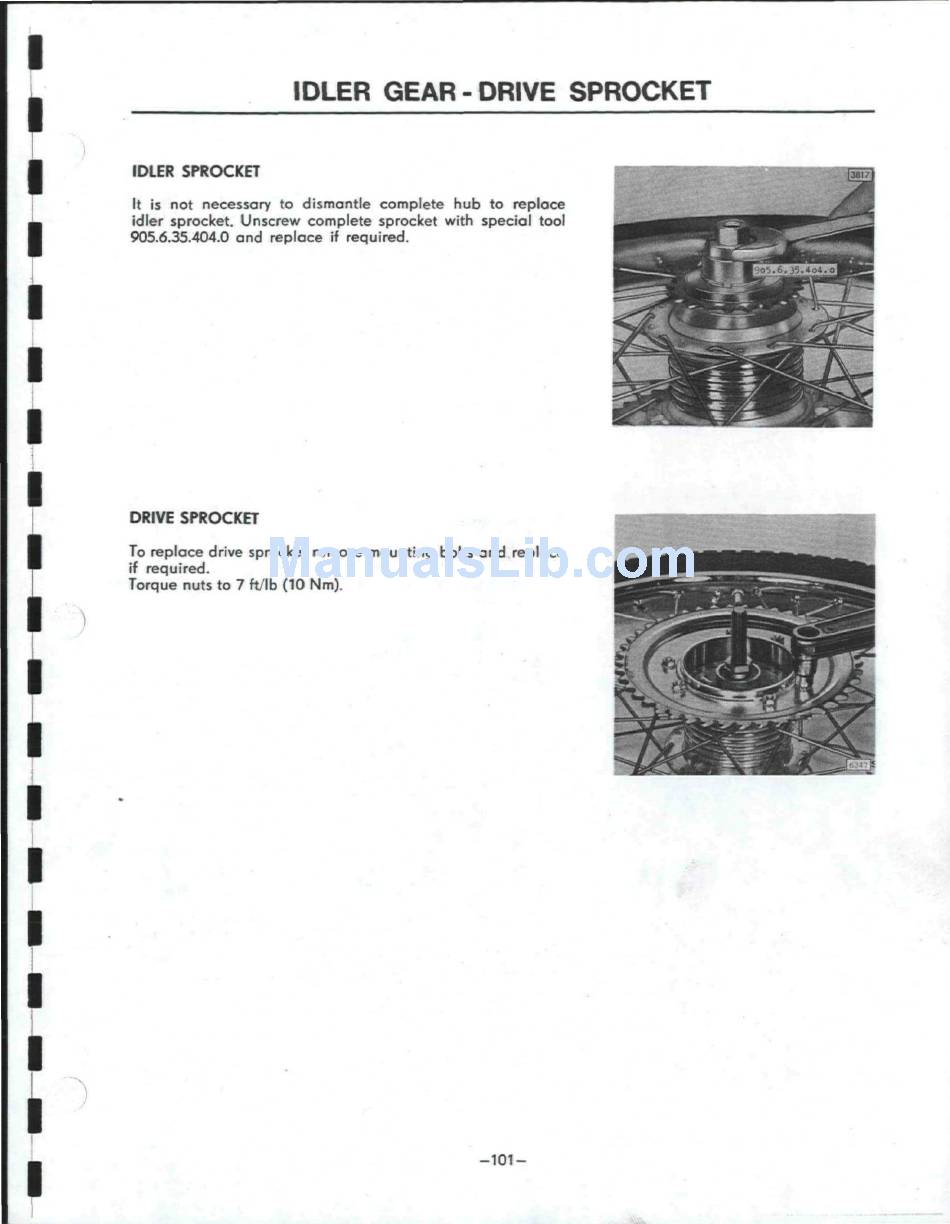

IDLER GEAR-DRIVE SPROCKET
j
I
I
I
I
i
i
i
•
•
)
• )
IDLER SPROCKET
It is not necessary to dismantle complete hub to replace
idler sprocket. Unscrew complete sprocket with special tool
905.6.35.404.0 and replace if required.
DRIVE SPROCKET
To replace drive sprocket remove mounting bolts and replace
if required.
Torque nuts to 7 ft/lb (10 Nm).
I
- 1 0 1 -
