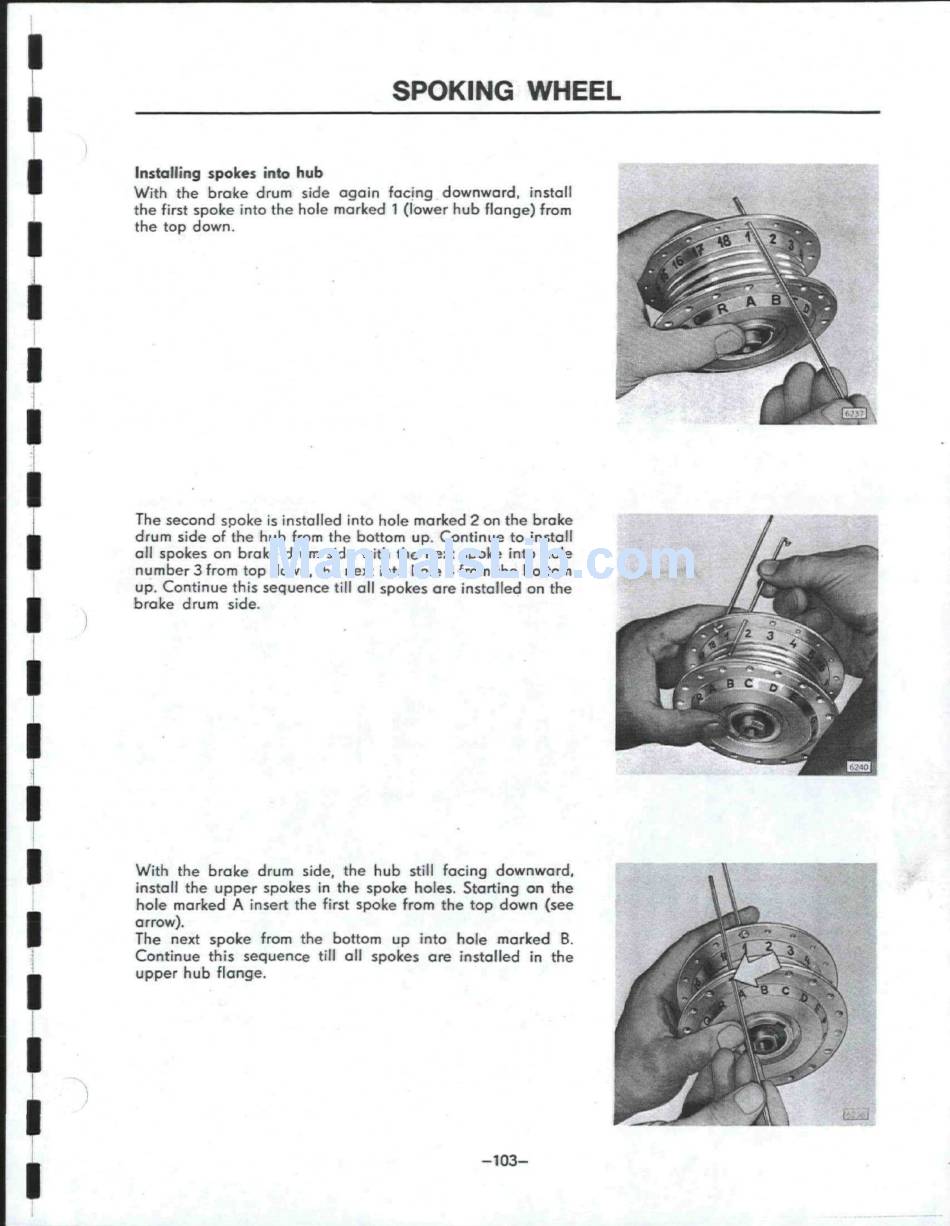

SPOKING WHEEL
Installing spokes into hub
With the brake drum side again facing downward, install
the first spoke into the hole marked 1 (lower hub flange) from
the top down.
The second spoke is installed into hole marked 2 on the brake
drum side of the hub from the bottom up. Continue to install
all spokes on brake drum side with the next spoke into hole
number 3 from top down, the next into hole 4 from the bottom
up. Continue this sequence till all spokes are installed on the
brake drum side.
With the brake drum side, the hub still facing downward,
install the upper spokes in the spoke holes. Starting on the
hole marked A insert the first spoke from the top down (see
arrow).
The next spoke from the bottom up into hole marked B.
Continue this sequence till all spokes are installed in the
upper hub flange.
- 1 0 3 -
