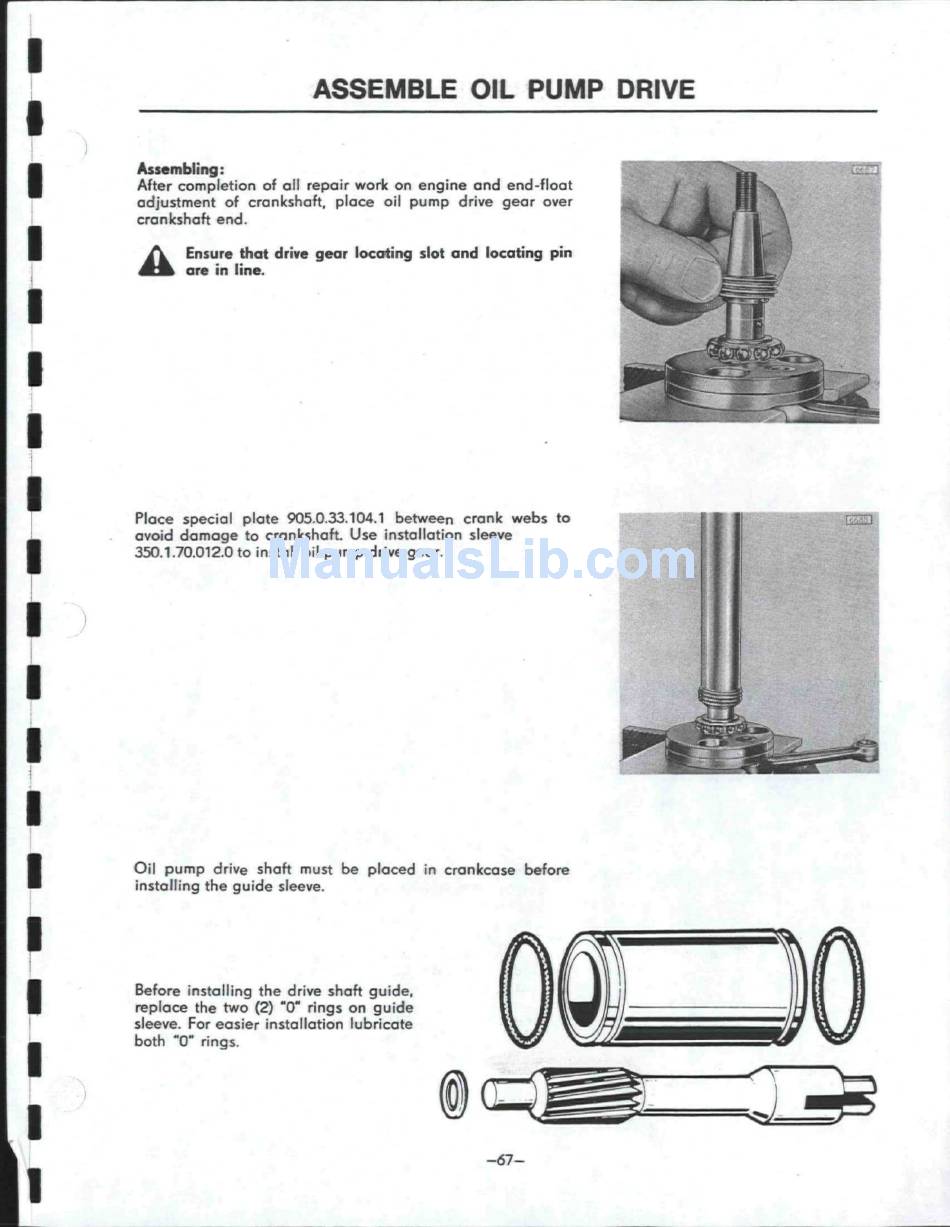

ASSEMBLE OIL PUMP DRIVE
Assembling:
After completion of all repair work on engine and end-float
adjustment of crankshaft, place oil pump drive gear over
crankshaft end.
Ensure that drive gear locating slot and locating pin
are in line.
Place special plate 905.0.33.104.1 between crank webs to
avoid damage to crankshaft. Use installation sleeve
350.1.70.012.0 to install oil pump drive gear.
O i l pump drive shaft must be placed in crankcase before
installing the guide sleeve.
Before installing the drive shaft guide,
replace the two (2) "0" rings on guide
sleeve. For easier installation lubricate
both " 0 " rings.
- 6 7 -
