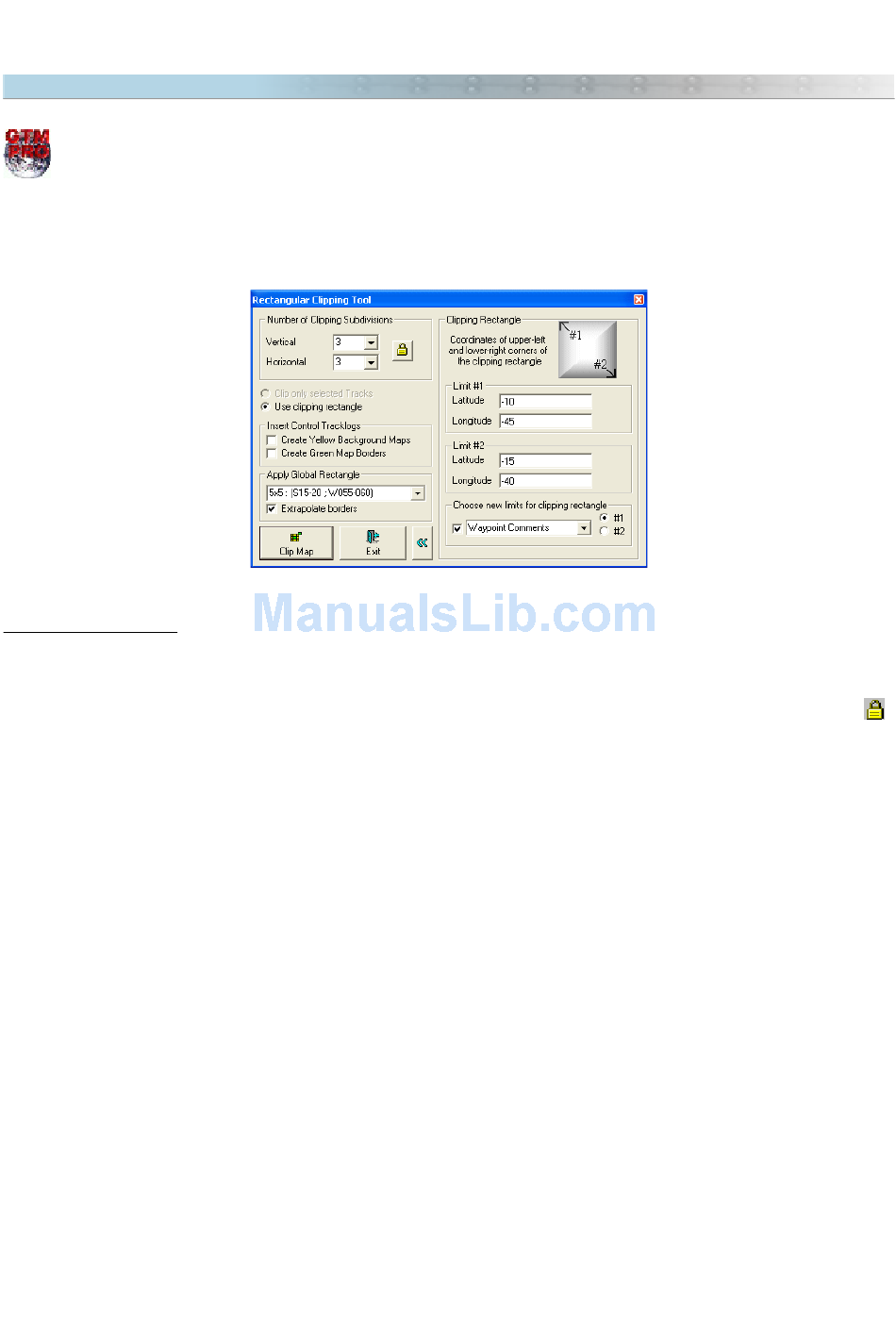

8.8 Rectangular Clipping Tool

This option is available only in GPS TrackMaker Professional®.
The Rectangular Clipping Tool is an advanced resource that allows clippings in Tracklogs and Waypoints, dividing
the selected areas in rectangles.
To use it, select the Tracklogs and Waypoints and click in Tools > Rectangular Clipping .
Clipping Options
Number of Subdivisions
Choose the number of horizontal and vertical subdivisions that will be created after clipping. The button
configures the same number for vertical and horizontal subdivisions.
Clip only Selected Tracks
If checked, only the selected Tracklogs will be clipped.
Use Clipping Rectangle
Only the data located inside the clipping rectangle will be preserved and clipped conform the number of
subdivisions. All elements outside the rectangle will be eliminated.
Insert Tracklogs of Control
Selecting this option, Tracklogs with the styles Green Map Border and Yellow Map Background will be created,
facilitating the visualization of the clipping areas.
Apply Global Rectangle
Your can choose predefined global clipping rectangles located in the same region of the selected data. Global
rectangles are subdivisions of the globe with 1x1º, 2x2º, 3x3º, 5x5º and so on. It is a good option if you need to
divide great areas for mapping.
