11.2 Rotating Images

This option is available only in GPS TrackMaker Professional®.
GPS TrackMaker® uses a process of calibration with two stages:
1 – Image rotation to match the angle of the map grid with the program grid.
2 – Image calibration with two points, changing the position, height and width of the image.
Only Raster images are rotated. Vector images like WMF, EMF and icons cannot be rotated. It is possible to rotate
images with hundredth-degree accuracy.

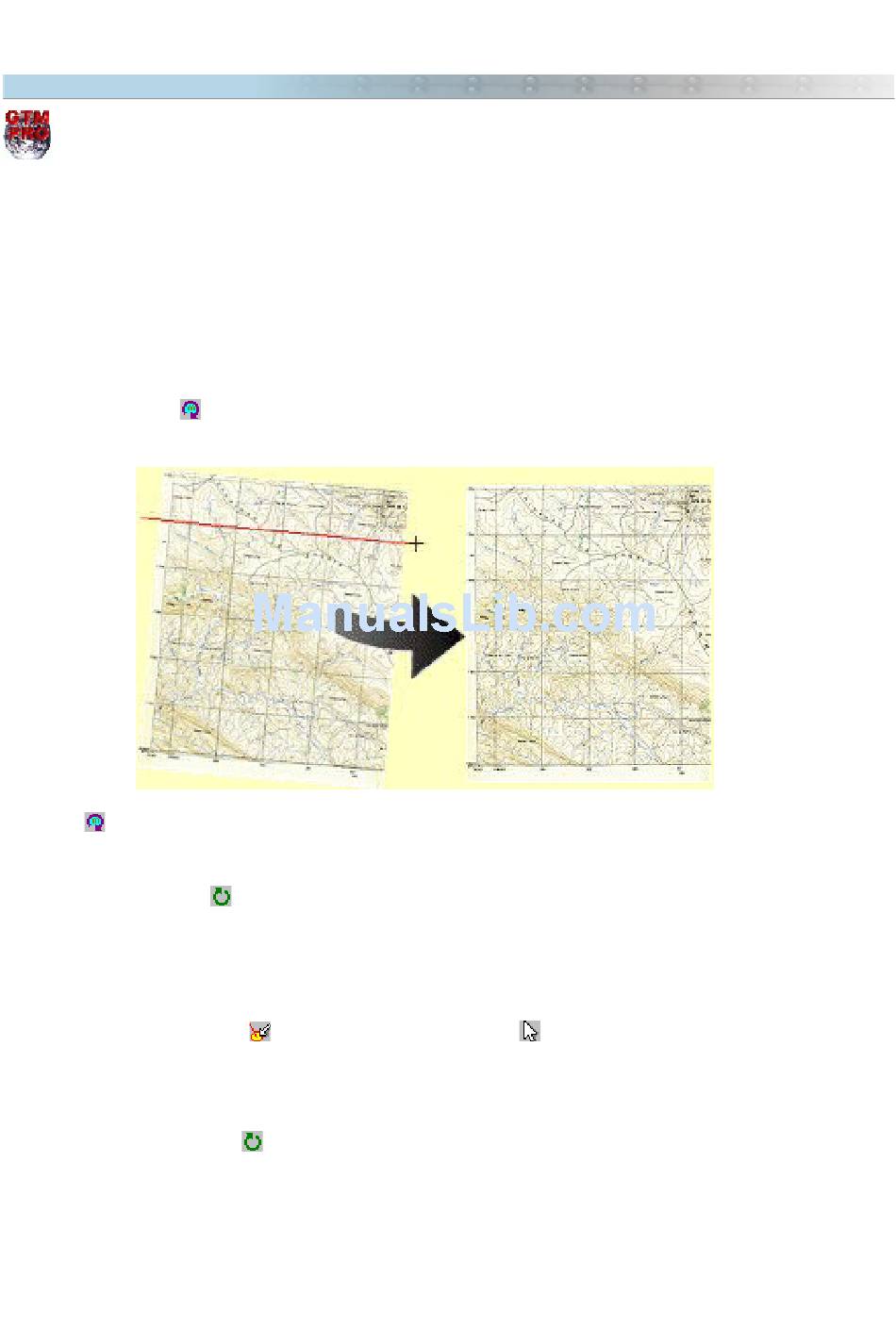

Image Rotation Tool
Image Rotation Tool
create a segment of line on the grid lines of the image, calculating the correct angle of rotation.
Press the button and click with the mouse left button on the beginning of the grid line on the image. Drag the
mouse to the other extremity of the grid line and click again in the left button. It is not necessary to drag the
mouse with the button pressed. The Image Rotation Window will be opened, indicating the correct angle of
rotation. Press the button
Simple Rotation
Another way to rotate the image is by typing the angle of rotation:
• Press the Detect Elements
• Click with the left button of the mouse on the image.
• A pop-up menu will appear close to the pointer of the mouse.
• Choose the Rotate Image option.
• The Image Rotation Window will be opened.
• Type the angle and press
TIP: If the image was incorrectly calibrated and needs a new calibration, first restore its original aspect ratio. For
further information, see
located in the tool bar can easily rotate map images with grid lines. This tool allows to
to conclude the rotation of the image.
button and the Selection Tool
Restoring the Aspect Ratio of the
button.
Image.
