12.4 NMEA0183 Interface

Basic concepts
In 1980, a group of professionals joined to develop a standard communication protocol for nautical equipment.
The result was the National Marine Electronics Association or simply NMEA0180 standard.
A short time later, in order to accommodate the use of equipment that existed in the market, the NMEA0183
protocol was developed, and it is now used as standard in almost in all GPS equipment.
NMEA 0183 communication protocol is based on sending unidirectional data between the GPS and the computer,
through sentences in ASCII format with specific codes.
Data in the NMEA0183 protocol is continually transmitted. That's why, when the User enables the GPS to NMEA,
the GPS communication port will constantly transmit NMEA data, precluding any other kind of communication with
the GPS. In Garmin® models, for example, after configuring the communication protocol to NMEA, any other kind
of communication becomes impossible. It means that the User can't download or send Waypoints, Tracklogs and
Routes to the GPS through the Garmin Interface window.
NMEA0183 Protocol at GPS TrackMaker®
GPS TrackMaker® uses NMEA0183 protocol only in Real Time Navigation (RTN) mode. It means that the User
can't transfer data between the GPS and the Computer if the computer is not in real time navigation mode.
Warning: Before using the NMEA protocol, configure the GPS to NMEA0183 protocol and select the same baud
rate in GPS and in the program.
Activating the Communication in NMEA Protocol
When the program detects the pattern of sentences, the Real Time Navigation mode is automatically enabled.
More information about real time navigation, see
To activate the NMEA0183 communication protocol, follow these steps:
• Connect the GPS to the computer.
• Configure the GPS to NMEA0183 communication protocol.
• Choose the same Datum for the GPS and for the GPS TrackMaker®
program. This procedure is essential!

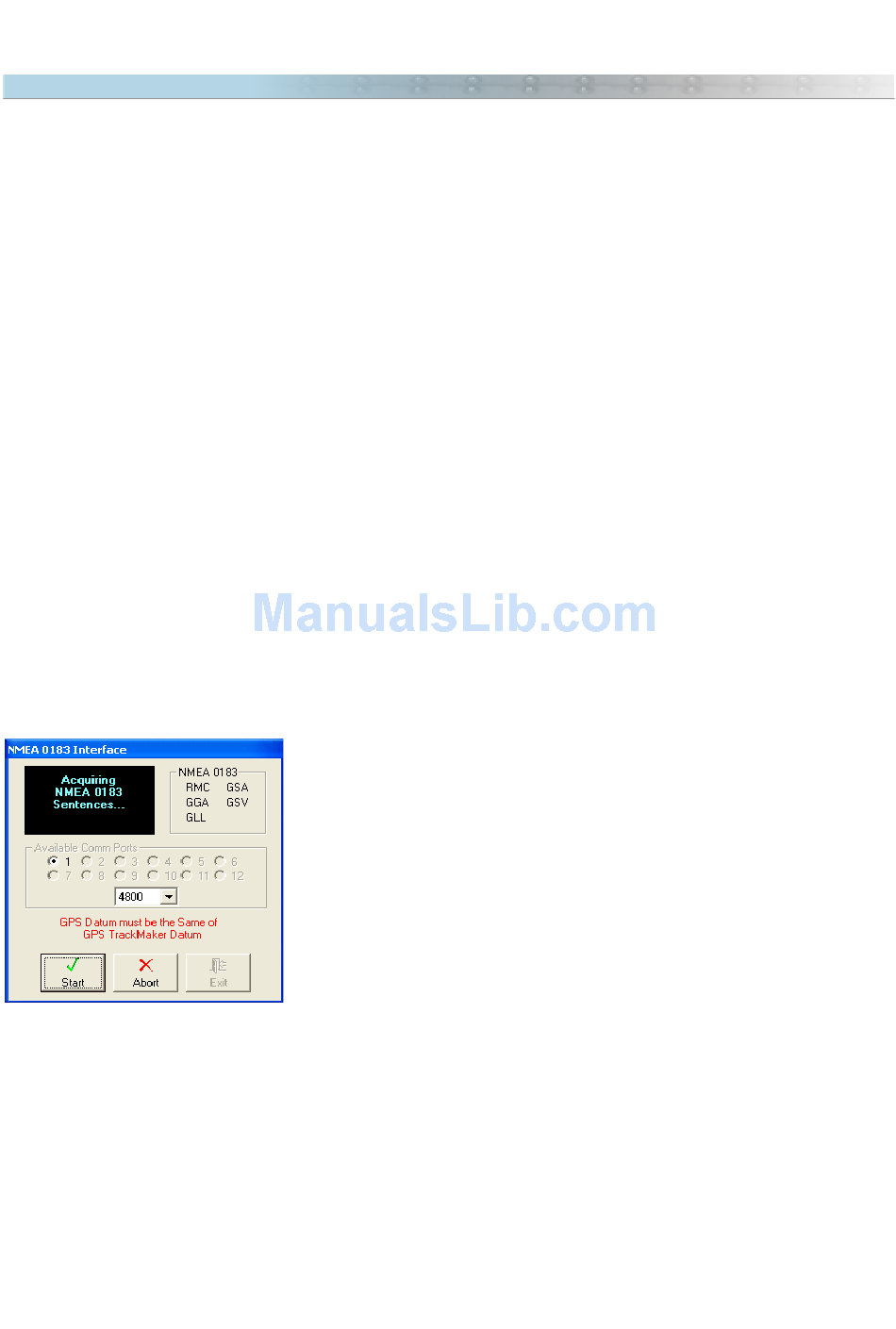

Click on the NMEA0183 Protocol option in the Interface menu, to open
•
the communication window.
• Press the Start button and wait until the program recognizes the data
patterns.
Activating Real Time
145
Navigation.
