ET1

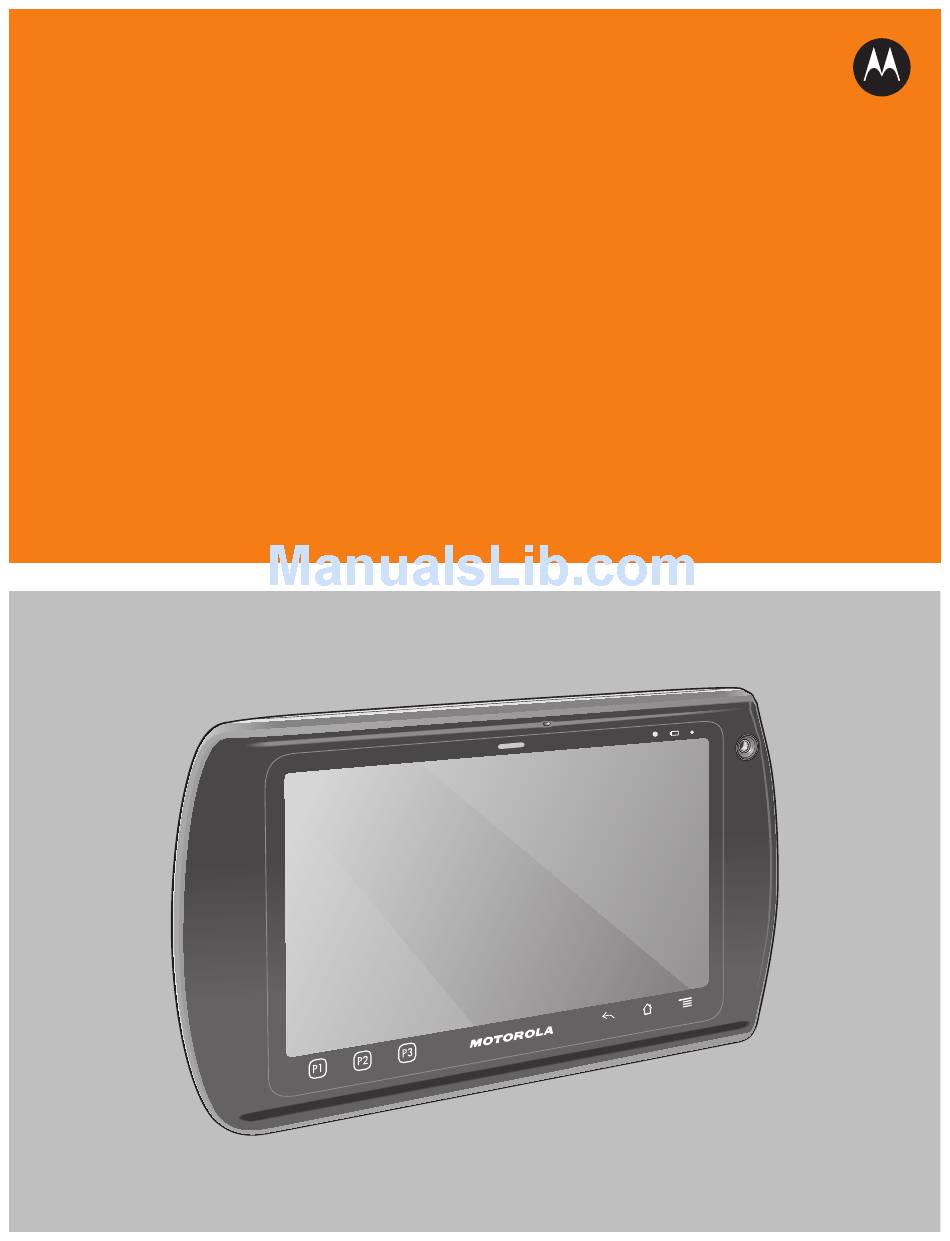

ENTERPRISE TABLET
INTEGRATOR GUIDE

   Also See for Motorola ET1

   Summary of Contents for Motorola ET1

  • Page 1

    ENTERPRISE TABLET INTEGRATOR GUIDE...

  • Page 3

    ET1 ENTERPRSIE TABLET INTEGRATOR GUIDE 72E-148511-01 Rev. A December 2011...

  • Page 4

    Motorola. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law. The user shall not modify, merge, or incorporate any form or portion of a licensed program with other program material, create a derivative work from a licensed program, or use a licensed program in a network without written permission from Motorola.

  • Page 5: Revision History

    Revision History Changes to the original guide are listed below: Change Date Description -01 Rev A 12/23/2011 Initial release.

  • Page 6

    ET1 Enterprise Tablet Integrator Guide...

  • Page 7: Table Of Contents

    Charging the Battery ........................ 1-2 Charging the Main Battery ....................1-2 Charging Temperature ....................... 1-3 Charging Spare Batteries ....................1-3 Powering On the ET1 ....................... 1-3 Powering Off the ET1 ....................... 1-4 Replacing the Battery ........................1-4 Resetting the ET1 .......................... 1-4 Soft Reset ..........................

  • Page 8: Table Of Contents

    ET1 Enterprise Tablet Integrator Guide Setup ............................2-3 Charging the ET1 Battery ......................2-3 Four-slot Charge Only Docking Cradle ..................2-5 Setup ............................2-5 Four-slot Battery Charger ......................2-7 Setup ............................2-7 USB/Charge Cable ........................2-9 Charging the ET1 Battery ......................2-9 2-way Charge Cable ........................

  • Page 9: Table Of Contents

    Remap Keys ..........................4-19 Overriding Trigger Key in an Application ................. 4-20 Capture Data and Taking a Photo in the Same Application ............. 4-20 Disable DataWedge on ET1 and Mass Deploy ................ 4-20 Chapter 5: WLAN Configuration Introduction ............................ 5-1 Configure a Wi-Fi Network ......................

  • Page 10: Table Of Contents

    AppLock Administrator ........................6-8 Manual File Configuration ......................6-8 Groups File ..........................6-8 White List File .......................... 6-9 Determining Applications Installed on the ET1 ................ 6-10 Secure Storage ..........................6-10 Installing a Key ......................... 6-10 Viewing Key List ........................6-11 Delete a Key ..........................

  • Page 11: Single-slot Usb Docking Cradle

    Changing Application Location ...................... 8-12 Managing Downloads ........................8-13 Chapter 9: Maintenance & Troubleshooting Introduction ............................ 9-1 Maintaining the ET1 ........................9-1 Battery Safety Guidelines ......................9-1 Cleaning ............................9-2 Approved Cleanser Active Ingredients ..................9-2 Harmful Ingredients ........................9-3 Cleaning Instructions .......................

  • Page 12

    ET1 Enterprise Tablet Integrator Guide I/O Connector Pin-Outs ......................A-3 HDMI Connector Pin-outs ......................A-4 Headset Connector ........................A-6 Expansion Module Connector Pin-outs ..................A-6 ET1 Accessory Specifications ....................... A-8 Single-slot USB Docking Cradle ....................A-8 Four-slot Battery Charger ......................A-8 Four-slot Charge Only Docking Cradle ..................

  • Page 13: About This Guide

    Screens and windows pictured in this guide are samples and can differ from actual screens. Documentation Set The documentation set for the ET1 provides information for specific user needs, and includes: • ET1 Quick Start Guide - describes how to get the ET1 up and running.

  • Page 14: Notational Conventions

    Topics covered in this guide are as follows: • Chapter 1, Getting Started provides information on getting the ET1 up and running for the first time. • Chapter 2, Accessories describes the available accessories and how to use them with the ET1.

  • Page 15: Related Documents

    Software type and version number Manufacturing label Motorola Solutions responds to calls by email, telephone or fax within the time limits set forth in support agreements. If your problem cannot be solved by Motorola Solutions Support, you may need to return your equipment for...

  • Page 16

    ET1 Enterprise Tablet Integrator Guide during shipment if the approved shipping container is not used. Shipping the units improperly can possibly void the warranty. If you purchased your Motorola Solutions business product from a Motorola business partner, contact that business partner for support.

  • Page 17: Introduction, Unpacking The Et, Getting Started

    Customer Support immediately. See Service Information on page xiii for contact information. Prior to using the ET1 for the first time, remove the protective shipping film that covers the scan window, display and camera window. Getting Started To start using the ET1 for the first time: •...

  • Page 18: Installing The Battery, Charging The Battery

    CAUTION 9-1. Charging the Main Battery Before using the ET1 for the first time, charge the main battery until the Battery Charge LED turns solid green (see Table 1-1 on page 1-3 for charge status indications). To charge the ET1, use a cable or a cradle with the appropriate power supply.

  • Page 19: Charging Temperature, Powering On The Et

    Connect the charging accessory to the appropriate power source. Insert the ET1 into a cradle or attach to a cable. The ET1 begins charging. The Battery Charge LED blinks yellow while charging, then turns solid green when fully charged. See Table 1-1 for charging indications.

  • Page 20: Powering Off The Et1, Powering Off The Et, Replacing The Battery, Resetting The Et

    Touch Battery Swap. The Scan LED lights red. Wait until the Scan LED turns off. Press thumb against the side of the ET1 and battery. Using the index and middle fingers, move the battery release latch toward thumb. Pull the battery out of the battery compartment.

  • Page 21: Soft Reset, Hard Reset

    Left Scan/Action, Right Scan/Action and Power buttons on the back of the ET1. Enterprise Reset An Enterprise Reset erases all data in the /cache and /data partitions and clears all ET1 settings, except those in the /enterprise partition.

  • Page 22: Factory Reset

    A Factory Reset erases all data in the /cache, /data and /enterprise partitions in internal storage and clears all ET1 device settings. A Factory Reset returns the ET1 to the last installed operating system image. To revert to a previous operating system version, re-install that operating system image. See System Update on page 8-7.

  • Page 23: Waking The Et1, Waking The Et

    Waking the ET1 The wake-up conditions define what actions wake up the ET1 after it has gone into suspend mode or has been placed in Battery Swap mode. The ET1 can go into suspend mode by either pressing the Power button or automatically by a time-out settings.

  • Page 24

    1 - 8 ET1 Enterprise Tablet Integrator Guide Wake Up Source Screen Figure 1-7 Touch the checkbox to enable or disable the wake up condition.

  • Page 25

    CHAPTER 2 ACCESSORIES Introduction This chapter provides set up information for the following ET1 accessories. ET1 Accessories Table 2-1 Accessory Part Number Description Cradles Single-slot USB Docking DC1000-1000U Charges the ET1 main battery and a spare battery. Cradle Synchronizes the ET1 with a host computer through a USB connection.

  • Page 26

    Provides power to the power supplies. Purchase separately. Miscellaneous Spare Battery BTRY-ET01EAB0E Replacement 4620 mAh battery. BTRY-ET01EAB0E-10 Replacement 4620 mAh battery (10-pack). Handstrap SG-ET0123245-01R Adjustable and 360-degree rotatable handstrap that mounts on the back of the ET1 and provides secure option for holding the device.

  • Page 27

    2 - 3 Single-slot USB Docking Cradle The Single-slot USB Docking Cradle: • Provides 12 VDC power for operating and charging the ET1. • Synchronizes information between the ET1 and a host computer. See Chapter 3, USB Communication for information on connecting the ET1 and a host computer.

  • Page 28

    Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the ET1. To accomplish this, for small periods of time, the ET1 or accessory alternately enables and disables battery charging to keep the battery at acceptable temperatures. The ET1 indicates when charging is disabled due to abnormal temperatures via the Battery Charge LED.

  • Page 29

    The Four-slot Charge Only Docking Cradle: • Provides 12 VDC power for operating the ET1. • Simultaneously charges up to four ET1s. Setup Four-slot Charge Only Docking Cradle Power Connection Figure 2-3 Insert the ET1 into a slot to begin charging.

  • Page 30

    Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the ET1. To accomplish this, for small periods of time, the ET1 alternately enables and disables battery charging to keep the battery at acceptable temperatures. The ET1 indicates when charging is disabled due to abnormal temperatures via the Battery Charge LED.

  • Page 31

    Accessories 2 - 7 Four-slot Battery Charger The Four-slot Battery Charger charges up to four ET1 spare batteries. Setup AC Line Cord Power Supply DC Line Cord Four-slot Spare Battery Charger Figure 2-5 To charge spare batteries: Setup the charger as shown above.

  • Page 32

    2 - 8 ET1 Enterprise Tablet Integrator Guide Charge LEDs Charging Batteries Figure 2-6 Charge batteries in temperatures from 0°C to 40°C (32°F to 104°F). Charging is intelligently controlled by the charger in order to ensure safe operation and optimize long-term battery life. To accomplish this, for small periods of time, the charger alternately enables and disables battery charging to keep the battery at acceptable temperatures.

  • Page 33

    To charge the battery: Setup the cable as shown above. Connect the cable cup to the bottom of the ET1. Align the ends of the cup with the alignment marks on the ET1. The Battery Charge LED indicates the status of the battery charging in the ET1. See Table 1-1 on page 1-3 charging status indications.

  • Page 34

    2 - 10 ET1 Enterprise Tablet Integrator Guide 2-way Charge Cable CAUTION Do not connect two Four-slot Charge Only cradles to one 2-way Charge Cable. The 2-way Charge cable provides 12 VDC power to: • one Four-slot Charge Only Docking cradle and one Four-slot Spare battery Charger.

  • Page 35

    Accessories 2 - 11 Handstrap To install the handstrap: ® Using a Torx T8 screwdriver, remove two screws securing the expansion module. Remove Expansion Module Screws Figure 2-10 Remove the expansion module. Remove the filler plate.

  • Page 36

    Align the rectangle opening on the handstrap with the tab in the module mounting area. Place the handstrap onto the back of the ET1. Align handstrap Figure 2-12 Align the two screw holes on the handstrap with the screws holes on the back of the ET1.

  • Page 37

    Accessories 2 - 13 Align Screw Holes Figure 2-13 Using a Torx T8 screwdriver, secure the bottom of the handstrap to the ET1 using two screws provided with the handstrap. Replace the expansion module into the mounting area. Do not replace filler plate.

  • Page 38: Bluetooth Connection, Cs3070 Bluetooth Scanner, Hid Pairing

    NOTE Wedge data appears within whichever application has input focus. Pairing the CS3070 with the ET1 requires entering a pairing PIN on both the CS3070 and the ET1. To enter the PIN on the CS3070, use the Numeric Bar Codes for PIN Entry on page 2-16.

  • Page 39

    Tap on any text input field. Scan a bar code. The bar code contents appear in the text entry field. To disconnect from the scanner (remain paired): On the ET1, touch > Settings > Wireless & networks > Bluetooth. Touch Bluetooth settings.

  • Page 40: Numeric Bar Codes For Pin Entry, Configuring The Scanner

    2 - 16 ET1 Enterprise Tablet Integrator Guide Numeric Bar Codes for PIN Entry Use the following bar codes for pin entry for Bluetooth connection. Enter Configuring the Scanner Refer to the CS3000 Series Scanner Product Reference Guide for detailed information for configuring the...

  • Page 41: Replacement Bezel

    Press the Power button until the Device options menu appears. Touch Power off. Remove the battery. Place the ET1 face down on a table. Remove two plugs covering the screws. Using a Torx T6 screwdriver, remove four Torx screws. Remove Screws Figure 2-16 Using tool, pry bezel from top of ET1.

  • Page 42

    2 - 18 ET1 Enterprise Tablet Integrator Guide Lift Bezel Figure 2-17 Align new bezel. Place top down. Align Bezel Figure 2-18...

  • Page 43

    Accessories 2 - 19 Push edge to snap into place. Press Bezel Down Figure 2-19 Using a Torx T6 screwdriver, secure bezel to ET1 using four screws. Secure Bezel Using Screws Figure 2-20 Replace two screw plugs. Replace the battery.

  • Page 44

    2 - 20 ET1 Enterprise Tablet Integrator Guide...

  • Page 45: Connecting To A Host Computer Via Usb

    CHAPTER 3 USB COMMUNICATION Connecting to a Host Computer via USB Connect the ET1 to a host computer using the USB/Charge Cable or Single-slot USB Docking Cradle to transfer files between the ET1 and the host computer. CAUTION When connecting the ET1 to a host computer and mounting its microSD card, follow the host computer’s instructions for connecting and disconnecting USB devices, to avoid damaging or...

  • Page 46: Disconnect From The Host Computer

    3 - 2 ET1 Enterprise Tablet Integrator Guide Touch OK. When the ET1 is connected as USB storage, the screen indicates USB storage is in use. The ET1’s microSD card is mounted as a drive on the host computer. USB Storage In Use Window Figure 3-2 On the host computer, open a file explorer application.

  • Page 47: Basic Scanning

    Basic Scanning To capture bar code data: Ensure that an application is open on the ET1 and a text field is in focus (text cursor in text field). Aim the rear-facing camera at a bar code. Press and hold either Scan/Action button. By default, a preview window appears on the screen. The Decode LED lights red to indicate that data capture is in process.

  • Page 48

    • Launcher - disables scanning when the Launcher is in foreground. • Hidden profiles (not shown to the ET1): • RD Client - provides support for MSP. • MSP Agent - provides support for MSP.

  • Page 49: Input Plug-ins, Process Plug-ins, Output Plug-ins, Profiles Screen

    • Process Plug-ins. Input Plug-ins An Input Plug-in supports an input device, such as a bar code scanner contained in, or attached to the ET1. DataWedge contains base plug-ins for these input devices. Bar Code Scanner Input Plug-in The Bar Code Scanner Input Plug-in is responsible for reading data from the integrated bar code scanner and supports different types of bar code readers including laser, imager and internal camera.

  • Page 50

    4 - 4 ET1 Enterprise Tablet Integrator Guide DataWedge Profiles Screen Figure 4-2 Profile names are color coded. Enabled profiles are white and disabled profiles are gray. To configure a profile touch the profile name. Profile Context Menu Touch and hold a profile to open a context menu that allows additional actions to be performed on the selected profile.

  • Page 51: Disabling Datawedge, Create A New Profile

    DataWedge Configuration 4 - 5 DataWedge Options Menu Figure 4-4 The menu provides options to create a new profiles, access to general DataWedge settings and DataWedge version information. Disabling DataWedge To disable DataWedge: Touch Launcher > DataWedge. Touch > Settings. Touch DataWedge enabled.

  • Page 52: Configuring A Profile

    4 - 6 ET1 Enterprise Tablet Integrator Guide Configuring a Profile To configure the Profile0 or a user-created profile, touch the profile name. The Profile configuration screen appears. Profile Configuration Screen Figure 4-6 • Profile enabled - Enables or disables this profile. A check in the checkbox indicates that the profile is enabled.

  • Page 53: Barcode Input

    DataWedge Configuration 4 - 7 Select Application Menu Figure 4-8 Select the desired application from the list. The Select activity menu appears. Select Activity Menu Figure 4-9 Selecting the activity adds that application/activity combination to the associated application list for that profile.

  • Page 54

    4 - 8 ET1 Enterprise Tablet Integrator Guide Decoders Configures which bar code decoders are enabled or disabled. For best performance disable all unnecessary decoders. Touch Decoders. The Barcode input screen appears. A check in the checkbox indicates that the decoder is enabled.

  • Page 55

    DataWedge Configuration 4 - 9 • UPCE0 • Report Check Digit - The check digit is the last character of the symbol used to verify the integrity of the data. Enables or disables this option. A check in the checkbox indicates that the option is enabled (default - disabled).

  • Page 56

    4 - 10 ET1 Enterprise Tablet Integrator Guide • Security Level 3 - If Security Level 2 is selected and misdecodes still occur, select this security level. Be advised, selecting this option is an extreme measure against mis-decoding severely out of spec bar codes.

  • Page 57

    DataWedge Configuration 4 - 11 • Composite AB • UCC Link Mode • Link Flag ignored - 1D component is transmitted regardless of whether a 2D component is detected. • Always Linked - 1D and the 2D components are transmitted. If 2D is not present, the 1D component is not transmitted.

  • Page 58

    4 - 12 ET1 Enterprise Tablet Integrator Guide • Code93 • Length1 - Use to set decode lengths (default - 0). See Decode Lengths on page 4-13 for more information. • Length2 - Use to set decode lengths (default - 55). See...

  • Page 59

    DataWedge Configuration 4 - 13 selections. Disable this to transmit UPCE1 decoded data as UPCE1 data, without conversion (default - disabled). Decode Lengths The allowable decode lengths are specified by options Length1 and Length2 as follows: • Variable length: Decode symbols containing any number of characters. •...

  • Page 60: Reader Params

    4 - 14 ET1 Enterprise Tablet Integrator Guide number of times set via UPC/EAN Supplemental Redundancy before transmitting its data to confirm that there is no supplemental. • Supplemental Smart - Enables smart supplementals. In this mode the decoder returns the decoded value of the main block right away if it does not belong to one of the following supplemental types: 378, 379, 977, 978, 979, 414, 419, 434 or 439.

  • Page 61: Scan Params, Keystroke Output

    DataWedge Configuration 4 - 15 • Picklist - This parameter allows the imager to decode only the bar code that is directly under the cross-hair/reticle (+) part of the pattern. This feature is most useful in applications where multiple bar codes may appear in the field of view during a decode session and only one of them is targeted for decode.

  • Page 62: Intent Output

    4 - 16 ET1 Enterprise Tablet Integrator Guide • Send TAB key - Set to append a tab character to the end of the processed data. A check in the checkbox indicates that the plug-in is enabled (default - disabled).

  • Page 63: Datawedge Settings

    DataWedge Configuration 4 - 17 <intent-filter . . . > <action android:name=”android.intent.action.DEFAULT” /> <category android:name=”android.intent.category.MAIN” /> . . . </intent-filter> In the Intent output plug-in configuration, the Intent action would be: android.intent.category.DEFAULT and the Intent category would be: android.intent.category.MAIN The Intent delivery option allows the method by which the intent is delivered to be specified. The delivery mechanisms are Send via startActivity, Send via startService or Broadcast intent.

  • Page 64: Import Configuration File, Export Configuration File, Restore Datawedge

    To export a DataWedge configuration file: Touch Launcher > DataWedge. Touch > Settings > Export. Touch SD Card and then Export. The configuration file (datawedge.db) is saved to the root of the ET1 microSD card. Restore DataWedge To restore DataWedge to the factory default configuration: Touch Launcher >...

  • Page 65: Configuration File Management

    666. Programming Notes Remap Keys By default, the ET1 is configured to use the Left and Right Scan/Action keys to initiate scanning. To use the P1, P2 or P3 keys as a scan trigger: Touch >...

  • Page 66: Overriding Trigger Key In An Application

    DataWedge profile that caters to any specific scanning needs, associated to your Application's Activity pertaining to scanning. Disable DataWedge on ET1 and Mass Deploy To disable DataWedge and deploy onto multiple ET1 devices: Touch Launcher > DataWedge > > Settings.

  • Page 67: Configure A Wi-fi Network

    > Settings > Wireless & networks. Touch Wi-Fi to turn Wi-Fi on. Touch Wi-Fi settings. The ET1 searches for WLANs in the area and lists them under Wi-Fi networks. Scroll through the list and select the desired WLAN network. The Security dialog box appears.

  • Page 68

    5 - 2 ET1 Enterprise Tablet Integrator Guide WLAN Network Security Dialog Boxes Figure 5-1 • If the network security is Open, touch Connect. • If the network security is WEP or WPA/WPSA2 PSK, enter the required password and then touch Connect.

  • Page 69: Manually Adding A Wi-fi Network, Advanced Wi-fi Settings

    Advanced Wi-Fi Settings NOTE Advanced Wi-Fi settings are for the device not for a specific wireless network. If using the ET1 in one location that requires a proxy and then moving to another location that does not require a proxy, the proxy must be disabled.

  • Page 70: Proxy Configuration

    NOTE Proxy settings are for the device not for a specific wireless network. If using the ET1 in one location that requires a proxy and then moving to another location that does not require a proxy, the proxy must be disabled.

  • Page 71: Remove A Wi-fi Network, Static Ip Address

    By default, the ET1 is configured to use Dynamic Host Configuration Protocol (DHCP) to assign an Internet protocol (IP) address when connecting to a wireless network. To configure the ET1 to connect to a network using a static IP address: Touch >...

  • Page 72

    5 - 6 ET1 Enterprise Tablet Integrator Guide...

  • Page 73: Required Software, On-device Application Installation

    Motorola Solutions provides a suite of utilities that allow an administrator to manage the following features: • Multi-user Login - The Multi-user Login feature allows an administrator to set up the ET1 to be used by multiple users. The users have access to specific applications and features depending upon the user settings.

  • Page 74: Multi-user/applock Configuration, Enterprise Administrator Application, Create Users

    On the host computer launch the Enterprise Administrator application. Enterprise Administrator Window Figure 6-1 Create Users Each person that uses the ET1 has to have a user name and password. To create a user: Click + above the Users list box.

  • Page 75: Add Packages

    Click OK. Repeat steps 1 through 7 for each additional user. Add Packages Create a list of applications (packages) installed on the ET1 that are available for use by all the users. Click + next to Packages. Determining Applications Installed on...

  • Page 76: Create Groups, Save Data, Export Files

    At any time, the administrator can save the current data. The applications creates two files in the <user>\_APP_DATA folder: database and passwd. Export Files In order to use the features on the ET1, export the required files and then copy them to the ET1. The following files are created by the Enterprise Administrator application: •...

  • Page 77: Import User List, Import Group List, Edit A User, Delete A User, Edit A Group

    Click OK. Copy all the files to the root of the microSD card. See Chapter 3, USB Communication for information on copying files to the ET1. Import User List To import a user list: Click File > Import > User List.

  • Page 78: Delete A Group, Edit A Package, Delete A Package, Multiuser Administrator

    6 - 6 ET1 Enterprise Tablet Integrator Guide Click Edit Group. Make changes and then click OK. Delete a Group To delete a group: Select a group in the Groups list. Click -. Click Yes. The group name is removed from the list.

  • Page 79: Disable The Multi-user Feature, Capturing A Log File

    Touch Launcher > MultiUser Administrator. Touch Disable MultiUser. The Multi-user feature is disabled immediately. The ET1 suspends. When resumed, the single-user home screen appears. Capturing a Log File The log file and its backup contain a history of login and logout. To capture a log file: Touch Launcher >...

  • Page 80: Applock Administrator, Manual File Configuration, Groups File

    Touch Install Groups and White Lists to read the contents of the Groups and White List files from the root of the microSD card and push its contents into the AppLock framework. Once the Group and White List files are imported and the feature enabled, the next time a user logs in, the ET1 will be configured accordingly.

  • Page 81: White List File

    Administrator Utilities 6 - 9 The text file contains one line for each group. Each line is formatted as follows: <groupname>:<user1>,<user2>,…<userN> where: = the name for a group. This is also the name of the White List file for this group. This <groupname>...

  • Page 82: Determining Applications Installed On The Et, Secure Storage, Installing A Key

    A default White List for use when the MultiUser feature is disabled takes the same form as above but in named default. Determining Applications Installed on the ET1 To determine the names of applications installed on the ET1 for use with the Enterprise Administrator application: Connect the ET1 to the host computer.

  • Page 83: Viewing Key List, Delete A Key

    <Key Name> <Key value in Hex string> Example: key2 1234567890abcdef1234567890abcdef1234567890abcdef1234567890abcdef The key value must be a 64 hexadecimal character string. Touch OK. The key is imported into the ET1. The message successfully installed the key appears on the screen. Viewing Key List To view a list of keys installed on the ET1: Touch Key List.

  • Page 84

    NOTE If a key is deleted then all the volumes created using that key are un-mounted. The same key is required to re-mount the volume. Volumes Creates an encrypted file system (volume) on the ET1. The user must have Administrative privileges to create a volume. Create Volume Using EFS File To create a volume using a efs file: Create an efs file.

  • Page 85

    Administrator Utilities 6 - 13 Enter Parameter To Create Volume Dialog Box Figure 6-10 Touch OK. The message Successfully Created the Volume appears briefly. If the size of the volume is very large, a progress bar displays. Mount Volume To mount an encrypted volume: Touch Mount Volume.

  • Page 86: Create Efs File, Off-line Extraction Tool

    6 - 14 ET1 Enterprise Tablet Integrator Guide Delete Volume To delete an encrypted volume: If the encrypted volume is mounted, unmount it. Touch Delete Volume. Touch sdcard to list the unmounted volumes on the microSD card or internal to list the unmounted volumes on internal storage.

  • Page 87

    If the volume is mounted on the desktop, then that volume can be provisioned with files for deployment. Unmounted volumes can then be copied to the ET1 and subsequently mounted using the Secure Storage Administrator by providing the encryption key used.

  • Page 88

    6 - 16 ET1 Enterprise Tablet Integrator Guide Mounting an Image To mount an image: From the Main Menu, select item 2. The following appears: Please enter EFS file name (e.g. /tmp/1.efsmot): <volume name> Please enter encryption key (64-bytes hex value): Please enter mount path (e.g.

  • Page 89: Location Settings

    Check Use wireless networks checkbox to use information from Wi-Fi networks to determine approximate location. Check Use GPS satellites to use the ET1’s global positioning system (GPS) receiver to obtain approximate location position. GPS accuracy is dependent upon a clear view of the sky and other factors.

  • Page 90: Screen Unlock Settings, Single User Mode

    Locking feature functions differently in Single-user versus Multiple-user mode. Single User Mode When locked, a pattern, PIN or password is required to unlock the ET1. Press the Power button to lock the screen. The ET1 also locks after a pre-defined time-out.

  • Page 91

    Enter a PIN (between 4 and 16 characters) then touch OK. Re-enter PIN and then touch OK. Touch Use tactile feedback to enable vibration when the user enters PIN. Touch Home. The next time the ET1 goes into suspend mode a PIN is required upon waking. PIN Screen Figure 7-3...

  • Page 92

    Touch Use visible pattern to show the pattern when user draws pattern. Touch Use tactile feedback to enable vibration when the user enters password. Touch Home. Next time the ET1 goes into suspend mode a Pattern is required upon waking.

  • Page 93: Multiple User Mode, Button Remapping

    Chapter 6, Administrator Utilities. Passwords To set the ET1 to briefly show password characters as the user types, set this option. Touch > Settings > Location & security. Touch Visible passwords. A check in the checkbox indicates that the option is enabled.

  • Page 94: Exporting A Configuration File, Importing A Configuration File

    Copy the configuration file from a host computer to the root of the microSD card. See Chapter 3, USB Communication. On the ET1, use FileXP to move the file from the root of the microSD card to the folder: /enterprise/device/settings/keypad. Touch Settings > Applications > Button Remap Program.

  • Page 95: Creating Remap File, Accounts & Sync Settings, Language Usage

    Settings 7 - 7 Creating Remap File The administrator can create an xml configuration file and import it into any ET1 device. Use any text editor to create the xml file. <Button_Remap> <Left_Trigger>BUTTON_L1</Left_Trigger> <Right_Trigger>BUTTON_R1</Right_Trigger> <P1>VOLUME_DOWN</P1> <P2>VOLUME_UP</P2> <P3>SEARCH</P3> </Button_Remap> Replace the button event strings. See...

  • Page 96: Keyboard Settings, About Device

    • Up time - Displays the time that the ET1 has been running since being turned on. • Battery use - Displays a list of the applications and operating system components used since the ET1 was charged last. • Legal information - Opens a screen to view legal information about the software included on the ET1.

  • Page 97: Secure Certificates

    If downloading the certificates from a web site, set a password for the credential storage. ET1 supports X.509 certificates saved in PKCS#12 key store files with a .p12 extension (if key store has a .pfx or other extension, change to .p12).

  • Page 98: Credential Storage Settings, Development Tools

    Touch Location & security. • Use secure credentials - Check to allow applications to access the ET1’s encrypted store of secure certificates and related passwords and other credentials. If a password is not for the credential storage, the setting is disabled.

  • Page 99: Development Settings, Adb Usb Setup, Windows Xp And Windows 7 Installation

    Stay awake - Check to prevent the screen from dimming and locking when the ET1 is connected to a charger or to a USB device that provides power. Don’t use this setting with a static image on the ET1 for long periods of time, or the screen may be marked with that image.

  • Page 100: Linux Installation, Application Installation

    On the Linux terminal, execute command: adb devices from <sdk>/platform-tools/ directory. If connected, the ET1 displays in the device list. Application Installation After an application is developed, install the application onto the ET1 using one of the following methods: • USB connection, see Chapter 3, USB Communication.

  • Page 101: Installation Using Usb Connection, Using Android Debug Bridge

    Installation Using USB Connection To install an application using a USB connection: Connect the USB/Charge cable to the ET1 and the host computer or place the ET1 in the Single-slot USB Docking cradle to the host computer. See Chapter 2, Accessories for setup information.

  • Page 102: Uninstall An Application, Mobility Services Platform

    Unmount the microSD card on the host computer. Mobility Services Platform The MSP 3 Client Software is a set of software components that come pre-installed on the ET1. The MSP 3 Client software consists of the following components: The Rapid Deployment application provides support for MSP 3 Staging functionality, provides support for the MSP 3 Legacy Staging process, and provides support for backward-compatible legacy MSP 2.x Legacy...

  • Page 103: System Update

    Touch Uninstall. Touch OK to confirm. System Update System Update packages can contain either partial or complete updates for the operating system. Motorola Solutions distributes the System Update packages on the Support Central web site. Download the system update package: •...

  • Page 104: Random Access Memory

    Touch P1 or P2 to navigate to the apply update from /sdcard option. Touch P3. Touch P1 or P2 to navigate to the ET1N0GxxRUxxxxxxx.zip file. Touch P3. The System Update installs and then the ET1 resets. Storage The ET1 contains four types of file storage: •...

  • Page 105: External Storage

    Unmount SD card - Unmounts the installed microSD card from the ET1 so that it can be safely removed when the ET1 is on. This setting is dimmed if there is no microSD card installed, if it has already been unmounted or if it has been mounted on a host computer.

  • Page 106: Internal Storage

    The operating system protects all data and applications from power-related loss. Because the operating system mounts the entire file system in persistent storage, ET1 devices provide a reliable storage platform even in the absence of battery power. Internal Storage provides application developers with a reliable storage system available through the standard ext4 file system.

  • Page 107: Managing Applications, Get Details About An Application

    • Touch the Downloaded tab to view the applications downloaded to the ET1. • Touch the All tab to view all the applications installed on the ET1, including factory installed applications and downloaded applications. • Touch the On SD card tab to view the applications installed on the microSD card. A check mark indicates that the application is installed on the microSD card.

  • Page 108: Stopping An Application, Changing Application Location

    Applications have different kinds of information and controls, but commonly include: • Touch Force stop to stop an application. • Touch Uninstall to remove the application and all of its data and settings from the ET1. See Uninstall an Application on page 8-6 information about uninstalling applications.

  • Page 109: Managing Downloads

    The Storage section of the application’s details screen shows details about the memory used by the application. If the application can be moved, the Move button is active. Touch Move to USB storage or Move to SD card to move the bulk of the application from the ET1’s internal storage.

  • Page 110

    8 - 14 ET1 Enterprise Tablet Integrator Guide...

  • Page 111: Maintaining The Et, Battery Safety Guidelines

    Do not store or use the ET1 in any location that is dusty, damp, or wet. • Use a soft lens cloth to clean the ET1. If the surface of the ET1 screen becomes soiled, clean it with a soft cloth moistened with a diluted window-cleaning solution.

  • Page 112: Approved Cleanser Active Ingredients

    Motorola Enterprise Mobility support. • To enable authentication of an approved battery, as required by IEEE1725 clause 10.2.1, all batteries will carry a Motorola hologram. Do not fit any battery without checking it has the Motorola authentication hologram. •...

  • Page 113: Harmful Ingredients, Cleaning Instructions, Special Cleaning Notes, Materials Required, Cleaning The Et

    9 - 3 Harmful Ingredients The following chemicals are known to damage the plastics on the ET1 and should not come in contact with the device: ammonia solutions, compounds of amines or ammonia; acetone; ketones; ethers; aromatic and chlorinated hydrocarbons; acqueous or alcoholic alkaline solutions; ethanolamine; toluene; trichloroethylene;...

  • Page 114: Cleaning Cradle Connectors, Cleaning Frequency

    ET1 Enterprise Tablet Integrator Guide Rub the cotton portion of the cotton tipped applicator back-and-forth across the connector on the bottom of the ET1. Do not leave any cotton residue on the connector. Repeat at least three times. Use the cotton tipped applicator dipped in alcohol to remove any grease and dirt near the connector area.

  • Page 115: Troubleshooting

    Power button, the discharged. ET1 does not turn on. ET1 not responding. Perform a hard reset. See Resetting the ET1 on page 2-15. When the user presses Battery charge level Re-charge or replace the battery. the Power button the is very low.

  • Page 116

    Refer to the ET1 Enterprise Tablet Integrator Guide bar code type. for DataWedge configuration. ET1 is not If the ET1 does not beep on a good decode, set the programmed to application to generate a beep on good decode. generate a beep.

  • Page 117

    Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty battery. The ET1 is not fully Remove and re-insert the ET1 into the cradle, ensuring it is seated in the cradle. firmly seated. Extreme battery Battery does not charge if ambient temperature is below 0°C temperature.

  • Page 118: Four-slot Spare Battery Charger

    Battery is faulty. Verify that other batteries charge properly. If so, replace the faulty battery. The ET1 is not fully Detach and re-attach the power cable to the ET1, ensuring it is attached to power. firmly connected. During data Cable was Re-attach the cable and retransmit.

  • Page 119: Specifications

    APPENDIX A TECHNICAL SPECIFICATIONS ET1 Technical Specifications The following table summarizes the ET1’s intended operating environment and technical hardware specifications. ET1 Technical Specifications Table A-1 Item Description Physical Characteristics Dimensions Height: 130.5 mm (5.14 in.) Width: 224 mm (8.82 in.) Depth: 25 mm (0.98 in.)

  • Page 120

    A - 2 ET1 Enterprise Tablet Integrator Guide ET1 Technical Specifications (Continued) Table A-1 Item Description Performance Characteristics Texas Instruments OMAP 4430 @ 1 GHz Operating System Android 2.3 Memory 1 GB RAM/4 GB Flash plus 4 GB microSD card. User accessible microSD card slot supports up to 32 GB.

  • Page 121

    Specifications A - 3 ET1 Technical Specifications (Continued) Table A-1 Item Description Data Capture Rear-facing Camera For bar code scanning and image capture: 8MP auto-focus camera with user controllable LED flash, illumination and aiming; captures 1D and 2D bar codes, photographs, video, signatures and documents.

  • Page 122

    A - 4 ET1 Enterprise Tablet Integrator Guide External Connector Pin-Outs (Continued) Table A-2 Signal Name Description USB_D- USB Data Negative. High speed USB (480 Mbps) in both host and client modes. Also supports Full speed USB (12 Mbps) in both host and client modes.

  • Page 123

    Specifications A - 5 HDMI Connector Pin-outs (Continued) Table A-3 Signal Name Description TMDS Data 0- Transition Minimized Differential Signaling Data Channel 0 negative TMDS Clock+ Transition Minimized Differential Signaling Clock positive TMDS Clock Shield Transition Minimized Differential Signaling Clock Shield Ground TMDS Clock- Transition Minimized Differential Signaling Clock negative Consumer Electronics Control...

  • Page 124

    A - 6 ET1 Enterprise Tablet Integrator Guide Headset Connector Pin 3 Pin 1 Pin 2 Headset Connector Figure A-3 Headset Connector Pin-outs Table A-4 Signal Name Description Mic + Microphone positive Speaker + Speaker positive (32 ohm, 0.05 W, mono)

  • Page 125

    Specifications A - 7 Expansion Module Connector Pin-outs (Continued) Table A-5 Signal Name Description USB_VBUS Host mode output = +5.0 VDC, 500 mA max. continuous or peak NOTE: Client Mode is not supported via this USB interface. Ground System ground. System Power Switched unregulated system power output.

  • Page 126

    A - 8 ET1 Enterprise Tablet Integrator Guide ET1 Accessory Specifications Single-slot USB Docking Cradle Single-slot USB Docking Cradle Technical Specifications Table A-6 Feature Description Dimensions Height: 61.62 mm (2.43 in.) Width:151.9 mm (5.98 in.) Depth: 138.39 mm (5.45 in.) Weight 620 g (21.87 oz)

  • Page 127

    Specifications A - 9 Four Slot Battery Charger Technical Specifications (Continued) Table A-7 Feature Description Humidity 5% to 95% non-condensing Drop 76.2 cm (30.0 in.) drops to vinyl tiled concrete at room temperature Electrostatic Discharge (ESD) +/- 15 kV air +/- 8 kV contact Four-slot Charge Only Docking Cradle Four-slot Charge Only Docking Cradle Technical Specifications...

  • Page 128

    A - 10 ET1 Enterprise Tablet Integrator Guide 2-way Charge Cable 2-way Charge Cable Technical Specifications Table A-10 Feature Description Length 105.0 cm (41.3 in.) Operating Temperature -10°C to 50°C (14°F to 122°F) Storage Temperature -40°C to 70°C (-40°F to 158°F)

  • Page 129

    APPENDIX B KEYPAD REMAP STRINGS Introduction Table B-1 lists the available key event name for use when remapping key. Remap Key Event/Scancodes Table B-1 Key Event Scancode SOFT_LEFT SOFT_RIGHT HOME BACK CALL ENDCALL STAR227...

  • Page 130

    B - 2 ET1 Enterprise Tablet Integrator Guide Remap Key Event/Scancodes (Continued) Table B-1 Key Event Scancode POUND DPAD_UP DPAD_DOWN DPAD_LEFT DPAD_RIGHT DPAD_CENTER VOLUME_UP VOLUME_DOWN CAMERA...

  • Page 131

    Specifications B - 3 Remap Key Event/Scancodes (Continued) Table B-1 Key Event Scancode COMMA PERIOD ALT_LEFT ALT_RIGHT SHIFT_LEFT SHIFT_RIGHT SPACE EXPLORER ENVELOPE ENTER GRAVE MINUS EQUALS LEFT_BRACKET RIGHT_BRACKET BACKSLASH SEMICOLON APOSTROPHE SLASH PLUS MENU SEARCH PAGE_UP PAGE_DOWN...

  • Page 132

    B - 4 ET1 Enterprise Tablet Integrator Guide Remap Key Event/Scancodes (Continued) Table B-1 Key Event Scancode PICTSYMBOLS SWITCH_CHARSET BUTTON_A BUTTON_B BUTTON_C BUTTON_X BUTTON_Y BUTTON_Z BUTTON_L1 BUTTON_R1 BUTTON_L2 BUTTON_R2 BUTTON_THUMBL BUTTON_THUMBR BUTTON_START BUTTON_SELECT BUTTON_MODE...

  • Page 133

    GLOSSARY AFH. Adaptive Frequency Hopping API. (Application Programming Interface) An interface by means of which one software component communicates with or controls another. Usually used to refer to services provided by one software component to another, usually via software interrupts or function calls Bar Code.

  • Page 134

    Glossary - 2 ET1 Enterprise Tablet Integrator Guide CDRH. Center for Devices and Radiological Health. A federal agency responsible for regulating laser product safety. This agency specifies various laser operation classes based on power output during operation. CDRH Class 1. This is the lowest power CDRH laser classification. This class is considered intrinsically safe, even if all laser output were directed into the eye's pupil.

  • Page 135

    Glossary - 3 EAN. European Article Number. This European/International version of the UPC provides its own coding format and symbology standards. Element dimensions are specified metrically. EAN is used primarily in retail. ESD. Electro-Static Discharge EAP. Short for Extensible Authentication Protocol, EAP is defined in RFC 3748 and is a general authentication protocol commonly used with PPP and wireless networks.

  • Page 136

    IEEE Address. See MAC Address. Input/Output Ports. I/O ports are primarily dedicated to passing information into or out of the terminal’s memory. ET1 mobile computers include USB ports. Interleaved 2 of 5. A binary bar code symbology representing character pairs in groups of five bars and five interleaved spaces.

  • Page 137

    Glossary - 5 LED Indicator. A semiconductor diode (LED - Light Emitting Diode) used as an indicator, often in digital displays. The semiconductor uses applied voltage to produce light of a certain frequency determined by the semiconductor's particular chemical composition. Light Emitting Diode.

  • Page 138

    Glossary - 6 ET1 Enterprise Tablet Integrator Guide RAM. Random Access Memory. Data in RAM can be accessed in random order, and quickly written and read. RF. Radio Frequency. ROM. Read-Only Memory. Data stored in ROM cannot be changed or removed.

  • Page 139

    Glossary - 7 Symbol Length. Length of symbol measured from the beginning of the quiet zone (margin) adjacent to the start character to the end of the quiet zone (margin) adjacent to a stop character. Symbology. The structural rules and conventions for representing data within a particular bar code type (e.g. UPC/EAN, Code 39, PDF417, etc.).

  • Page 140

    Glossary - 8 ET1 Enterprise Tablet Integrator Guide...

  • Page 141

    INDEX Numerics battery chargers four-slot ....... . 2-7 2-way charge cable ..... . 2-2, 2-10 battery charging .

  • Page 142

    ....... 2-1 powering on ET1 ......1-3 profiles .

  • Page 143

    ....... . . 9-8 ET1 ........9-5 four-slot spare battery charger .

  • Page 144

    Index - 4 ET1 Enterprise Tablet Integrator Guide...

  • Page 146

    MOTOROLA, MOTO, MOTOROLA SOLUTIONS and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC and are used under license. All other trademarks are the property of their respective owners. © 2011 Motorola Solutions, Inc. All Rights Reserved.

Comments to this Manuals

Symbols: 0
Latest comments:
