- Page 1 Gigabit Ethernet SFP Media Converter Signamax™ ™ ™ ™ Connectivity Systems Gigabit Ethernet SFP Media Converter Model - 065-1195SFP 065-1195SFPI User’s Guide...
-
Page 2: Quick Start Guide
Gigabit Ethernet SFP Media Converter Quick Start Guide This quick start guide describes how to install and use the Gigabit Ethernet SFP media converter. The converter introduced here provides a one channel media conversion solution. Physical Description Product Overview This Gigabit Ethernet SFP media converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to the receptacle on the rear panel of the Gigabit Ethernet media converter, and then attach the plug into a standard AC outlet with a voltage range from 100 to 240V AC. -
Page 3: Functional Description
Gigabit Ethernet SFP Media Converter The Port Status LEDs LEDs State Indication Power Steady Power on No power LNKC Steady TX port: A valid network connection is established. LNKC stands for LINK/Copper No connection LNKF Steady FX port: A valid network connection is established. LNKF stands for LINK/Fiber No connection FDX/COL... -
Page 4: Fcc Statement
Gigabit Ethernet SFP Media Converter FCC Statement The FCC (Federal Communications Commission) restricts the amount of radio frequency emission and radiation coming from computer equipment. The equipment introduced in this manual has been tested and found to comply with the limits for a Class A digital device pursuant to Part 15 of the FCC rules. -
Page 5: Trademarks
Gigabit Ethernet SFP Media Converter Trademarks Product names mentioned in this manual may be trademarks or registered trademarks of those products. All trademarks or brand names mentioned are properties of their respective companies. -
Page 6: Preface
Gigabit Ethernet SFP Media Converter Preface This manual describes how to install and use the 065-1195SFP Gigabit Ethernet SFP Media Converter. The Converter introduced here provides a one channel media conversion solution: This media converter supports a 1000BaseT to 1000Base connection (multimode or singlemode fiber, in a variety of light spectra and span lengths) with a Link Fault Signaling function. -
Page 7: Table Of Contents
Gigabit Ethernet SFP Media Converter Table of Contents Quick Start Guide .............2 Physical Description ............2 Functional Description ............3 FCC Statement ............4 Trademarks ...............5 Preface ...............6 Table of Contents ............7 Introduction ..............8 Product Overview............8 Product Features .............8 Packing List ..............9 One-Channel Media Converter ......10 Physical Ports .............. -
Page 8: Introduction
Full wire-speed forwarding rate. Front panel status LEDs. Used as a standalone device or with the Signamax 065-1185 rack mount chassis. Hot-swappable when used with the Signamax 065-1185 rack mount chassis. A connection to the TX port must be made before making a connection to the fiber port, so that a link condition will be sensed on the fiber port whenever the media converter detects a link condition on the TX port. -
Page 9: Packing List
Gigabit Ethernet SFP Media Converter Packing List When you unpack this product’s package, you will find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to your authorized reseller. The Media Converter User’s Manual AC to DC Power Adaptor... -
Page 10: One-Channel Media Converter

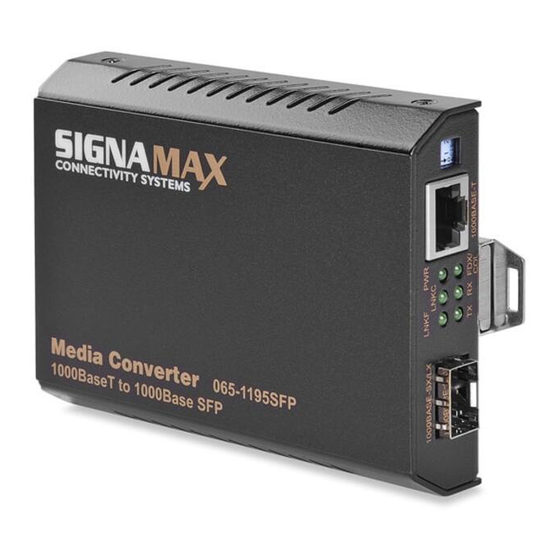

Gigabit Ethernet SFP Media Converter One-Channel Media Converter Physical Ports 065-1195SFP -- 1000BaseT to 1000Base SFP Media Converter This converter provides one TX port and one Gigabit SFP socket. The Gigabit SFP socket provides the option of using multimode, singlemode, or WDM singlemode fiber with the appropriate SFP module. -
Page 11: Installation
Attach the plug into a standard AC outlet with a voltage range from 100 to 240 VAC. Installing in a Chassis The 065-1195SFP Converter is designed to fit into any of the expansion slots on a Signamax 065-1185 rack mount chassis. -
Page 12: Specifications
14° F ~ 158° F (-10° C ~ 70° C) Humidity 5 ~ 95%, non-condensing Emissions FCC part 15 Class A, CE Mark Class A Please consult our website at www.signamax.com for product information and specifications of currently-available Signamax SFP modules. -
Page 13: Contact Information
Gigabit Ethernet SFP Media Converter Contact Information SIGNAMAX™ CONNECTIVITY SYSTEMS An AESP Company 16295 N.W. 13h Avenue Miami, Florida 33169, U.S.A. Phone: 305-944-7710 Fax: 305-949-4483 Sales: 800-446-2377 Tech. Support: 800-446-2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com...
