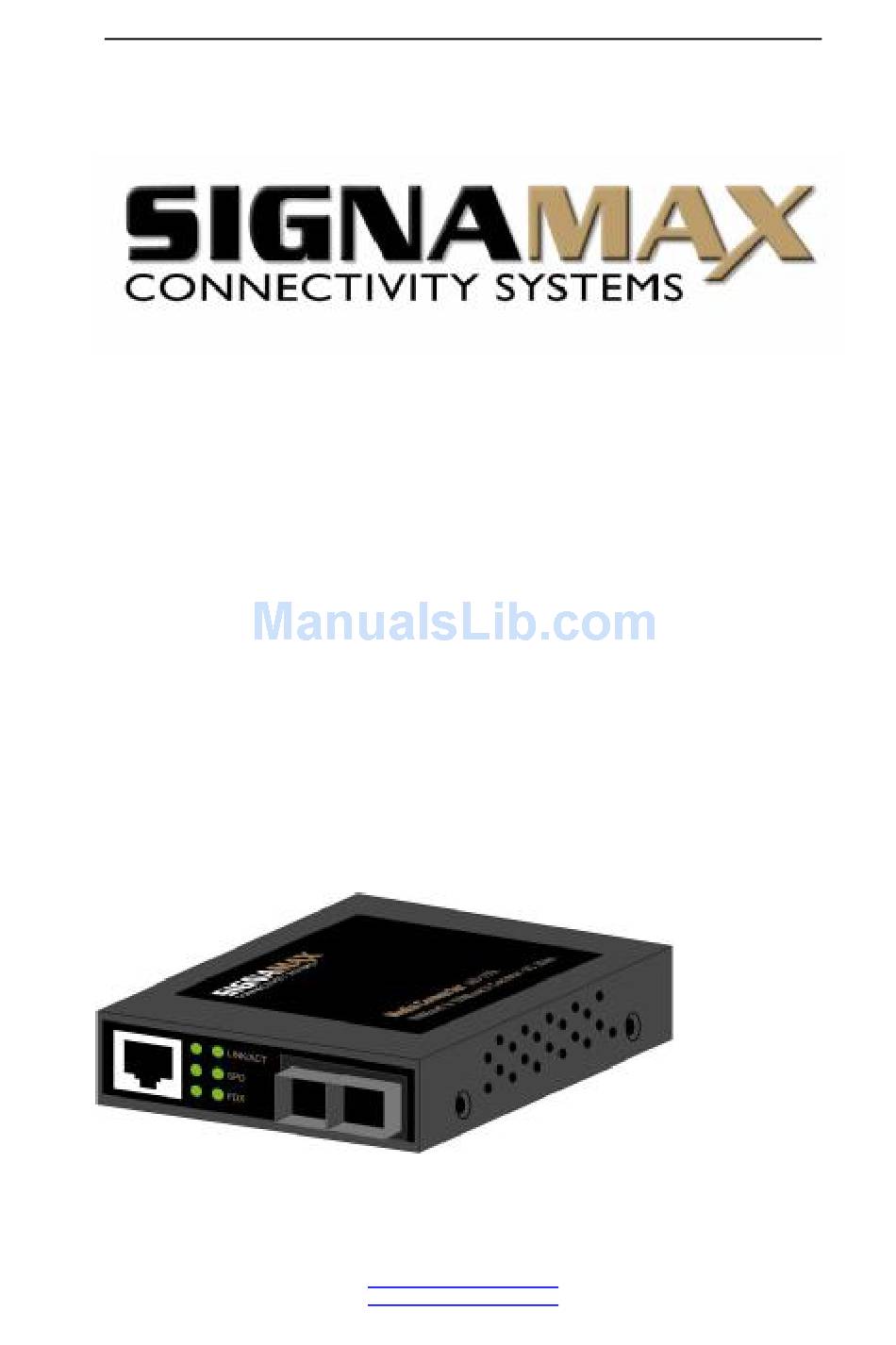

- Page 1 Signamax Connectivity System ______________________________________________ 065-1176 Signamax™ Connectivity Systems Fast Ethernet media converters 10Base-T/100Base-TX to 100Base-FX series Model:065-1176 User’s Manual WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM...
- Page 2 Signamax Connectivity System ______________________________________________ 065-1176 FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
-
Page 3: Table Of Contents
Signamax Connectivity System ______________________________________________ 065-1176 Table of contents Chapter 1........... Introduction......... Product Features........6 Technical Specifications........7 Chapter 2........... Package contents........8 Model information........9 Chapter 3........... Installation........11 WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM... - Page 4 Signamax Connectivity System ______________________________________________ 065-1176 The LED indicators........12 Chapter 4........... Application........12 WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM...
-
Page 5: Introduction
Signamax Connectivity System ______________________________________________ 065-1176 Chapter 1. Introduction The Fast Ethernet media converters series are designed to bridge a 100Base-TX signal to a 100Base-FX signal. It’s used to extend the connection distance between two Fast Ethernet Twisted-pair devices via fiber cable transparently with no performance degradation. -
Page 6: Product Features
Signamax Connectivity System ______________________________________________ 065-1176 Product Features Complies with IEEE802.3u 10Base-T/100Base-TX, 100Base-FX Standards. TP port support Auto-MDIX & Auto-negotiation. TP port up to 100 meters for shielded/unshielded twisted pair cable. Supports Full-duplex & Half-duplex operation on TP base on Auto-negotiation. -
Page 7: Technical Specifications
Signamax Connectivity System ______________________________________________ 065-1176 Technical Specifications Standards : EEE 802.3u 10Base-T/100Base-TX and 100Base-FX Media support : 10BASE-T EIA/TIA 568 Cat3, 4, 5, 5e or 6 UTP/STP : 100Base-TX EIA/TIA 568 Cat5, 5e or 6 UTP/STP : 100Base-FX Multi-mode 50/125 µm & 62.5/125 µm : 100Base-FX Single-mode 9/125 µm SMF... - Page 8 Signamax Connectivity System ______________________________________________ 065-1176 Chapter 2. Package contents Before you start to install the Switch, please verify your package that contains the following items: One media converter One Power Adapter One User’s Manual WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM...
-
Page 9: Model Information
Signamax Connectivity System ______________________________________________ 065-1176 Model information 100Base-FX Multi-Mode 1310nm wavelength Model Description 100Base-FX fiber port (SC type MMF) Up to 415 meters (1360 ft.) for MMF 50/125um or 62.5/125um optic cables on Multimode SC half-duplex operation. Connector Up to 2, 5km (1.24, 3.1 mi.) for MMF 50/125um or 62.5/125um optic cables on... - Page 10 Signamax Connectivity System ______________________________________________ 065-1176 100Base-FX Single-Mode 1310nm/1550nm wavelength Model Description 100Base-FX fiber port (SC type SMF). Single mode SC Up to 10, 20, 40 or 60km for SMF connector 9/125um optic cables on full-duplex operation. 100Base-FX fiber port (LC type SMF).
-
Page 11: Installation
Signamax Connectivity System ______________________________________________ 065-1176 Chapter 3. Installation I. DC input & external power adapter The external power supply adapter specification: AC input range from 90VAC to 260VAC. AC frequency range from 47Hz to 63Hz, TUV, CE, UL Safety. Power adapter DC output is +5VDC 1.5A The device DC input +5VDC 1A. - Page 12 Signamax Connectivity System ______________________________________________ 065-1176 The LED indicators Color Status Description Power Yellow Power on Green Full-duplex Half-duplex Flashing Partial collision occurs 10/100M Green Port is on the 100M status Port is on the 10M status LINK/ACT. Yellow 10/100Mbps port...
