SignaMax 065-1196A Manual

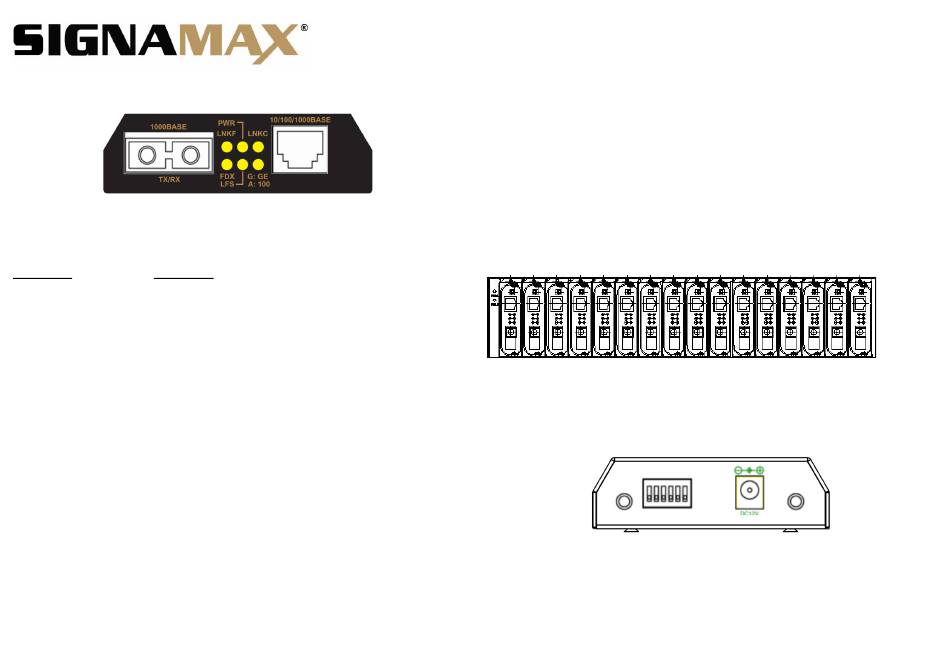

Physical Description
10/100/1000TX to 1000BaseSX or 1000BaseLX Media Converter
NOTE: Chassis is ordered separately.
Applicable models:
1000BaseSX 1000BaseLX
065-1196A 065-1196ALX
065-1196AED 065-1196ALXED
Assembly and Setup
Unpacking: Open the carton and unpack the items. Your package should include a 065-1196A
Media Converter and this Quick Install Guide. If items are missing or damaged, notify your
sales representative.
Place the equipment where it will not be subjected to extreme temperatures, humidity, or
electromagnetic interference. Specifically, the site you select should meet the following
requirements:
•
The ambient temperature should be between 32 and 113 degrees Fahrenheit (0 to 45
degrees Celsius).
•
The relative humidity should be less than 95 percent, non-condensing.
•
Surrounding electrical devices should not exceed the electromagnetic field (RFC)
standards for IEC 801-3, Level 2 (3V/M) field strength.
•
Make sure that the equipment receives adequate ventilation. Do not block the
ventilation holes of the equipment.
• The power outlet should be within 1.8 meters of the product.
QSG-065-1196_A
The media converter can also be installed in a compatible chassis. If installing into a chassis,
then no additional power connection is required.
• Unscrew the carrier from the desired expansion slot on the chassis.
• Fit the converter onto the carrier.
•
When the converter is completely seated onto the carrier, insert the carrier to the
guide rails of the expansion slot.
•
Carefully slide in the carrier until it is fully and firmly fit the chassis.
•
Fasten the carrier to the chassis with the screws.
NOTE: Never insert any converter into the chassis directly without using the supplied carriers.
The carriers allow secure and consistent placement of the converters into the chassis'
backplane and prevent damage.
Connect Power
This Converter is a plug-and-play device. Connect the supplied AC to DC power adaptor to
the receptacle on the rear panel of the converter, and then attach the plug into a standard
AC outlet.
Ensure to connect the power cord to a socket outlet with earthing connection if supplied by
Class I power supply or power source.
Gigabit Ethernet Media Converter
1
