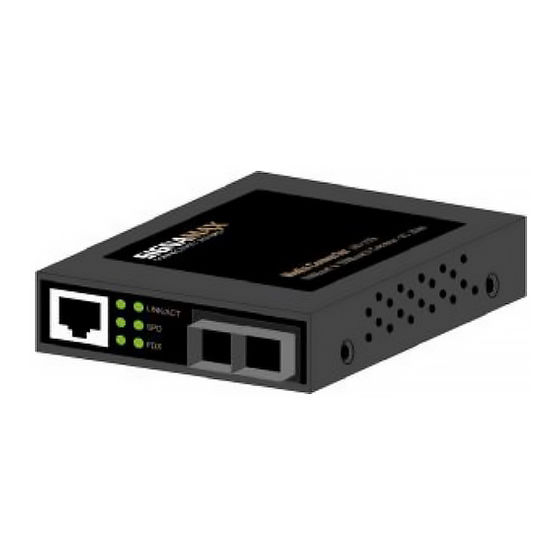

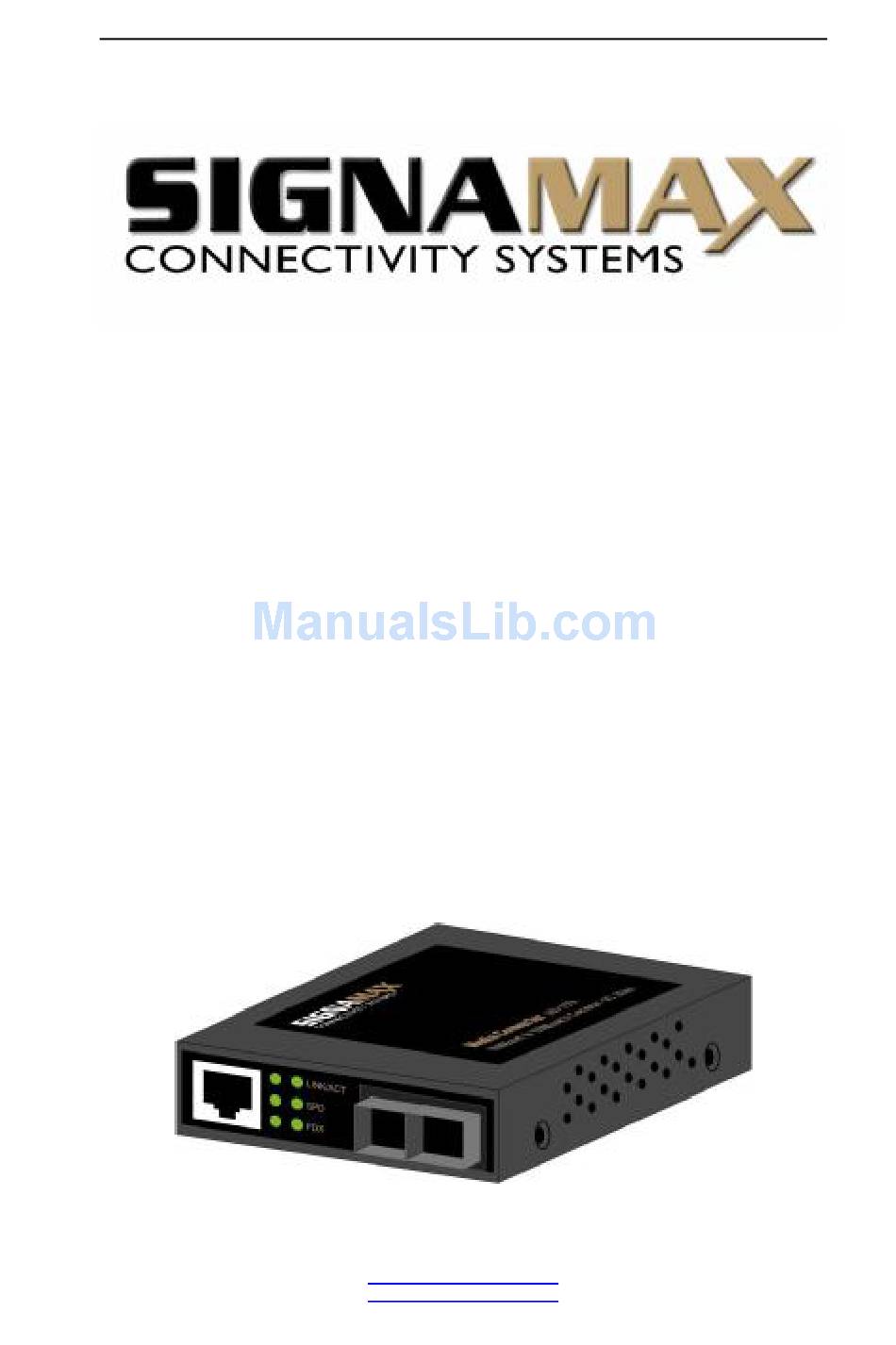

- Page 1 Signamax Connectivity System ______________________________________________ 065-1197A Signamax™ Connectivity Systems Gigabit Ethernet media converters 1000Base-T to 1000Base-SX/LX series Model:065-1197A User’s Manual WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM...
-
Page 2: Fcc Warning
Signamax Connectivity System ______________________________________________ 065-1197A FCC Warning This device has been tested and found to comply with limits for a Class A digital device, pursuant to Part 2 and Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 3: Table Of Contents
Signamax Connectivity System ______________________________________________ 065-1197A Table of contents Chapter 1.--------------------------------------------------------4 Introduction------------------------------------------------4 Product Features-----------------------------------------5 Technical Specifications---------------------------------6 Chapter 2.--------------------------------------------------------7 Package contents----------------------------------------7 Model information----------------------------------------Chyba! Záložka není definována. Chapter 3.--------------------------------------------------------8 Installation--------------------------------------------------8 The LED indicators---------------------------------------8 Chapter 4.--------------------------------------------------------9 Application-------------------------------------------------9 WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM... -
Page 4: Introduction
Signamax Connectivity System ______________________________________________ 065-1197A Chapter 1. Introduction The Gigabit Ethernet media converters series are designed to bridge a 1000Base-T signal to a 1000Base-SX/LX signal. It’s used to extend the connection distance between two Gigabit Ethernet Twisted-pair devices via fiber cable transparently with no performance degradation. -
Page 5: Product Features
Signamax Connectivity System ______________________________________________ 065-1197A Product Features Complies with IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-SX/LX Standards. TP port support Auto-MDIX & Auto-negotiation. Up to 100 meters for 1000Base-T Cat5, 5e or 6 twisted pair cable. Supports Full-duplex operation. (Gigabit Std) Switch base design support flow control capability. -
Page 6: Technical Specifications
Signamax Connectivity System ______________________________________________ 065-1197A Technical Specifications Standards : IEEE 802.3ab 1000Base-T : IEEE 802.3z 1000Base-SX/LX Media support : 1000BASE-T Cat5, 5e or 6 UTP/STP :1000Base-SX Multi-mode 50/125 µm & 62.5/125 µm MMF : 1000Base-LX Single-mode 9/125 µm Distances support : Twisted pair STPà100 meters / 328ft. -
Page 7: Package Contents
Signamax Connectivity System ______________________________________________ 065-1197A Chapter 2. Package contents Before you start to install the converter, please verify your package that contains the following items: One media converter One Power Adapter One User’s Manual WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM... -
Page 8: Záložka Není Definována. Chapter
Signamax Connectivity System ______________________________________________ 065-1197A Chapter 3. Installation I. DC input & external power adapter The external power supply adapter specification: AC input range from 90VAC to 260VAC. AC frequency range from 47Hz to 63Hz, TUV, CE, UL Safety. Power adapter DC output is +5VDC 1.4A The device DC input +5VDC 1.4A. -
Page 9: Application
Signamax Connectivity System ______________________________________________ 065-1197A Chapter 4. Application Multi-Mode Fiber (MMF) application Single-Mode Fiber application WWW.SIGNAMAX-US.COM WWW.SIGNAMAX-CE.COM...
