Summary of Contents for SignaMax Gigabit SFP Converter 065-1896SFPTB
- Page 1 Signamax™ ™ ™ ™ Connectivity Systems Gigabit SFP Converter Series Model - 065-1896SFPTB ’ S E R...
- Page 3 Signamax™ ™ ™ ™ Connectivity Systems Gigabit SFP Converter Series User’s Guide...
-
Page 4: Fcc Warning
Product names mentioned in this manual may be trademarks or registered trademarks of those products and are hereby acknowledged. Ethernet is a trademark of Xerox Corporation. Microsoft Windows is a trademark of Microsoft Corporation. Signamax™ is a trademark of Advanced Electronic Support Products, Inc. User’s Manual... -
Page 5: Preface
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Preface Our hardened media converter provides an affordable solution for rugged environments, transportation road-side cabinets, industrial shop floors, multi tenant dwellings or Fiber To The Home (FTTH) applications. Capable of operating at temperature extremes of -40° F to +167° F (-40° C to +75°... -
Page 6: Table Of Contents
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Table of Contents FCC Warning ................1 CE Mark Warning ................ 1 Trademarks..................1 Preface.................... 2 Table of Contents ................3 Introduction ................... 4 Product Overview ................ 4 Product Features ................. 4 One-Channel Media Converter............ -
Page 7: Introduction
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Introduction The media converter provides one channel for media conversion between 10/100/1000BaseT/TX and a Gigabit SFP socket port with the Link Fault Signaling (LFS) function. This hardened fiber optic solution is perfectly suitable for industrial applications or rugged environmental conditions. - Page 8 Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter The Gigabit SFP socket with SFP fiber transceiver should be set to (forced full duplex mode, forced full duplex mode) (auto mode, auto mode) when 10/100/1000BaseT/TX and Gigabit SFP socket one- channel media converters are connected to each other via the Gigabit SFP socket with a SFP fiber transceiver.
- Page 9 Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Packing List When you open this product package, you will find the items listed below. Please inspect the contents, and report any apparent damage or missing items immediately to our authorized reseller.
-
Page 10: One-Channel Media Converter
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter One-Channel Media Converter Ports This Converter provides one copper port and one Gigabit SFP socket port. The Gigabit SFP socket port is available for options of Multi-mode, Single-mode, or WDM Single-mode SFP fiber transceiver using LC connector. -

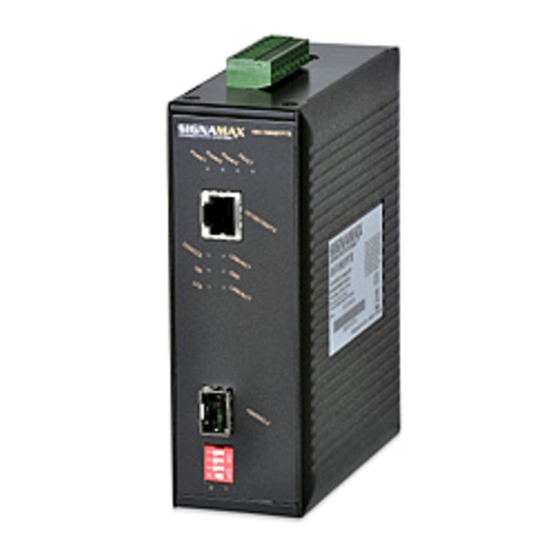

Page 11: Front Panel & Leds
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Front Panel & LEDs The LED indicators give you instant feedback on converter status: LEDs State Indication FAULT Steady Power redundant system or ports function abnormally Power redundant system and ports function normally... -
Page 12: Installation
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 13: Din Rail Mounting
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter DIN Rail Mounting Fix the DIN rail attachment plate to the back panel of the • media converter. Installation: Place the media converter on the DIN rail • from above using the slot. Push the front of the media converter toward the mounting surface until it audibly snaps into place. -
Page 14: Connecting To Power
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Connecting to Power Redundant DC Terminal Block Power Inputs and 12VDC DC Jack: Redundant DC Terminal Block Power Inputs (preferred connection) There are two pairs of power inputs can be used to power up this device. - Page 15 Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Step 1: Connect the DC power cord to the plug-able terminal block on the media converter, and then plug it into a standard DC outlet. Step 2: Disconnect the power cord if you want to shut down the media converter.
- Page 16 Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter power source to this terminal to prevent a short circuit to your power supply. User’s Manual...
-
Page 17: Specifications
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Specifications Applicable Standards IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3z 1000BaseSX/LX Fixed Ports 1 copper port, 1 Gigabit SFP socket port Speed 10BaseT 10/20Mbps for half/full-duplex 100BaseTX... - Page 18 Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter EN61000-6-2: EN61000-4-2 (ESD Standard) EN61000-4-3 (Radiated RFI Standards) EN61000-4-4 (Burst Standards) EN61000-4-5 (Surge Standards) EN61000-4-6 (Induced RFI Standards) EN61000-4-8 (Magnetic Field Standards) Environmental Test IEC60068-2-6 Fc (Vibration Resistance) Compliance IEC60068-2-27 Ea (Shock)
-
Page 19: Contact Information
Signamax™ ™ ™ ™ Gigabit SFP Hardened Media Converter Contact Information SIGNAMAX™ CONNECTIVITY SYSTEMS An AESP Company 16295 N.W. 13h Avenue Miami, Florida 33169, U.S.A. Phone: 305-944-7710 Fax: 305-652-8489 Sales: 800-446-2377 Tech. Support: 800-446- 2377, ext. 201 Http://www.signamax.com E-mail: info@signamax.com...
