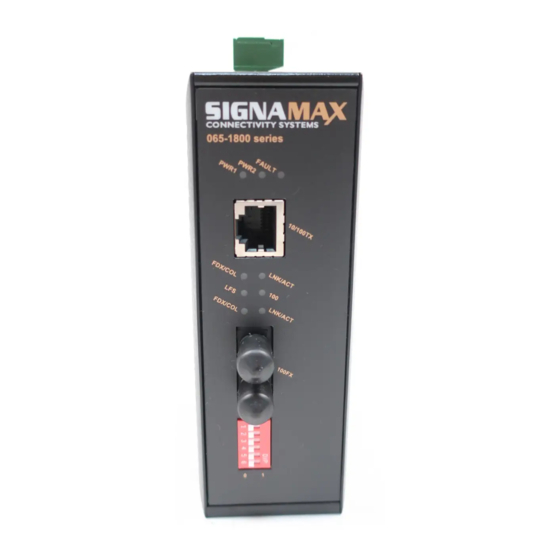

065-1800 series Hardened Media Converter
Preface
This hardened media converter provides an affordable solution for rugged
and outdoor environments, transportation roadside cabinets, industrial
floor operations, multi-tenant dwellings, or Fiber To The Home (FTTH)
applications.
It is the media converter of choice for harsh environments
with space constraints. It is capable of operating at temperature extremes
of -40° F to 165° F (-40° C to +74° C).
Plug-and-Play Solution:
The Signamax 065-1800 series hardened media converter is a plug-and-
play media converter with a compact case size. There is no complicated
software set up required.
This manual describes how to install and use the Signamax 065-1800 series
hardened media converters with the Link Fault Signaling (LFS) function.
The converters introduced here provide one channel of media conversion
between 10/100BaseT/TX and 100BaseFX connections.
These converters fully comply with IEEE802.3 10BaseT and IEEE802.3u
100BaseTX/FX standards.
In this manual, you will find:
Product overview
Features of the 065-1800 series media converters
Illustrative LED functions
Installation instructions
Specifications
User's Manual
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SignaMax 065-1800 series
Summary of Contents for SignaMax 065-1800 series
-
Page 1: Preface
There is no complicated software set up required. This manual describes how to install and use the Signamax 065-1800 series hardened media converters with the Link Fault Signaling (LFS) function. The converters introduced here provide one channel of media conversion between 10/100BaseT/TX and 100BaseFX connections. -
Page 2: Table Of Contents
065-1800 series Hardened Media Converter Table of Contents ..................1 REFACE ..............2 ABLE OF ONTENTS ................3 NTRODUCTION ..............3 RODUCT VERVIEW ..............3 RODUCT EATURES ................4 ACKING ..........5 HANNEL EDIA ONVERTER ..................5 ORTS ................ 5 ETTINGS &... -
Page 3: Introduction
065-1800 series Hardened Media Converter Introduction The media converter provides one channel for media conversion between 10/100BaseTX and 100BaseFX with the link-fault-pass-through function. This hardened fiber optic solution is perfectly fitted in the industrial applications or rugged environment. Product Overview... -
Page 4: Packing List
The Signamax 065-1800 series Hardened Media Converter User’s Manual on CD-ROM Signamax 065-1800 series Hardened Media Converter Quick Installation Guide AC to DC Power Adaptor and Power Cable (optional 12 V DC powered models only) User’s Manual... -
Page 5: One-Channel Media Converter
065-1800 series Hardened Media Converter One-Channel Media Converter Ports The Signamax 065-1800 series Hardened Media Converter provides one TX port and one FX port. For the FX port, it provides options of: Multimode fiber using SC, ST, VF-45, MT-RJ or LC connector, or... -
Page 6: Front Panel & Leds
065-1800 series Hardened Media Converter Toggle Pin 6 to position 0 to disable the link down alarm. Reconnect the converter to the power supply. The new setting(s) will then take effect. Front Panel & LEDs LED Indicators The LED indicators give you instant feedback on the status of the converter:... - Page 7 065-1800 series Hardened Media Converter Link Fault Signaling (LFS) Connect the FX ports of two Media Converters, A and B, through the fiber optic cable. Link Fault of the FX port: A Link Fault condition will be sensed on the TX port whenever the media converter detects a Link Fault condition on the FX port.
-
Page 8: Installation
065-1800 series Hardened Media Converter Installation This chapter gives step-by-step installation instructions for the Converter. Selecting a Site for the Equipment As with any electric device, you should place the equipment where it will not be subjected to extreme temperatures, humidity, or electromagnetic interference. -
Page 9: Connecting To Power
065-1800 series Hardened Media Converter Connecting to Power Redundant 1.5 A 24 V DC power inputs or 3 A 12 V DC Jack: 3 A 12 V DC Jack Step 1: Connect the supplied AC to DC power adapter to the receptacle on the topside of the media converter. - Page 10 065-1800 series Hardened Media Converter Alarms for Power and Port Failure Step 1: There are two pins on the terminal block are used for power failure detection. It provides the normally closed output when the power source is active. Use this as a dry contact application to send a signal for power failure detection.
-
Page 11: Specifications
065-1800 series Hardened Media Converter Specifications Applicable Standards IEEE 802.3 10BaseT IEEE 802.3u 100BaseTX & 100BaseFX Fixed Ports 1 TX port, 1 FX port Speed 10BaseT 10/20Mbps for half/full-duplex 100BaseTX/FX 100/200Mbps for half/full-duplex Switching Method Store-and-Forward Forwarding rate 14,880/148,800pps for 10/100 Mbps... - Page 12 065-1800 series Hardened Media Converter Environmental Test Compliance: Vibration Resistance (IEC 60068-2-6) Shock (IEC 60068-2-27) Free Fall (IEC 60068-2-32) NEMA TS1/2 Environmental requirements for traffic control equipment User’s Manual...
