Verify 2U, 25 2.5" drive DAE status

1. Verify that the status of the 2U DAE Power LED located on the front is solid blue and the DAE
Fault/Status is off as shown in
2. If any fault LEDs are on, or if any power LEDs are flashing, contact your authorized service
provider.
0
2U, 25 Disk-array enclosure

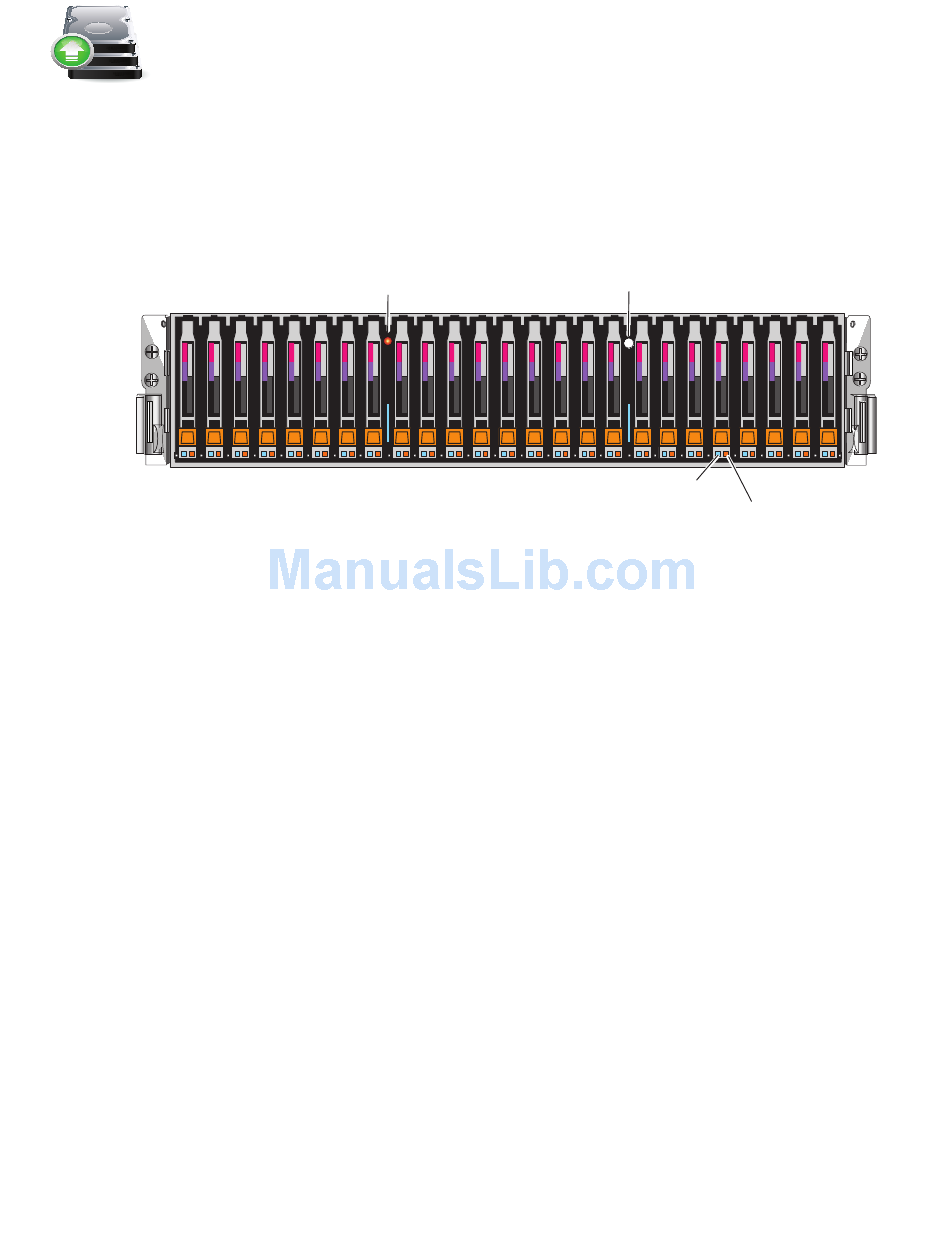

Figure 23 2U, 25 2.5" drive DAE LEDs
EMC VNX5300 Block Installation Guide
34
Figure 23.
DAE Fault/Status DAE Power
Disk drive
Disk drive
Power
Fault/Status
Front
24
VNX-000233
