Installing the DPE rails

The DPE rails should be installed immediately above the SPS rails.
Note: All rails must be aligned level front to back and with the companion rail, left to right.
1. Insert the adjustable 3U rail slide and seat both alignment pins into the rear channel of your
cabinet.
2. Extend the rail and align the front of the rails as shown in
3. Insert two retention screws in the middle two holes in the front.
4. Insert two retention screws in the back of each rail.
L

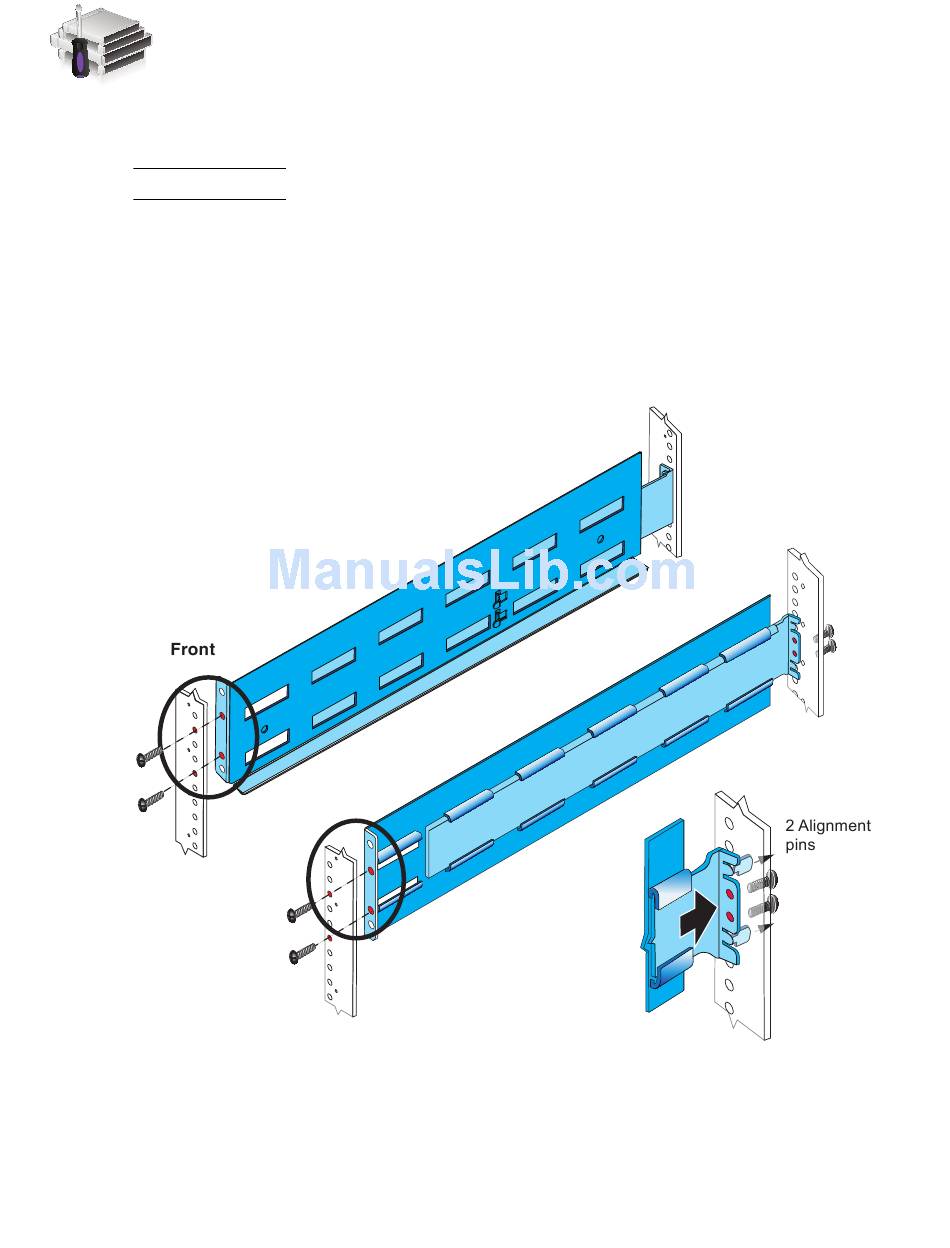

Figure 2 Installing the DPE rails
EMC VNX5300 Block Installation Guide
12
R
Figure 2.
Rear
Detail
2 Screws
VNX-000215
