Power up DAEs

Ensure that the cabinet circuit breakers are still on and the PDUs are powered on. The DAE power
cables should be connected directly to the PDUs as shown in
the DAEs will begin to power up.
1. Connect or verify that the DAE 1 power cable is connected to PDU A.
2. Connect or verify that the DAE 1 power cable is connected to PDU B.
3. Connect or verify that the DAE 2 power cable is connected to PDU A.
4. Connect or verify that the DAE 2 power cable is connected to PDU B.
PDU B
D
B

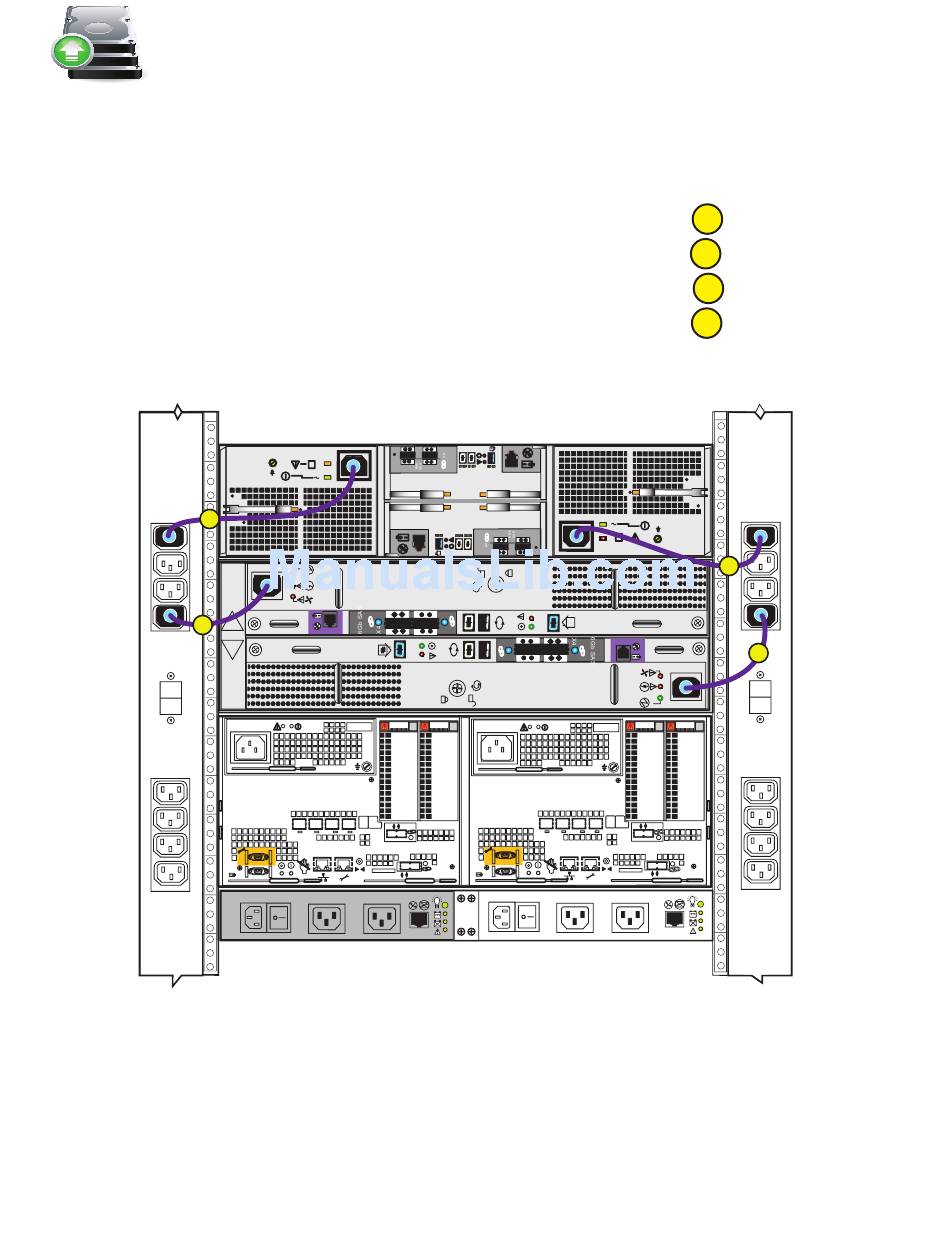

Figure 21 Powering up the DAEs
EMC VNX5300 Block Installation Guide
32
Disk-array enclosures optional
B
A
8Gb 6Gb
fibre SAS
1
X4
4 5
2 3
Switch Power Power
SPS B Optional
Figure
#
# #
2 3 4 5
6Gb SAS
0 X4
Switch Power
SPS A
Rear
21. After they are connected,
A
B
C
D
PDU A
C
A
8Gb 6Gb
fibre SAS
1 X4
0 X4 6Gb SAS
Power
VNX-000173
