3. Label the cables:
a. Locate a pair of DAE cables and the sheet of labels.
b. Attach the cable labels by matching the icons on the connectors with the icons on the
labels as shown in
c. Continue for all the SAS cables for your system.

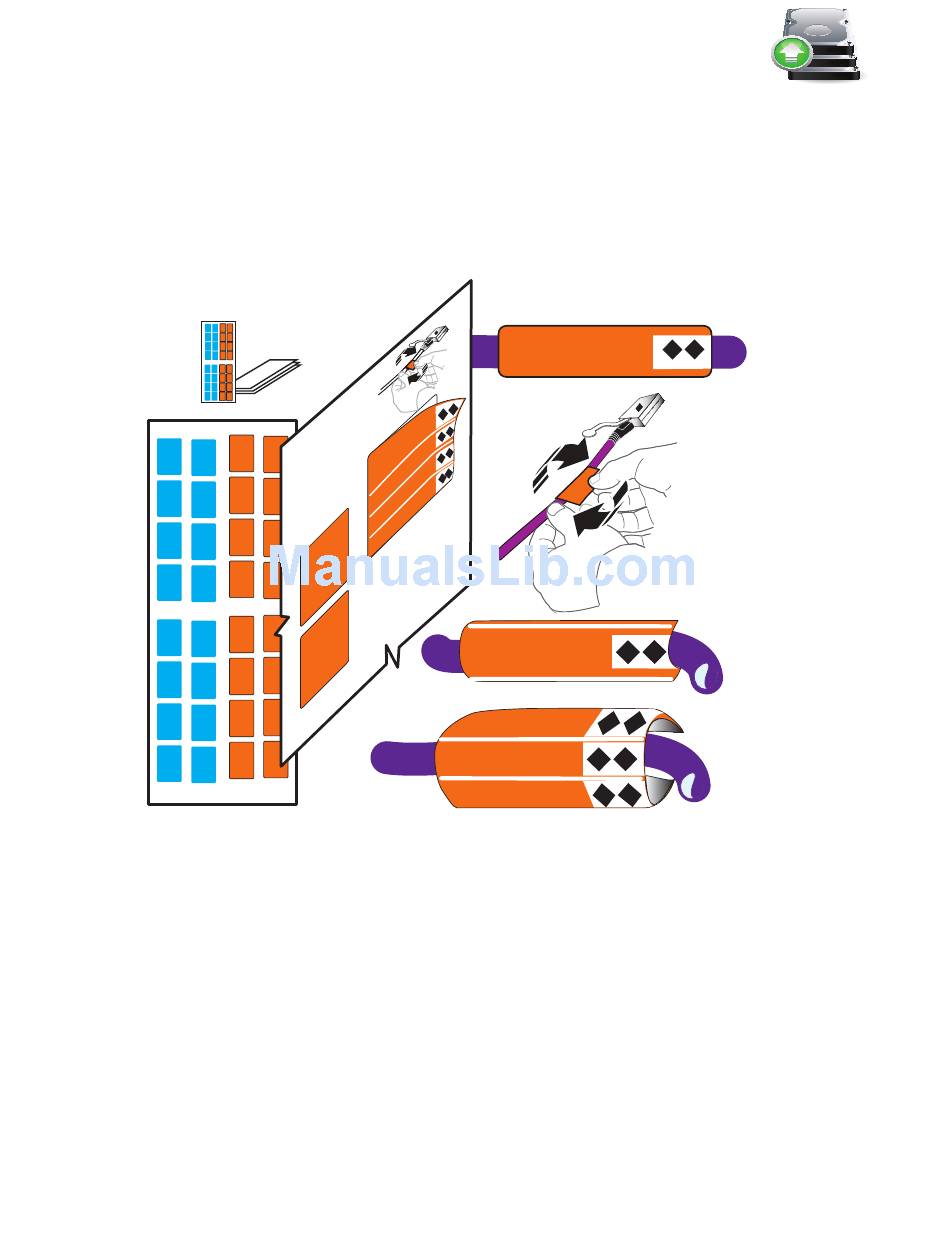

Figure 16 Attach labels to the SAS cables

Install DAE rails

1. Insert the adjustable rail slide and seat both alignment pins into the rear channel of your
cabinet.
2. Extend the rail and align the front of the rails as shown in
Figure 16 and Figure 19 on page
Labels
0
S
A
S 0
S
A
A
P
0
S S
S
A
A
0
P
S
S
S
A
A
P
S
S
A
P
S
30.
SP A SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
SP A SAS 0
Figure
VNX-000687
17.
Assembling DAEs 27
