2. Verify that the SP Power LEDs on SP A and SP B located at the rear of the DPE are solid green
and the SP Fault LED is off as shown in
Note: If any fault LEDs are on, or if any power LEDs remain flashing after approximately 15 minutes
of operation, contact your authorized service provider.
SP Power SP Fault
Figure 13 SP LEDs
IMPORTANT
Make sure the power-up is complete before you continue with the next task.
Figure 13.

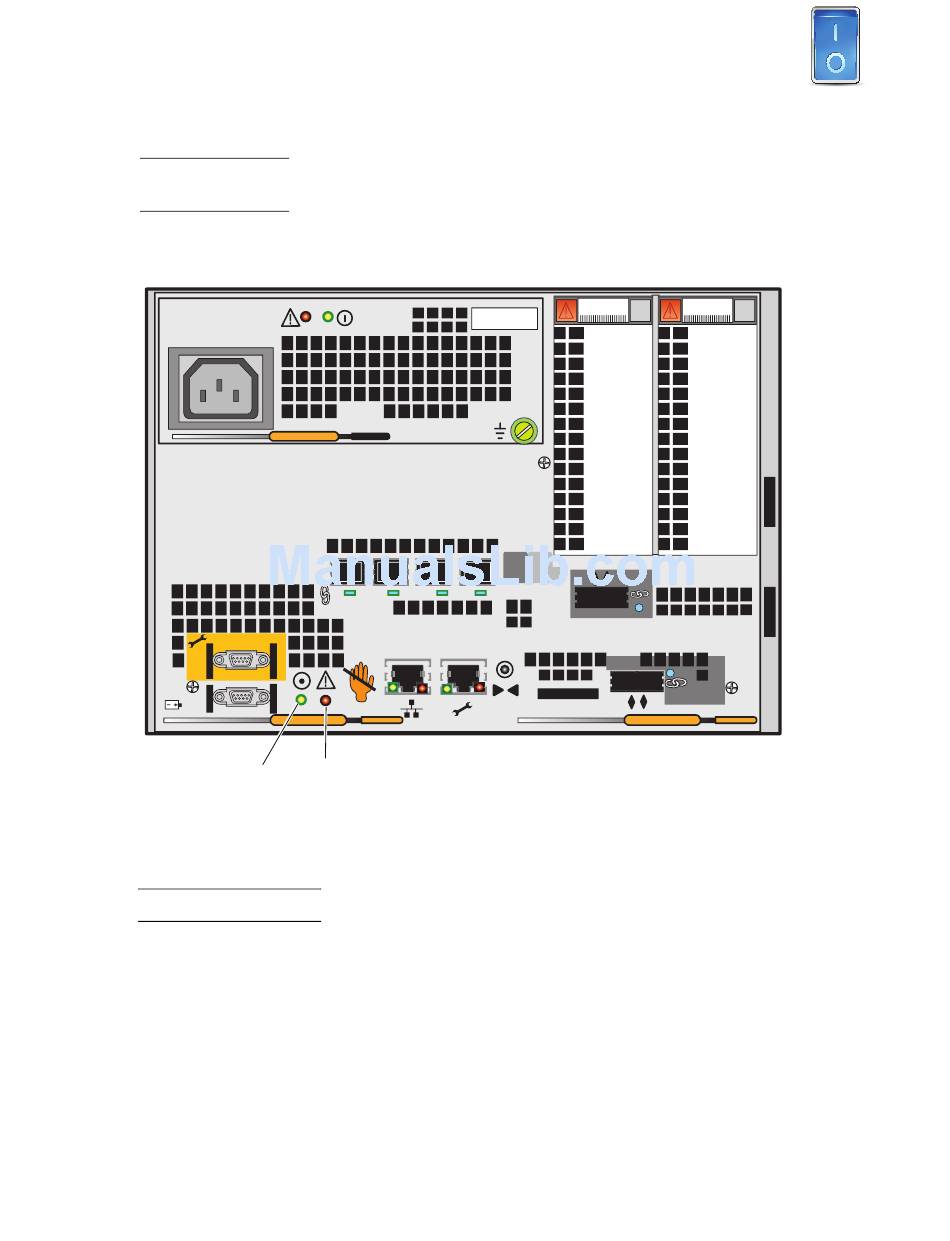

Disk processor enclosure rear
8Gb
fibre
4 5
2 3
6Gb
SAS
1 X4
6Gb SAS
0 X4
Verifying system status
A
VNX-000191
