Assembling Daes - EMC VNX5300 Block Installation Manual

3U, 15 3.5" drive Disk-array enclosure
0
SAS SAS
B
A

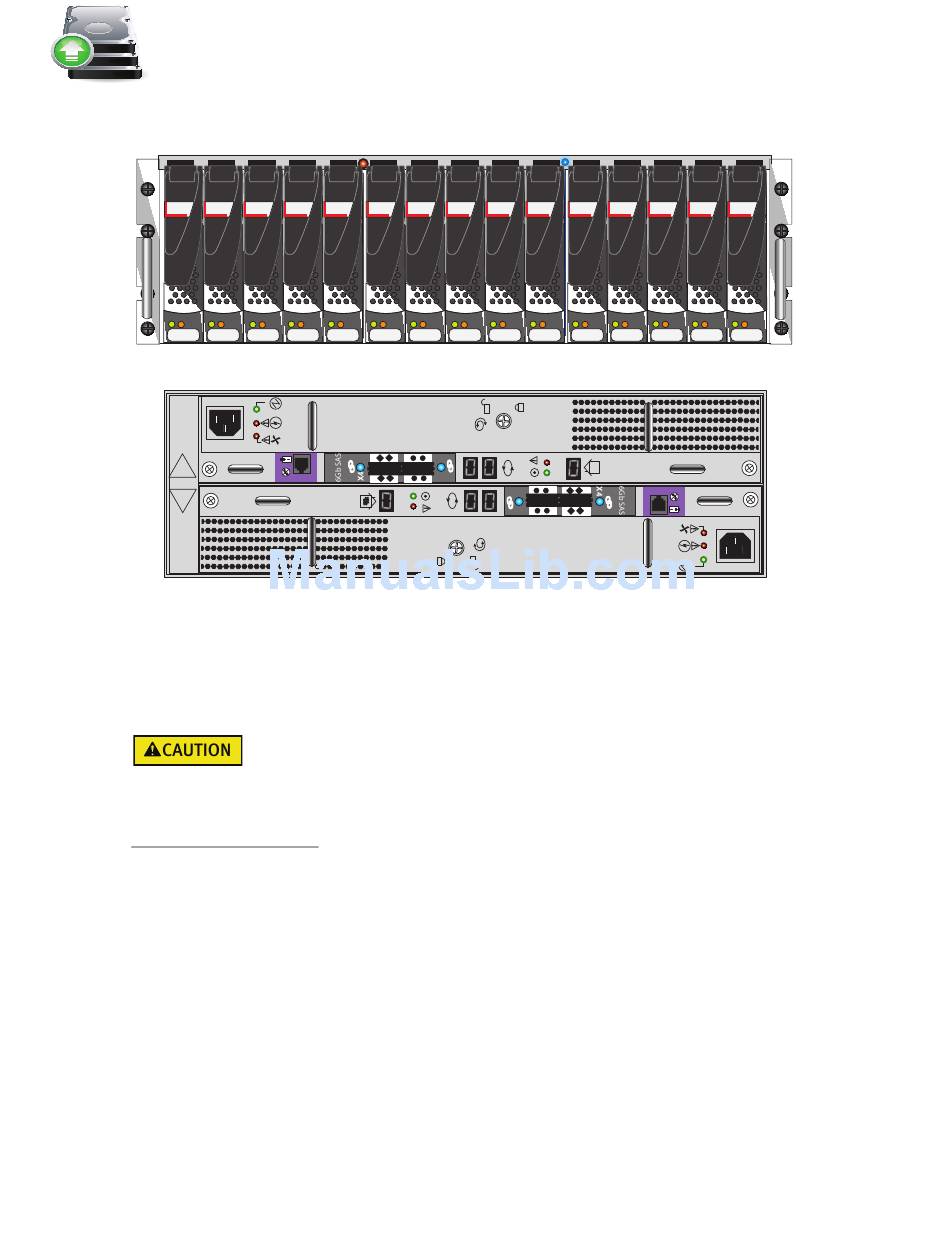

Figure 15 3U, 15 3.5" drive DAE

Assembling DAEs

The DAE is heavy and should be installed into a rack by two people. To avoid personal injury
and/or damage to the equipment, do not attempt to lift and install the enclosure into a rack
without a mechanical lift or help from another person.
1. Unpack the shipping containers.
2. Verify the contents. Each DAE should contain:
• Mounting screws
• Bezel and locking key
• SAS cable kit
• Power cable kit
• Rail kit
EMC VNX5300 Block Installation Guide
26
SAS SAS SAS SAS SAS SAS SAS SAS SAS SAS
#
VNX-000266
Front
14
SAS SAS SAS
Rear
