Installing the disk processor enclosure

There are two types of disk processor enclosures (DPEs). Your disk processor enclosure can be
either a 3U, 25 2.5" drive DPE or a 3U, 15 3.5" drive DPE as shown in

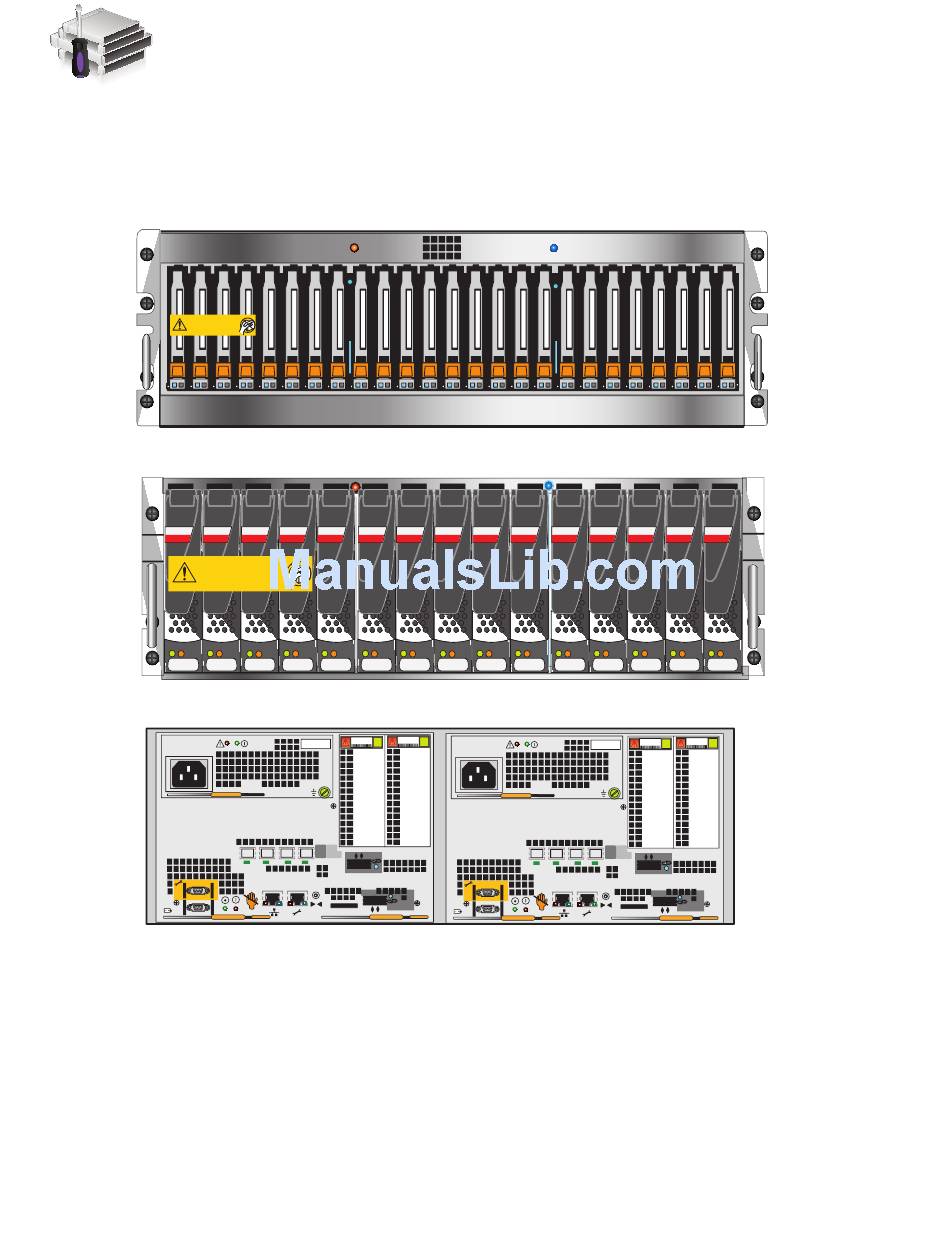

3U, 25 2.5" drive Disk processor enclosure front
0
Caution: Array Software on drives 0-3. Removing or relocating them
Will Make the Array Unusable
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
3U, 15 3.5" drive Disk processor enclosure front
0
SAS SAS
Caution: Array Software on drives 0-3. Removing or relocating them
Will Make the Array Unusable
3U, Disk processor enclosure Rear
B
Figure 4 Types of DPE(s)
