1
PANEL DESCRIPTION

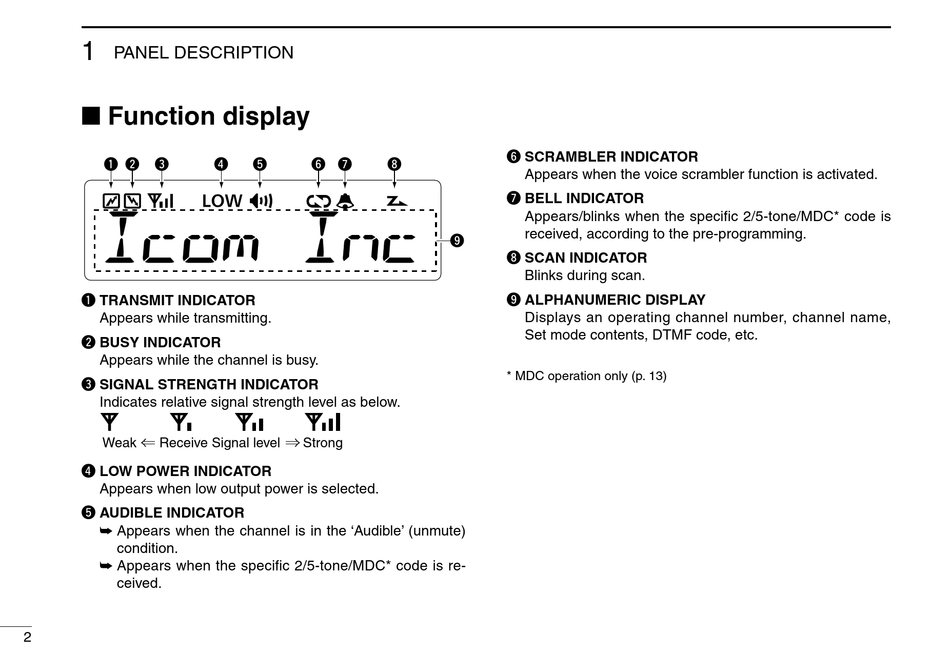

■ Function display

q w e
q TRANSMIT INDICATOR
Appears while transmitting.
w BUSY INDICATOR
Appears while the channel is busy.
e SIGNAL STRENGTH INDICATOR
Indicates relative signal strength level as below.
Weak Receive Signal level
r LOW .OWER INDICATOR
Appears when low output power is selected.
t AUDIBLE INDICATOR
➥ Appears when the channel is in the 'Audible' (unmute)
condition.
➥ Appears when the specific 2/5-tone/MDC* code is re-
ceived.
2
r t y u i
Strong
y SCRAMBLER INDICATOR
Appears when the voice scrambler function is activated.
u BELL INDICATOR
Appears/blinks when the specific 2/5-tone/MDC* code is
received, according to the pre-programming.
o
i SCAN INDICATOR
Blinks during scan.
o AL.HANUMERIC DIS.LAY
Displays an operating channel number, channel name,
Set mode contents, DTMF code, etc.
* MDC operation only (p. 13)
