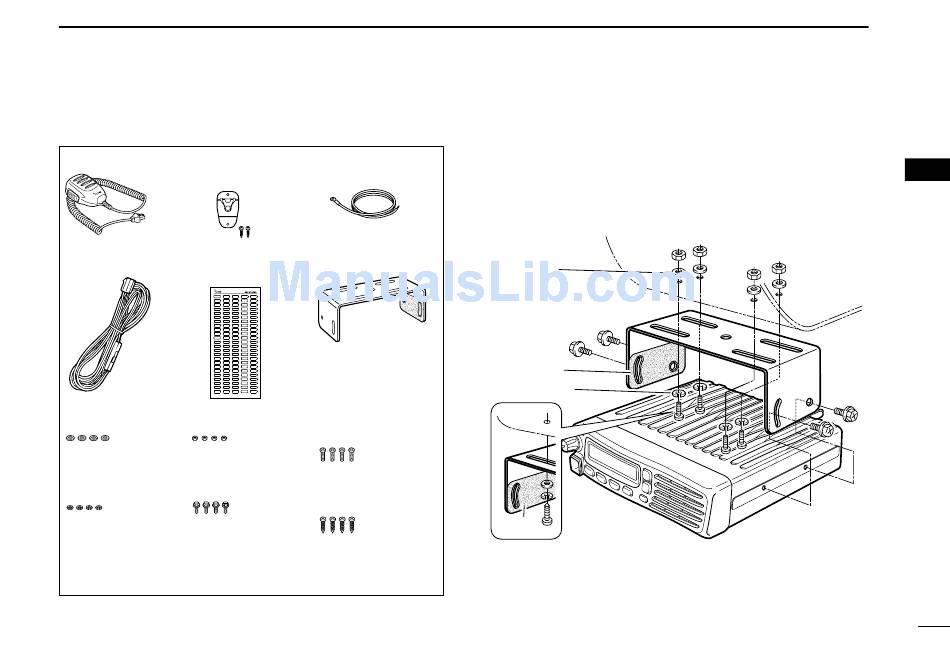

■ Supplied Accessories

Microphone
Microphone hanger
and screw set
DC power cable Function name
stickers*
Flat washers Nuts
Spring washers Bracket bolts
* Used for labelling the programmable function
keys according to their assinged functions.

■ Mounting the transceiver

The universal mounting bracket supplied with your trans-
Microphone
ceiver allows overhead mounting.
hanger cable
• Mount the transceiver securely with the 4 supplied screws
to a thick surface which can support more than 1.5 kg
(3.3 lb).
Mounting bracket
Flat washer
Spring washer
Mounting screws
(M5×12)
Self-tapping screws
(M5×20)
When using
self-tapping screws
CONNECTION AND MAINTENANCE
Felt*
Felt*
*Felts reduce the vibration effects.
