LifeShield home security system Setup Manual page 6

3

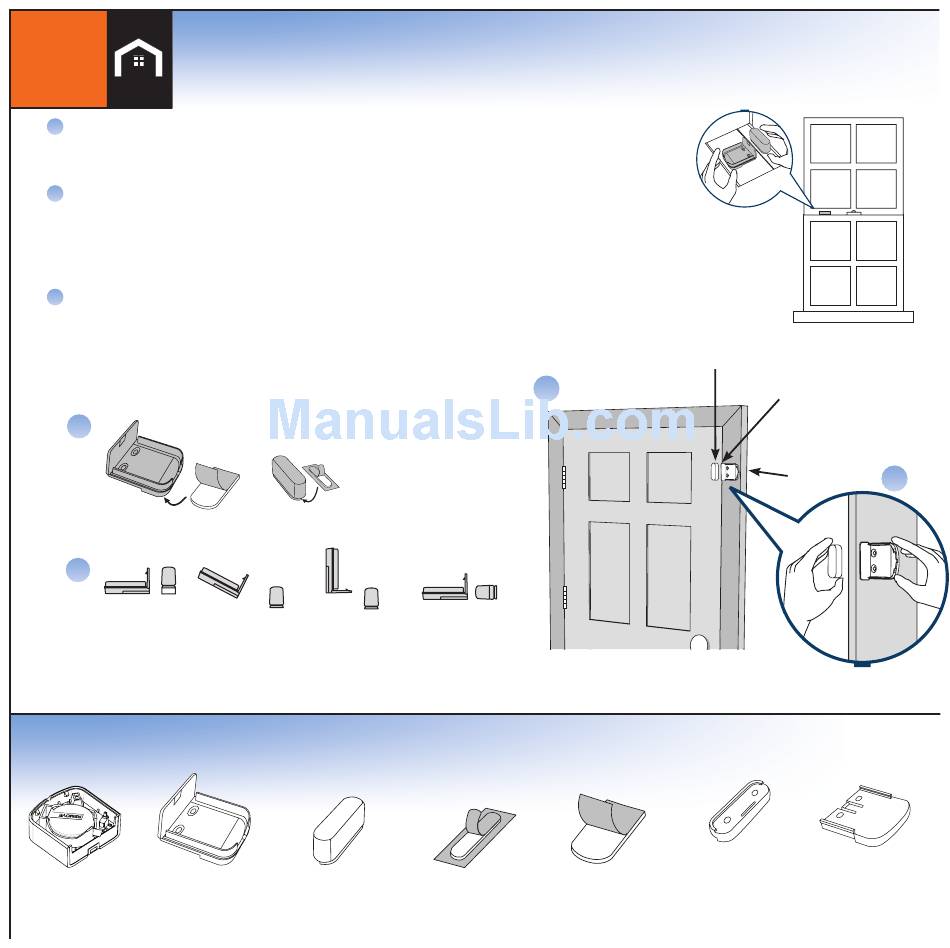

Place Preprogammed Sensors
A There are up to 3 preprogrammed sensors:*
• Main Door
nd
• 2 Door
• Window 1 (if included)
B Once you have determined the appropriate location and
orientation for the Bracket and magnet, attach them with
double-sided tape
*NOTE: WHEN POSSIBLE, PLACE THE BRACKET ON THE STATIONARY FRAME OF
DOOR OR WINDOW, AND PLACE THE MAGNET ON THE DOOR OR WINDOW ITSELF.
Various orientations between the Bracket and magnet may be used
C
as long as 3/4" distance is not exceeded.* See Example in Figures 1-4
*NOTE: SPACERS IN BOTTOM TRAY MAY BE USED ON THE
BRACKET OR MAGNET TO ADJUST ALIGNMENT.
B
C
Figure 1.
Level Orientation
Bracket
Sensor
*If you would like change any of the preprogrammed sensors see Step 4
5
Bracket
Magnet
Figure 2.
Figure 3.
Angled Orientation Perpendicular Orientation
S E N S O R
Magnet
A
Figure 4.
Perpendicular Orientation
K I T C O N T E N T S
Magnet Tape Bracket Tape
Magnet
3/4" spacing
Door Mounting
Magnet Spacer
(optional use)
Double-Hung Window
Window Mounting
B
Bracket
Bracket Spacer
(optional use)
