Add Water & Temperature (if included)
INSTALL THE SENSOR
Locate the Honeywell 5821 (red and white) box and remove the white wireless transmitter from the box.
A
B using a flat object such as a screwdriver, pry off the top cover of the transmitter and set aside
Press down on the mounting plate bracket release tab to remove (slide off) the mounting plate. Place the
C
mounting plate aside.

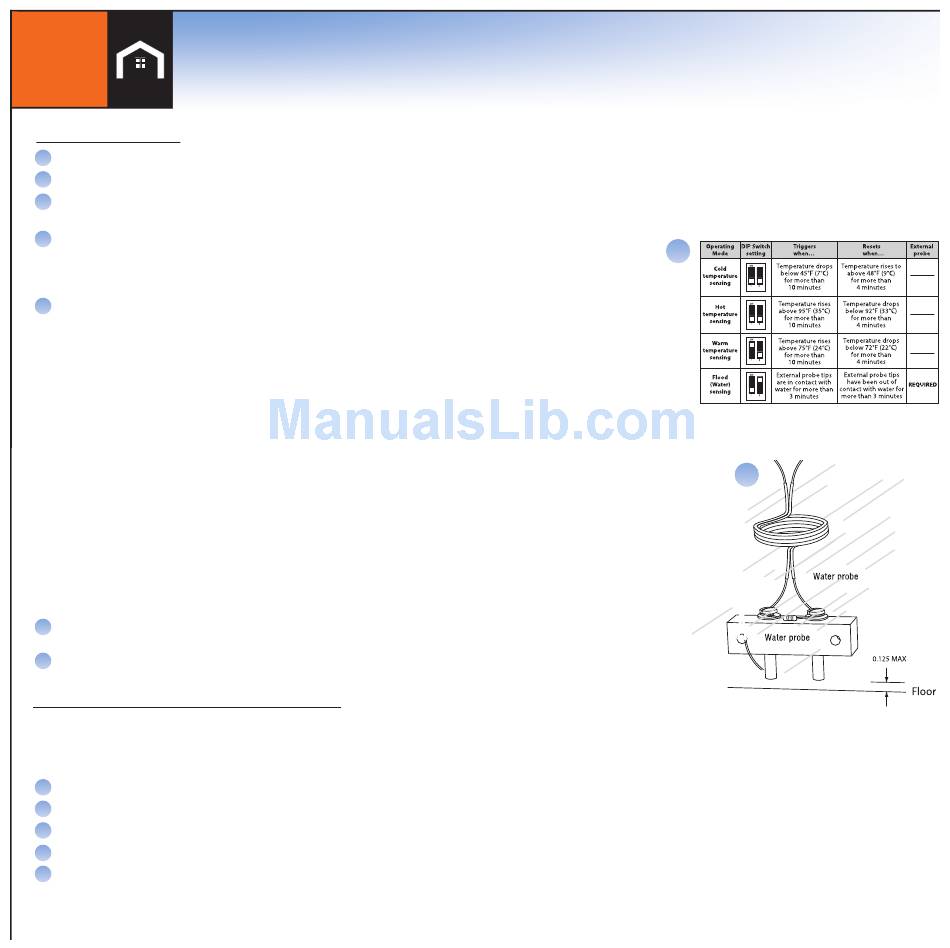

reference the table below to determine the desired sensing type (hot temp, Cold temp,
D
Warm temp or Flood [water]). using the tip of a paperclip (or similar object) push the white
(sliding) buttons of the diP switch (see Figure a) into the configuration that corresponds to
the desired sensing type.
Follow the appropriate steps associated with the sensing type of the sensor.
E
a. temperature sensor (hot, Warm or Cold) sensing: locate the mounting bracket where it will
be most suitable for temperature sensing (for example on a wall, ceiling, etc.). using either
the supplied screws or double-faced adhesive tape, secure the mounting bracket to a flat
surface (wall or ceiling).
b. Flood (water) sensing:
i. locate the water probe assembly (with wires attached as shown) and mount it near the
"baseline" surface (ex. floor) using the supplied double-faced tape or suitable wall mounting
screws (not supplied). it is recommended that the probe be mounted between 0 to 1/8" above
the baseline surface.
ii. loop the free end of the Water Probe wire through the back of the wireless transmitter (as shown
in Figure a) and connect the wire pair to the loop terminal block by inserting the wires (individually)
into the loop terminals and tightening the screws.
iii. determine the best location to install the mounting plate above the location where the Water
Probe has been installed, being careful not to position it too high (beyond the length of the wires
now connecting the water probe and wireless transmitter).
iv. using either the supplied screws or double-faced adhesive tape, secure the mounting bracket
to a flat surface (wall or ceiling).
install the Cr123 battery (supplied) into the wireless transmitter noting the correct orientation of the
F
positive (+) and negative (-) ends.
G Position the wireless transmitter over the mounting plate and slide the wireless transmitter securely
into place (until it "clicks").
ADD THE SENSOR TO THE LIFESHIELD SYSTEm
Once the Temperature and Flood (Water) Sensor is installed it must be "added" to
the LifeShield system in order to function. You will need a Handset (or Console) to add it.
Enter the Security menu on the Handset (or Console)
A On the Handset (or Console), Press MENU.
B Scroll to Security Setup, press SELECT and enter the master Code.
C
Scroll to Sensors, press SELECT.
D
Scroll to <Add New>, press SELECT.
E
Scroll to Environmental, press SELECT.
Continued on next page
*Note: Wherever Master Code is shoWN P
lease use your uNique Master Code FouNd iN the FroNt Cover oF this book
Note: Do not re-attach
cover until you have
added this device to the
LifeShield System
