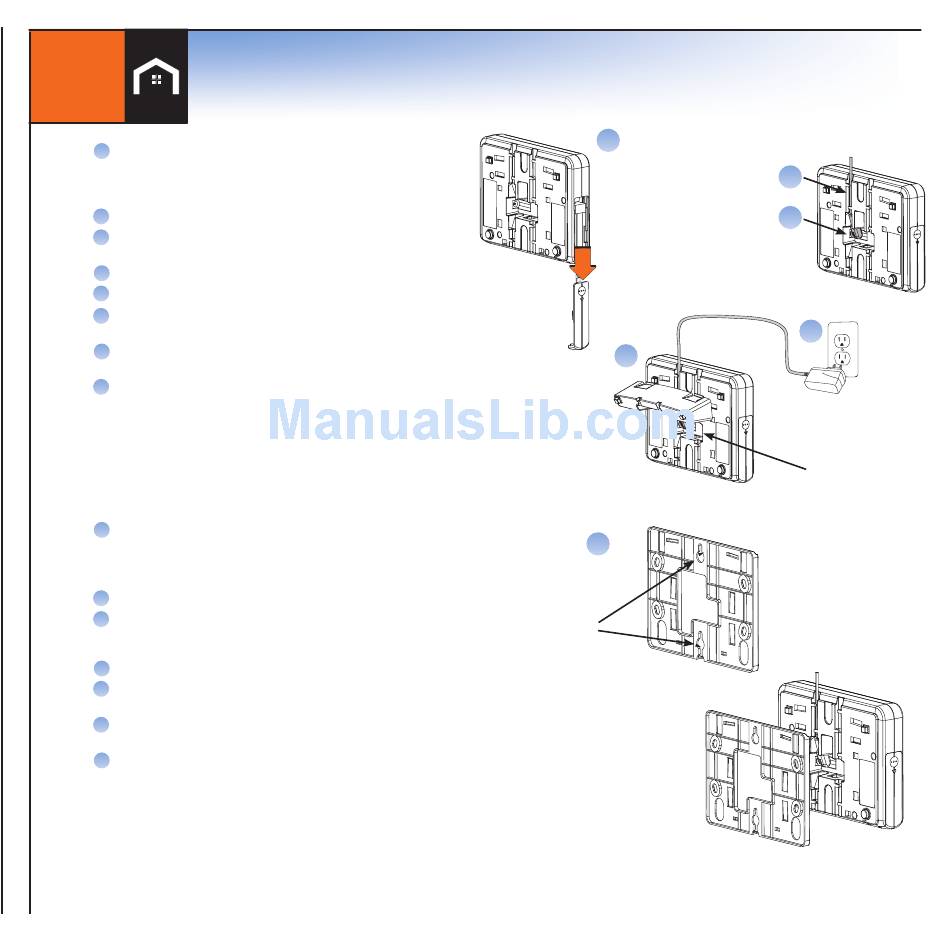

Connect Console
Put the Console near a frequently used door, ideally in a
A
different room than the Base/Cellular Gateway
*BUT NO MORE THAN 100 FEET FROM THE
BASE/CELLULAR GATEWAY
Remove the battery compartment door
B
Plug the battery pack into the plug receptacle and insert
C
the battery into the battery compartment
Snap on the battery compartment door
D
Connect power adapter to the back of the Console
E
Route the power adapter cord through the channel
F
toward the top of the Console
Snap the table stand provided in the kit onto
G
the back of the Console
Plug the power adapter into nearby electrical
H
wall outlet that is not controlled by a switch
Wall Mounting
To mount the Console to a wall, complete the following steps:
Select a wall location and use the mounting plate as a
A
template for marking the wall for placement.
NOTE: TO MOUNT THE CONSOLE ONTO AN ExISTING
TELEPHONE WALL PLATE (NOT INCLUDED) BEGIN AT STEP D).
Drill 3/16" holes and insert drywall anchors (provided) into the holes.
B
Screw the mounting screws into the anchors leaving the screws heads
C
exposed approximately 3/8" (may require adjustment to achieve a
tight fit)
Connect power adapter to the Console.
D
E
Route the power adapter cord through the channel of the wall
mounting plate.
Slide the Console with mounting plate onto the wall screws
F
or phone mounting plate.
Plug the power adapter into nearby electrical wall outlet that is not
G
controlled by a switch.
Your Console has been preprogrammed with your system. No additional steps are necessary.
B
Battery Compartment
Console Back View
G
Power Cord
A
Mark Spot
On The Wall
F
E
H
Table Stand
Optional: Connect to
the telephone line here
(not included)
4
