LifeShield home security system Setup Manual page 15

12

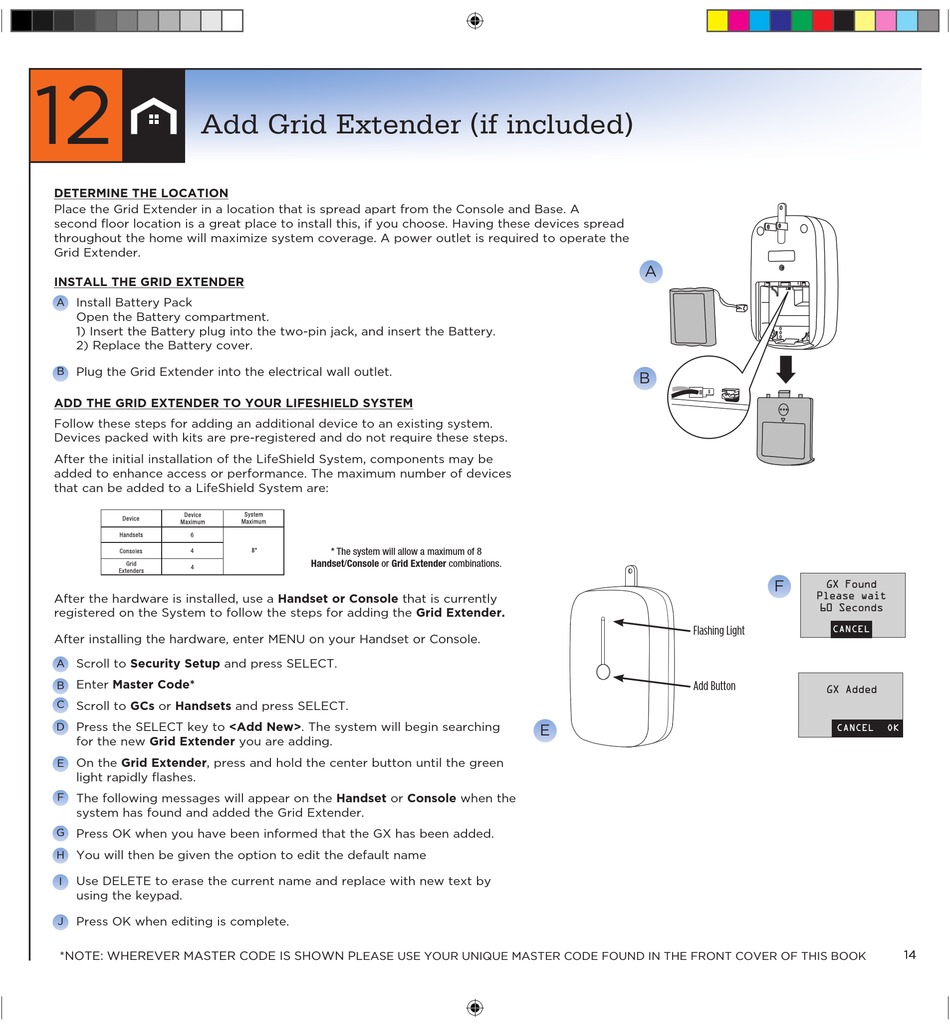

Add Grid Extender (if included)
DETERmINE THE LOCATION
Place the Grid Extender in a location that is spread apart from the Console and Base. A
second floor location is a great place to install this, if you choose. Having these devices spread
throughout the home will maximize system coverage. A power outlet is required to operate the
Grid Extender.
INSTALL THE GRID ExTENDER
Install Battery Pack
A
Open the Battery compartment.
1) Insert the Battery plug into the two-pin jack, and insert the Battery.
2) Replace the Battery cover.
Plug the Grid extender into the electrical wall outlet.
B
ADD THE GRID ExTENDER TO YOUR LIFESHIELD SYSTEm
Follow these steps for adding an additional device to an existing system.
Devices packed with kits are pre-registered and do not require these steps.
After the initial installation of the LifeShield System, components may be
added to enhance access or performance. The maximum number of devices
that can be added to a LifeShield System are:
* The system will allow a maximum of 8
After the hardware is installed, use a Handset or Console that is currently Handset/Console or Grid Extender combinations.
registered on the System to follow the steps for adding the Grid Extender.
after installing the hardware, enter MeNu on your handset or Console.
Scroll to Security Setup and press SELECT.
A
Enter master Code*
B
C Scroll to GCs or Handsets and press SELECT.
Press the SELECT key to <Add New>. The system will begin searching
D
for the new Grid Extender you are adding.
On the Grid Extender, press and hold the center button until the green
E
light rapidly flashes.
F The following messages will appear on the Handset or Console when the
GX Found
system has found and added the Grid Extender.
Please wait
60 Seconds
G Press OK when you have been informed that the Gx has been added.
CANCEL
H You will then be given the option to edit the default name
Use DELETE to erase the current name and replace with new text by
I
using the keypad.
GX Added
Press OK when editing is complete.
J
CANCEL OK
*Note: Wherever Master Code is shoWN P
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
GX Found
Please wait
60 Seconds
CANCEL
GX Added
CANCEL OK
lease use your uNique Master Code FouNd iN the FroNt Cover oF this book
A
* The system will allow a maximum of 8
Handset/Console or Grid Extender combinations.
B
Please wait
Flashing Light
60 Seconds
Add Button
E
F
GX Found
Please wait
GX Found 60 Seconds
CANCEL
CANCEL
GX Added
GX Added
CANCEL
CANCEL OK
OK
14 14
