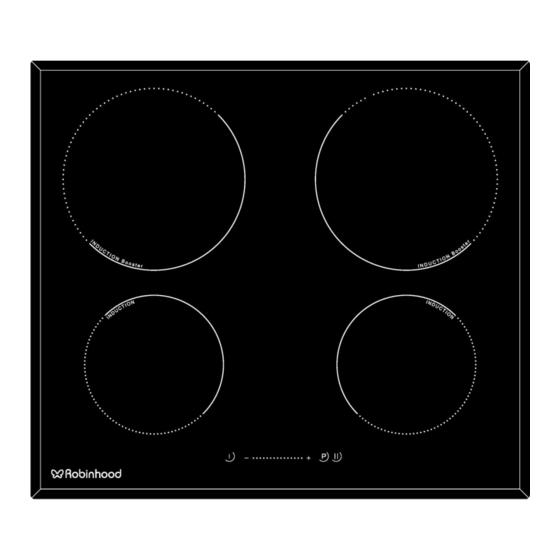

- Page 1 Issue 4 Description: Robinhood Ceramic Induction Touch Control Cooktop 60cm Model Numbers: HIA604TFG...
- Page 2 Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
- Page 3 Installation - continued Built in induction cooktop cutout dimensions. HIA604TFG A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) H (mm) Installing the foam gasket Before inserting the appliance into the opening in the kitchen benchtop, the supplied foam gasket must be attached to the lower side of the glass ceramic (glass) cooktop between the benchtop and cooktop.
- Page 4 Installation - continued Installation procedure. Worktop must be placed absolutely horizontal. • Suitably protect the edges of the cut aperture. • Connect the cooktop to the mains power supply (see instructions for the connection of the cooktop to the mains power supply).
- Page 5 Installation - continued Technical information Type HIA60TFG Width 600mm Rated voltage 220-240 V~ or 380-415 V 2N~, 50/60 Hz Type of switch Electronic sensors Cooking zones ( Ø, mm/W ) Forward left 160, 1,4 Rear left 200, 2,3 (P=3,0) Rear right 200, 2,3 (P=3,0) Forward right 160, 1,4...
- Page 6 Installation - continued Appropriate cookware for induction hotplates Induction hotplate will function perfectly only if appropriate cookware is used. Dish should be in the middle of the hotplate during cooking. The appropriate cookware is the one which enables induction, for example steel, enamel or steel alloy cookware. Pots made from steel alloy with copper or aluminium bottom, or glass pots are inappropriate.
- Page 7 Installation - continued Power regulation Heating power of the hotplates may be set at nine different levels. The following chart indicates illustrative use of each power setting. Power Purpose Setting Off, using remaining heat Maintaining warm food, slow simmer of smaller quantities Slow simmer (continuation of cooking after a powerful start-up) Slow cooking (continuation) of larger quantities, roasting larger chunks Roasting, browning...
- Page 8 Instructions for use and maintenance Ceramic Glass Cooktop Induction hotplate front left Induction hotplate rear left Induction hotplate rear right Induction hotplate front right Cooktop control panel Cooktop control elements ON/OFF sensor ON/OFF indicator LED Slide control sensor . Slide control indicator LED’s Extra strong power setting ON/OFF sensor Pause setting ON/OFF sensor .
- Page 9 Instructions for use and maintenance Turning hotplates on After turning the hob on using the ON/OFF sensor (A), within the next 20 seconds start one of the hotplates. Touching the desired hotplate sensor (E), its relevant power indicator indicates »0« and decimal dot (E ) changes from flashing fixed.
- Page 10 Instructions for use and maintenance Permanent unlock Therefore it is necessary that the cooking zone display of the front right cooking zone and the (C) key are pressed simultaneously followed by pressing the (C) key again. This operational procedure must be completed within 10sec and no other key than the one described must be pressed. Then control panel remains in Off-Mode (all Displays are black);...
- Page 11 Instructions for use and maintenance Power setting Maximum power cooking time (min.) Safety switch off Power setting Hours lapse prior safety switch off Maximum continuous operation of a particular hotplate is limited, and the duration is displayed in the above chart. When the hotplate is switched off by the safety mechanism, the indicator displays symbols “0”, or “H”...
- Page 12 Instructions for use and maintenance Checking remaining cooking time • Last set timer is always displayed . • Select cooking zone. The residual time of selected cooking zone will be displayed on timer’ Turning time off When preset time elapses, a beep signals the end, and the hotplate is switched off. Switch off the alarm by pressing the sensor of switch-off timer (F),or it switches off automatically after 2 minutes.
- Page 13 Instructions for use and maintenance Getting in configuration/deleting menu‟ • Hold the “Booster” key pressed (C). • Press all keys of cooking zones’ selection anticlockwise, starting off with: • the front right one for VI4740229F • the rear right one for VI3600229F •...
- Page 14 Safety functions and error display Safety functions and error display ERROR CODE ERROR DESCRIPTION INSTRUCTION MANUAL Temperature limits are exceeded. contact the AUTHORIZED SERVICE CENTRE FOR TECHNICAL ASSISTANCE - SPECIFYING THE ERROR CODE Unsuitable pot. The error is automatically cancelled after 8sec and the cooking zone can be used again.
- Page 15 Cleaning & maintenance Cleaning and maintenance of ceramic glass cooktop Ceramic glass hob should be cleaned only when completely cooled down, preferably after each use, otherwise even the slightest stains remaining after cooking may burn into the hob surface with each following use. For regular maintenance of ceramic-glass hob use special cleansing agents, produced in such way to create protective film upon the surface.
- Page 16 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Particular areas of the cooktop surface (adjacent to the hotplates) are hot during operation. Hot oil ignites readily, so be sure have the preparation of such food (fries) under constant control. Hotplates may not be left in operation empty, without any dishes on top.
- Page 17 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
- Page 18 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
