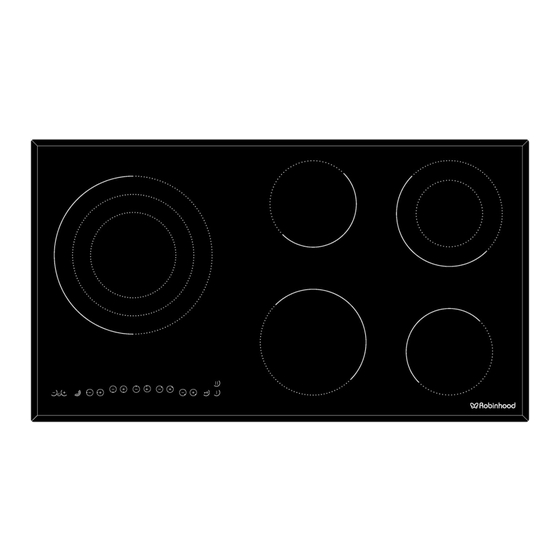

- Page 1 Issue 3 Description: Robinhood Ceramic Touch Control Cooktop 90cm Model Numbers: HEA905TFG...
-
Page 2: Warning And Safety Information
Warning and safety information This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 3 Installation - continued Built in induction cooktop cutout dimensions. HEA905TFG A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) Installing the foam gasket Before inserting the appliance into the opening in the kitchen benchtop, the supplied foam gasket must be attached to the lower side of the glass ceramic (glass) cooktop between the benchtop and cooktop.
- Page 4 Installation - continued Installation procedure. Worktop must be placed absolutely horizontal. • Suitably protect the edges of the cut aperture. • Connect the cooktop to the mains power supply (see instructions for the connection of the cooktop to the mains power supply).
- Page 5 Installation - continued Technical information Type HEA905TFG Width 900mm Rated voltage 220-240 V~ or 380-415 V 2N~, 50/60 Hz Type of switch Electronic sensors Cooking zones ( Ø, mm/W ) Forward left 270-210-140 / 2.7-1.05-0.9 Rear left 140 / 1.2 Forward central 180 / 1.8...
- Page 6 Installation - continued Important warnings regarding the glass ceramic cooktop • Cooking zone reaches the selected power level or temperature very quickly; however, the area surrounding the cooking zones remains relatively cool. • The cooktop is resistant to temperature changes. •...
- Page 7 Installation - continued Energy saving tips When buying cookware be careful in selecting size: pot diameter usually refers to the top edge of the dish, which is often larger than the dish bottom. Use such dish size to accommodate the quantity of food to be prepared.
- Page 8 Instructions for use and maintenance Ceramic Glass Cooktop Hi-light hotplate front left Hi-light hotplate central rear Hi-light hotplate rear right Hi-light hotplate front right Hi-light hotplate central front Cooktop control panel Cooktop control elements On/Off key Safety lock key Safety lock pilot light Pause /Recall key Pause / Recall pilot light “More”...
- Page 9 Instructions for use and maintenance Turning hotplates off • The burner must be on. • Bring the setting down to “0” by means of the “-“ key (E). After 3 seconds, the burner goes off automatically. Turning off the burner instantly: •...
- Page 10 Instructions for use and maintenance Enabling the timer Select a cooking zone and select the required power setting (from 1 to 9). Press the “+” and “-“ keys (L/I) simultaneously. The timer display (M) will show “30”. The egg timer pilot light (M ) is blinking.
- Page 11 Instructions for use and maintenance Automatic pre-heating This automatic device facilitates the cooking process because you do not need to supervise the whole cooking cycle. This function preheats the burner on maximum power in order to bring it rapidly up to the required temperature. After a given time interval, the power level returns spontaneously to the established setting.
-
Page 12: Safety Functions And Error Display
Safety functions and error display Safety functions and error display ERROR CODE ERROR DESCRIPTION INSTRUCTION MANUAL U400 Wrong connection of control; 1)CONTACT AUTHORISED CENTER FOR directly registered at RHE or TECHNICAL ASSISTANCE - SPECIFYING THE informed per LIN with induction. ERROR CODE 2) Contact an electrician to check your home supply mains. -
Page 13: Cleaning And Maintenance
Cleaning & maintenance Cleaning and maintenance of ceramic glass cooktop Ceramic glass cooktop should be cleaned only when completely cooled down, preferably after each use, otherwise even the slightest stains remaining after cooking may burn into the cooktop surface with each following use. For regular maintenance of ceramic-glass cooktop use special cleansing agents, produced in such way to create protective film upon the surface. - Page 14 Important information The appliance may be built-in and connected to the power supply only by a qualified technician. Particular areas of the cooktop surface (adjacent to the hotplates) are hot during operation. Hot oil ignites readily, so be sure have the preparation of such food (fries) under constant control. Hotplates may not be left in operation empty, without any dishes on top.
- Page 15 The product was used outdoors. 2. All Robinhood rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. 3. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
- Page 16 The product was not used, cleaned or cared for in accordance with our instructions. The product was used outdoors. All Robinhood rangehoods are suitable for indoor use only, and not suitable over BBQs or charcoal cookers designed for outdoor use.
