Summary of Contents for ROBINHOOD HIC604TFG

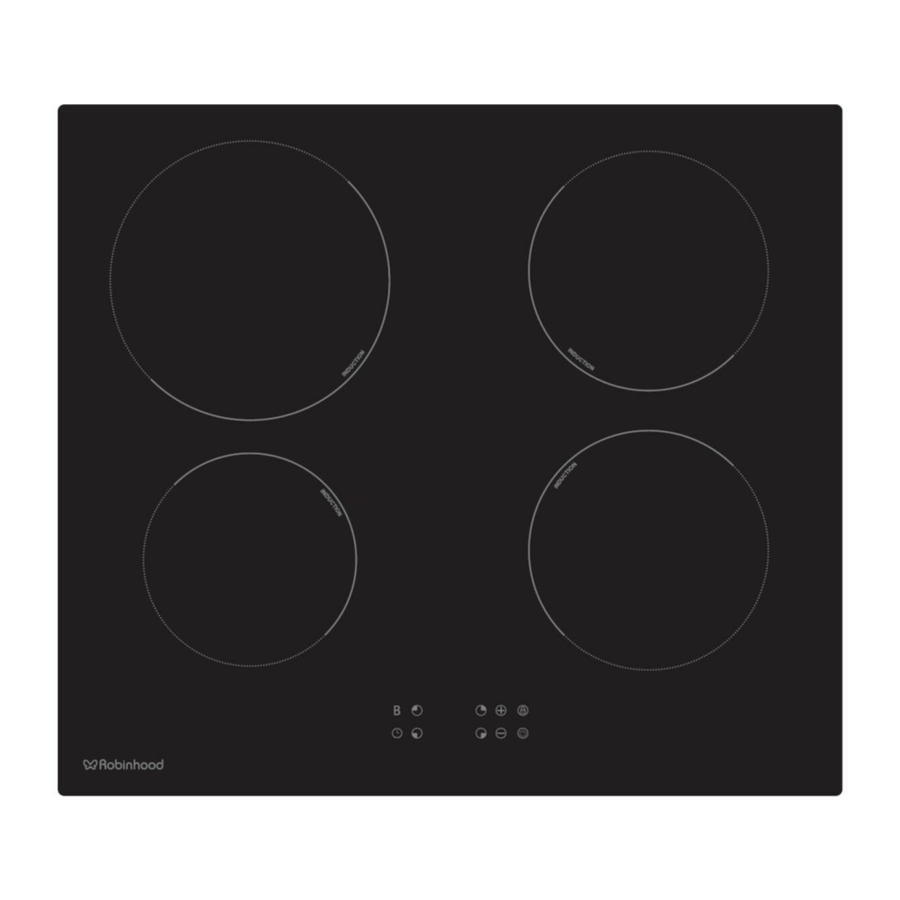

- Page 1 Installation and Operating Instructions Issue 1 Description: ROBINHOOD 60CM INDUCTION COOKTOP Model Number: HIC604TFG...
-
Page 2: Table Of Contents
Due to continual product development, Robinhood reserves the right to alter specifications or appearances without notice. Important Safety Instructions ..........................1 Installation ................................3... -
Page 3: Important Safety Instructions
Important Safety Instructions • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 4 Installation Warnings • The appliance must be installed by a qualified person in accordance with local and national building regulations. • Panels and furniture lining of the kitchen cabinet receiving the cooktop must be treated with temperature resistant adhesives 80°C (otherwise they may become discolored or deformed due to inadequate temperature resistance).
-
Page 5: Installation
Note: The safety distance between the sides of the hob and the inner surfaces of the worktop should be at least 3mm. HIC604TFG L (mm) W (mm) - Page 6 Installation Note: There are ventilation holes around outside of the cooktop. Ensure that these holes are not blocked by the bench when you install the cooktop. Be aware that any glue used on the bench must be resistant to a minimum temperature of 150°C. The rear wall, adjacent and surrounding surfaces must therefore be able to withstand a temperature of 90°C.
-
Page 7: Appliance Details
General Information Before installing and operating the cooktop, carefully read the following important information regarding installation safety and maintenance. Keep this information booklet accessible for further consultations. Specifications Model HIC604TFG Cooking Zones 4 Zones Supply Voltage 220-240V~ 50 Hz Rated Power 7200W Product Size D×W×H... -
Page 8: Electrical Connection
Electrical connection LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by a licensed electrician and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage, for which the manufacturer accepts no responsibility. Electrical Installation Before carrying out the connection to the power supply, the voltage rating of the appliance (stamped on the appliance identification plate) must be checked for correspondence to the available mains supply voltage, and the mains electric wiring should be capable of handling the oven’s power rating (also indicated on the identification plate). -
Page 9: Operating Instructions
Operating Instructions Touch Controls • The controls respond to touch, so you do not need to apply any pressure. • Use the pad of your finger, not the tip. • You will hear a beep each time a touch is registered. •... - Page 10 Operating Instructions Using the Cooktop When the power is connected you will hear a beep and all the lights will come on for one second and then go out. This indicates that the cooktop has entered standby mode. Turn the cooktop on by touching the On / Off control.
- Page 11 Operating Instructions Safety Lock The controls can be locked to prevent accidental use and to protect children. When the controls are locked, all buttons except for the On/Off button are disabled. To lock the controls, press the lock button. The timer indicator will display “Lo”. To unlock the controls, press and hold the lock button while the cooktop is turned on.
- Page 12 Operating Instructions Setting the Timer to turn one or more Cooking Zones Off Touch the “+” or “-“ control of the cooking zone you wish to set the timer for. Set the timer as described on the previous page. A red dot next to the power level for the corresponding cooking zone will illuminate to indicate that the timer has been set for it.
-
Page 13: Cleaning And Maintenance
Cleaning and Maintenance Cleaning Problem Resolution Important • When the power to the cooktop is switched off, there will be no ‘hot surface’ indication, but the cooking 1. Switch the power to the cooktop zone may still be hot! Take extreme off. - Page 14 Cleaning and Maintenance Troubleshooting Problem Possible causes What to do Make sure the cooktop is connected to the power supply and that it is switched on. The cooktop cannot be Check whether there is a power outage in No power. turned on.
-
Page 15: Warranty Certificate (New Zealand)
The following conditions apply in respect of the warranty given in this certificate: Monaco Corporation Limited (“Monaco”) warrants the following Robinhood products against manufacturing defects and faulty materials, under normal use and subject to the exclusions in this certificate, for a period of: •... -
Page 16: Warranty Certificate (Australia)
• The product was used outdoors. All Robinhood Rangehoods are suitable for indoor use only and not suitable over BBQs or charcoal cookers designed for outdoor use. In addition, this warranty does not extend to damage or defects which in our opinion, directly or indirectly arise from or are due to: exposing the product to acidic or corrosive materials or chemicals such as dyes, solvents, denture cleaner or acetone;...
